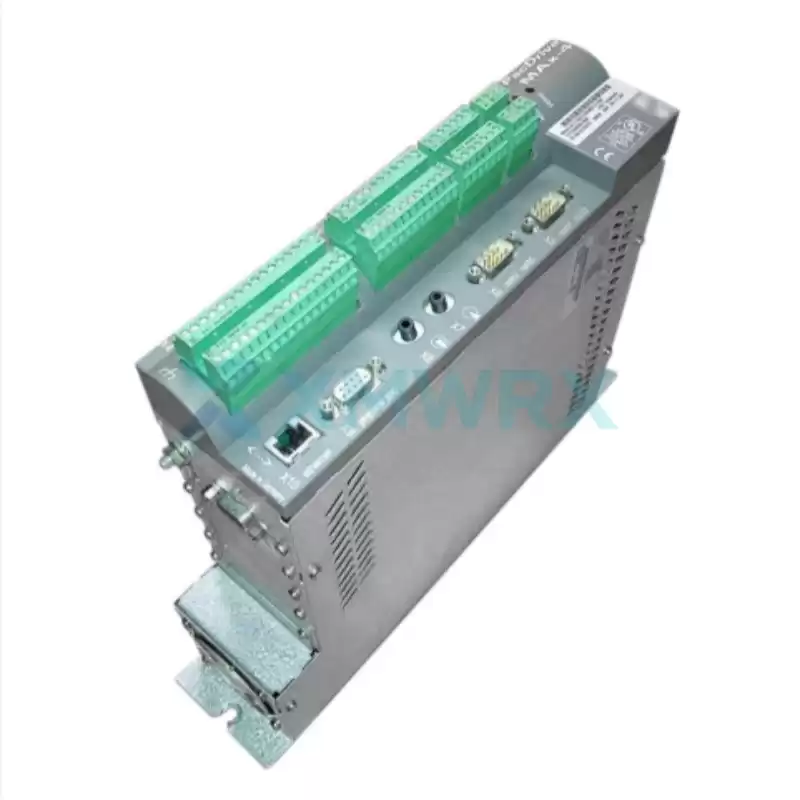

MAX-4/11/03/128/99/1/1/00 It is the Schneider ELAU PacDrive MAX-4 series integrated motion controller, which integrates PLC logic operation and servo drive control. It is an original German industrial control module that supports up to 99-axis servo linkage, has built-in 128KB program storage, and is equipped with SERCOS high-speed real-time bus. It can be matched with the full range of VDM and VCA servo drives and is widely applicable to multi-axis synchronous automation equipment such as high-speed packaging, printing, and pharmaceutical filling. The integrated design simplifies control cabinet wiring and combines logic control and high-precision motion calculation capabilities.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Frequently Asked Questions
Q: What servo bus does the MAX-4/11/03/128/99/1/1/00 use, and which servo drives can it be paired with?
A: The core servo bus is SERCOS III, which is perfectly compatible with the VDM01D, VDM01U, and VCA07/VCA09 series of ELAU servo drives. The entire system has extremely low multi-axis synchronization error
Q: What motion processes does the MAX-4/11/03/128/99/1/1/00 support, and what is its programming standard?
A: It follows the IEC61131-3 international PLC programming standard and supports high-speed and precision motion processes such as electronic cams, electronic gears, flying shear marking, dynamic tension control, and spindle synchronous cutting.
Q: What are the installation environment restrictions for MAX-4/11/03/128/99/1/1/00?
A: It is designed for vertical installation within a DIN rail cabinet, with an IP20 protection rating. It can only be placed inside an electrical control cabinet. The operating ambient temperature is 0~50℃, and the environment must be dry, free from condensation, dust, and moisture.
