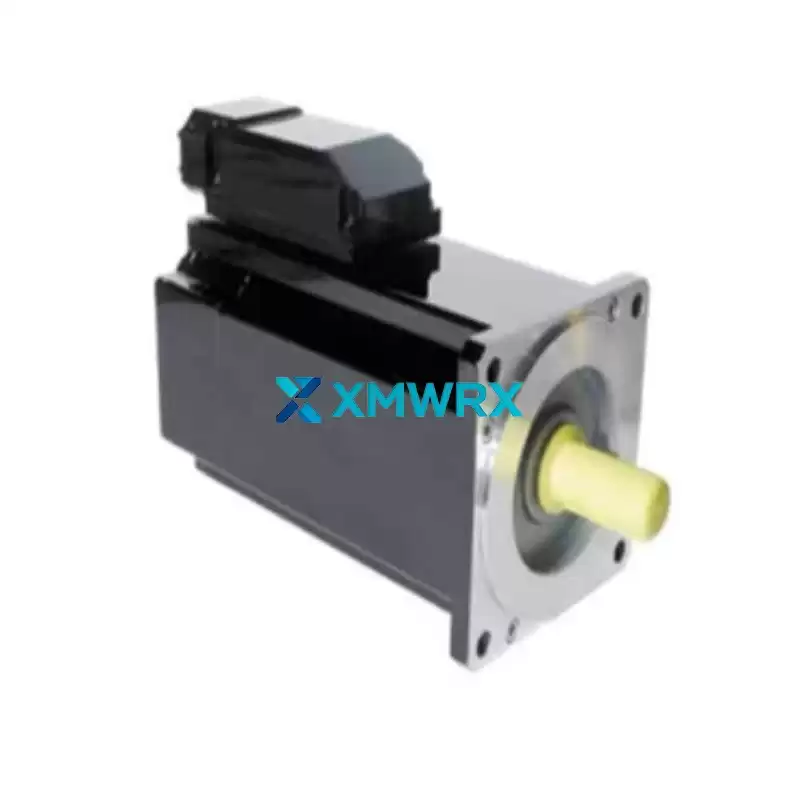

Schneider ELAU SM140-30-370-P1-45-S1-B0 Servo Motor

Core Features

• ✓ Interface: Integrated power + encoder composite plug, direct connection to ELAU driver.
• ✓ Low rotor inertia: Fast dynamic response, supports electronic cam, flying shear, and synchronous following.
• ✓ Installation: Standard B3 flange horizontal installation
• ✓ Environment: -20℃ to +40℃, dustproof and waterproof IP65, suitable for damp and oily workshop conditions.

Q: What are the main applications and compatible drives for the SM140-30-370-P1-45-S1-B0?

A: It is compatible with the ELAU PacDrive series drives, which are mainly used for multi-axis synchronous control and are widely used in high-precision applications such as packaging machinery, machine tools, and industrial robots.

Q: What do the model codes mean?

A: 140 represents the flange size, 30 represents the rated speed, 370 represents the core length, P1 is a multi-turn absolute encoder, 45 represents the shaft diameter, S1 represents the standard winding, and B0 represents no brake.

Q: Do you offer a warranty?

A: Of course, all our products come with a one-year warranty.
