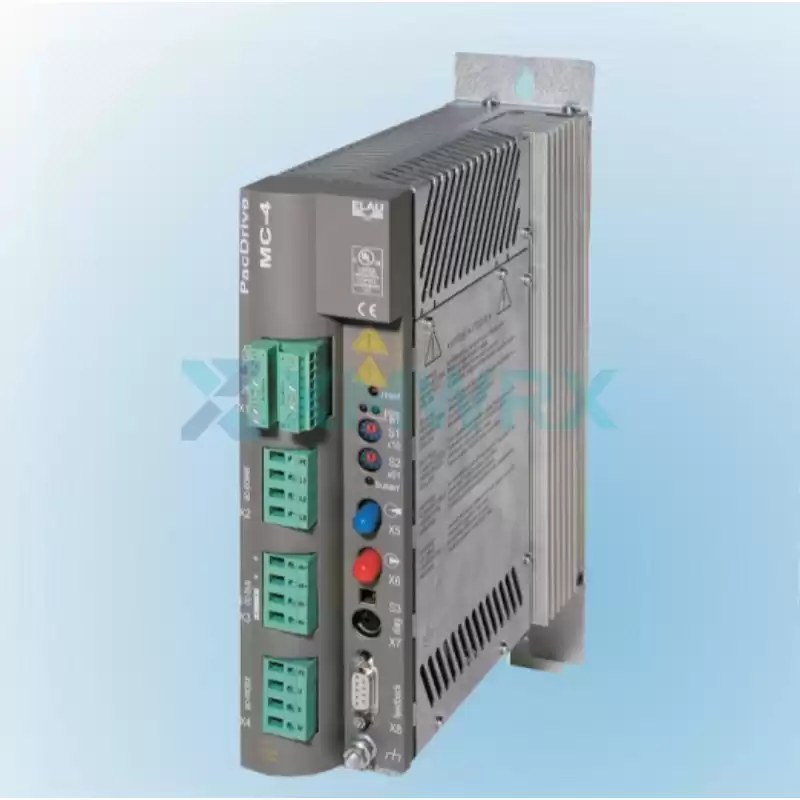

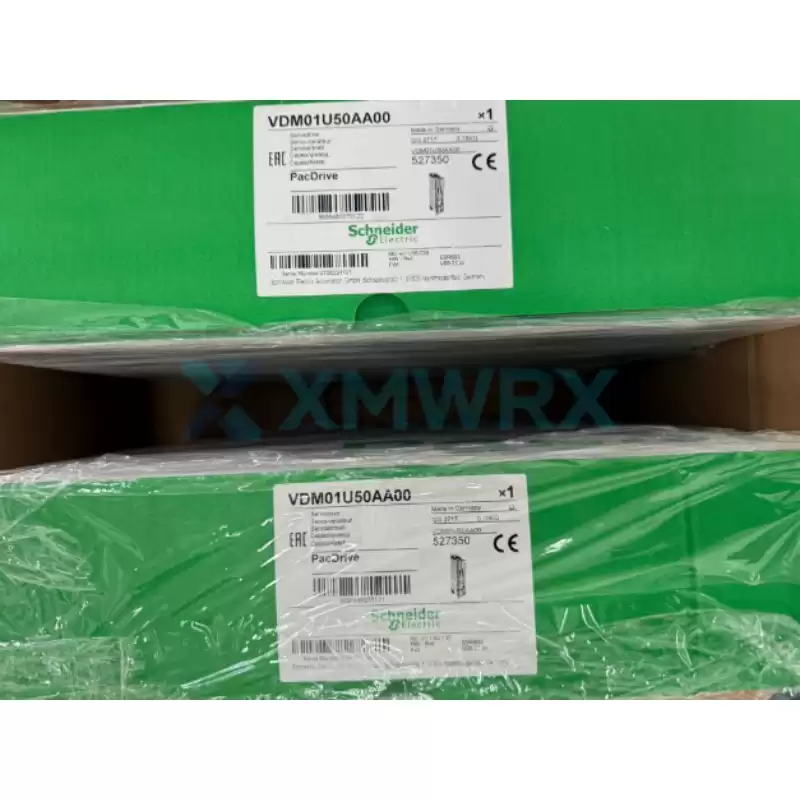

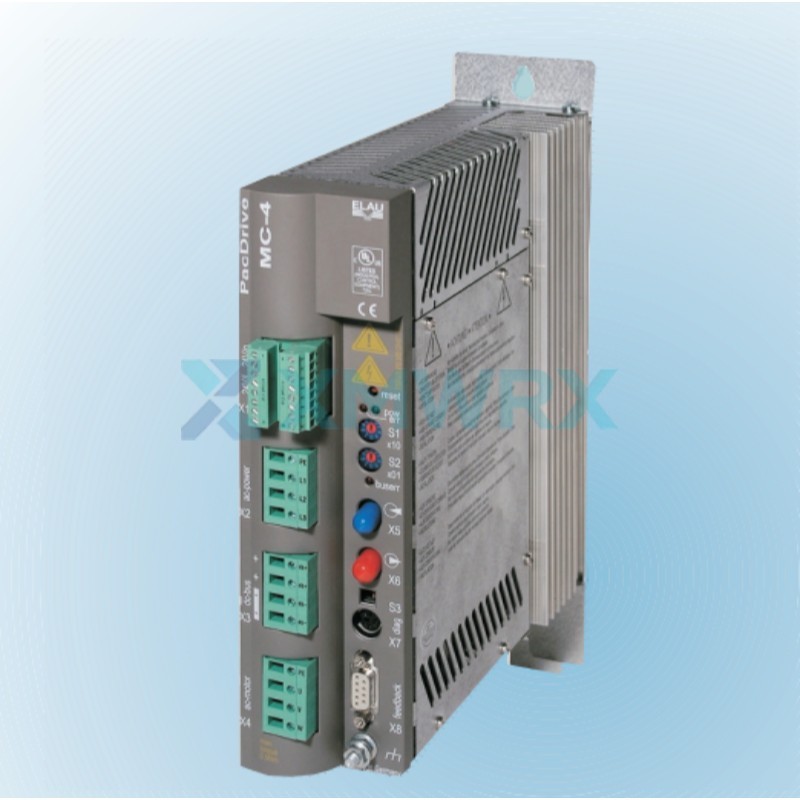

Schneider VDM01U50AA00 servo driver MC-4/11/05/230

Core Features

• ✓  Multi-axis synchronization: When used with C600/C200 controllers, it enables complex movements such as electronic gears, electronic cams, and synchronous cutting.
• ✓  Automatic motor identification: Automatically identifies motor parameters upon power-on, simplifying debugging.
• ✓  Safety features: Includes safety input (driver enable) and supports emergency stop safety circuit.
• ✓  Multiple protections: overcurrent, overvoltage, overheat, encoder failure, position deviation protection, etc.
•

Q: Q: What are the rated specifications and overload capacity of the MC-4/11/05/230?

A: Three-phase 230V input, rated output 5A, supports 250% short-time overload, integrates SERCOS/CANopen bus, and is compatible with high-speed synchronization and electronic cam technology.

Q: What are the dimensions of this drive?

A: The dimensions are 36×150×210mm, standard cabinet mounting specifications.

Q: What are the product's protection rating and installation requirements?

A: The protection rating is IP20, and it is only suitable for use inside control cabinets.
