Product Name
SCIB Lithium Titanate LTO 12V 100Ah Battery For Caravan Camping Cars
Highlights
-
High power / excellent abuse tolerance
-
Super Safety with built-in integrated BMS protects the cell from overcharge, over-discharge, over current, short circuit .
-
High energy efficiency: the yield is more than 95%
-
LCD/Monitor functions are optional
-
12V 50AH/80AH/100AH/120AH/200AH are optional
-
Super long life: 25000 cycles at 100% DOD, 30000 cycles at 80% DOD
-
3 years warranty,extendable to 5 years

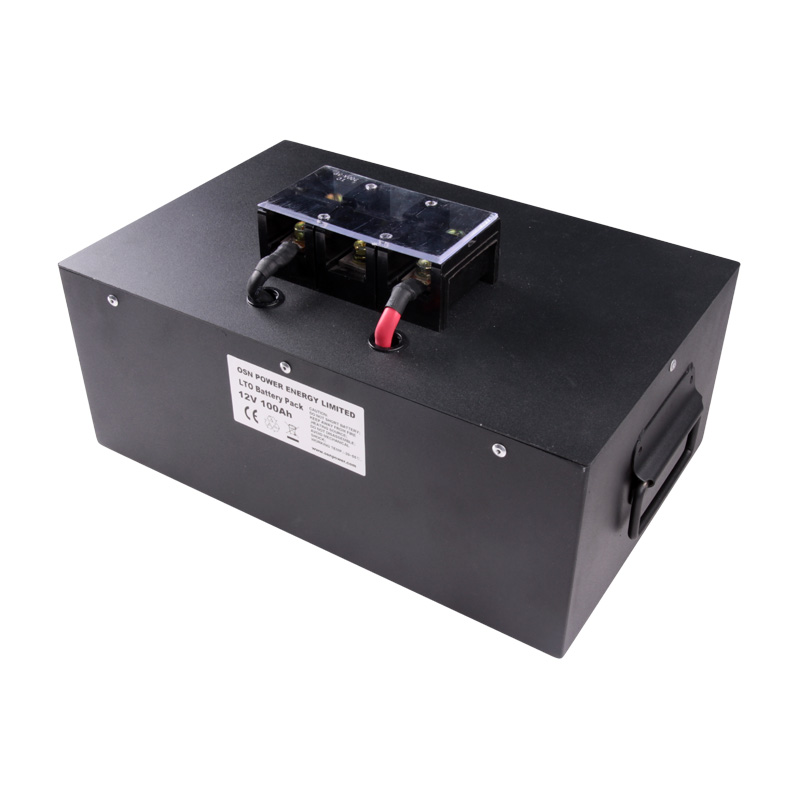

Photo of SCIB Lithium Titanate LTO 12V 100Ah Battery For Caravan Camping Cars
Datasheet of SCIB Lithium Titanate LTO 12V 100Ah Battery For Caravan Camping Cars
|
MODEL
|
OSN-5S5-LTO12100
|
|
PERFORMANCE
|
|
Rated Capacity
|
100 Ah
|
|
Nominal Voltage
|
12 V
|
|
Discharge Ending Voltage
|
7.5 V
|
|
Charging Limited Voltage
|
13.5 V
|
|
Max. Charging Current
|
100.0 A
|
|
Max. Continuous Discharging Current
|
100.0 A
|
|
Serial Connection
|
up to 4 units in series
|
|
Parallel Connection
|
up to 16 units in parallel
|
|
Containing Cell
|
SCIB LTO 2.4V20Ah
|
|
Design Life
|
More than 25 years
|
|
Cycle Life
|
25000 cycles @80% DOD (dependant on actual DOD, usage & temp.)
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
380(410)*245*150(193)mm
|
|
Weight
|
19.64 Kg
|
|
Enclosure
|
Metal Case
|
|
Power terminal
|
Customize
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Warranty
|
5 years
|
More features
-
OSN Power 12V camping car batteries are designed to drop-in replacement of lead acid batteries.
-
Compares to yield of 70% from old VRLA,AGM lead acid batteries, Our new technology LiFePO4 12V 100AH camping car battery deliver yield of more than 95%.
-
Built-in BMS with latest development makes sure best battery power performance and safe.
-
Tolerable connecting in series and parallel ,easy installation supports customers to get higher voltage and bigger capacity. Max up to 4 12V units in series(48V).
-
OSN Power offers a 3 years warranty,extendable to 5 years
