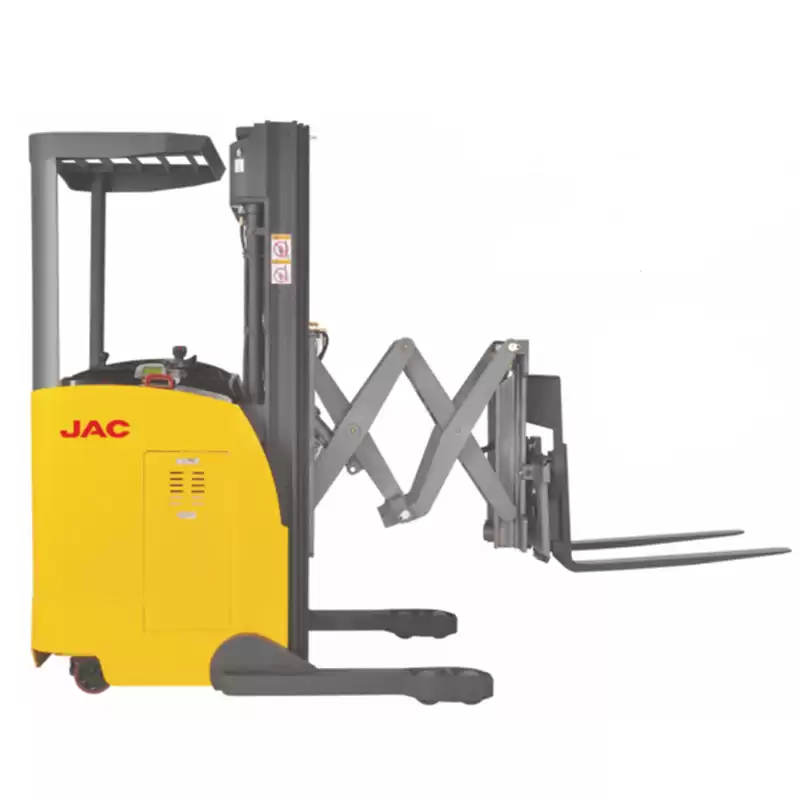

Scissor Fork Reach Lift Truck 1.5 ton

Scissor Fork Reach Stacker with advanced AC control system
Loading capacity: 1.5 ton
Capacity: 500,000 units/year



1. Advantages:

SAFETY AND STABILITY
•Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
•Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.
•Equipped with adjustable hand-rest, adapted to different operator.
•Multi-function display: battery state, hour meter, fault indicator etc.
•Two sides-way battery with roll-out system is very convenient to replace batteries.
•Damping cushion for low-noise operation.
•Built-in pressure relief valve protects the trucks from overloads.
•Emergency power disconnect.


STRUCTURAL
•Low Center of Gravity ensures the stable operation.
•Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
•The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.


SERVICEABILITY
•Low battery protection setting prolongs the battery use time.
•CANbus technology reduces wiring complexity and increase reliability.
•All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
•The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.


2. Specification

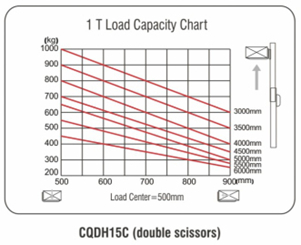

Model  CQDH15C (single scissor)  CQDH15C (double scissors)
Drive type battery battery battery battery battery battery
Load capacity/Rated load Q(kg) 1500 1500 1500 1500 1000 1000
Load centre distance c(mm) 500 500 500 500 500 500
Load distance, centre of drive axle fork x(mm) 334 309 246 246 159 135
Tyre size, front mm 280×82+160×60 280×82+160×60 280×82+160x60x2 280×82+160x60x2 280×82+160×60 280×82+160×60
Tyre size, rear mm 125×82(4) 125×82(4) 125x82x4 125x82x4 125×82(4) 125×82(4)
Wheels, number front rear(x=driven wheels) 1+2 1+2 1x+2/4 1x+2/4 1+2 1+2
Tilt of mast/fork carriage forward/backward) Grad 2/5 2/5 2/5 2/5 2/5 2/5
Height, mast lowered h1(mm) 2125  2375  2625 2675 2185 2345 2505 2125  2375  2625 2185 2345 2505 2675 2840 2375  2125  2625 2675 2345 2185 2505
Free lift h2(mm)  ~   ~   ~ 2000 1575 1700 1825  ~   ~   ~ 1776 1776 2010 2080 2240 ~  ~  ~ 2000 1700 1575 1825
Max. lift height h3(mm) 3000  3500  4000 6000 4500 5000 5500 3000  3500  4000 4500 5000 5500 6000 6500 3500  3000  4000 4500 5000  5500  6000
Height, mast extended h4(mm) 3881  4381  4881 6881 5381 5881 6381 3900  4400  4900 5400 5900 6400 6900 7400 4535  4035  5035 7035 6035 5535 6535
Height of overhead guard h6(mm) 2246 2246 2246 2246 2246 2246
Overall width b1/b2(mm) 1310/1040 1310-1400/1040 1295/1040 1295/1040 1308 /1040 1370/1040     1308/1040
Overall length l1(mm) 2409 2409 2615 2615 2585 2609
Length to face of forks l2(mm) 1339 1339 1518 1518 1515 1539
Fork Dimension s/e/l(mm) 35/100/1070 35/100/1070 35/100/1070 35/100/1070 35/100/1070 35/100/1070
Reach distance l4(mm) 500 500 600 600 1200 1200
Fork height, lowered h8(mm) 130 130 130 130 130 130

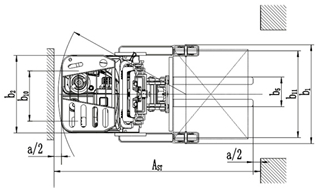

Distance of “X” (see below diagram) mm 450 450 450 450 350 350
Overall length (excluding the fork) mm 1868 1868 1868 1868 1868 1868
Ground clearance, centre of wheelbase m2(mm) 65 65 49 49 65 65
Aisle width for pallets 1000×1200 crossways Ast(mm) 2814 2839 2956 2956 2951 2971
Aisle width for pallets 800×1200 lengthways Ast(mm) 2871 2902 3027 3027 3034 3056
Turning radius Wa(mm) 1718 1718 1791 1791 1718 1718
Travel speed, laden/unladen Km/h 6.5/7 6.5/7 6.5/7 6.5/7 6.5/7 6.5/7
Lift speed, laden/unladen m/s 0.135/0.161 0.135/0.161 0.27/0.43 0.27/0.43 0.135/0.16 0.135/0.16
Lowering speed, laden/unladen m/s 0.15/0.122 0.15/0.122 0.45/0.364 0.45/0.364 0.15/0.12 0.15/0.12
Battery voltage, nominal capacity K5 V/Ah 24/420(560) 24/420(560) 36/700 36/700 24/420(560) 24/420(560)
Battery weight kg 450 450 810 810 450 450
Battery dimension l/w/h mm 770x336X610 770x336X610 978x395x765 978x395x765 770x336X610 770x336X610
Service weight (with battery) kg  2450 2500  2560  3000  2700  2800  2900 3130  3180  3230 3470 3570 3670 3370 3770 2530  2480  2590 3030 2830 2730 2930
