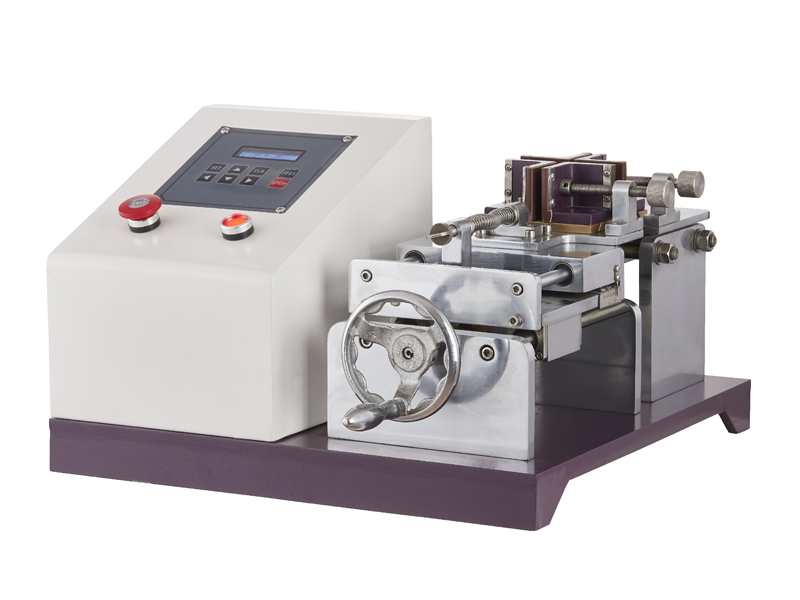

Scott Type Crease-Flex Abrasion Tester

Scott Type Crease-Flex Abrasion Tester is used to determine the crumpling resistance of leather, rubber, fabrics etc.

Test Standards

JIS K6404-6
JIS L1096

Parameters

Model AT-L9013
Test piece 25mmX120mm (WxL)
Abrading distance 0~60mm(Standard 40mm)
Test speed 120cpm
Pressing Load 4.9 to 49N (0~5kgf) adjustable
Spring loaded or Dead weight (Standard 9.8N)
Test travel 0~50mm adjustable  (Standard 20mm)
Counter LED display 0~999,999
Power 1 phase, AC 220V, 3A or specified

If you are looking for more lab testing equipment, please feel free to contact .
