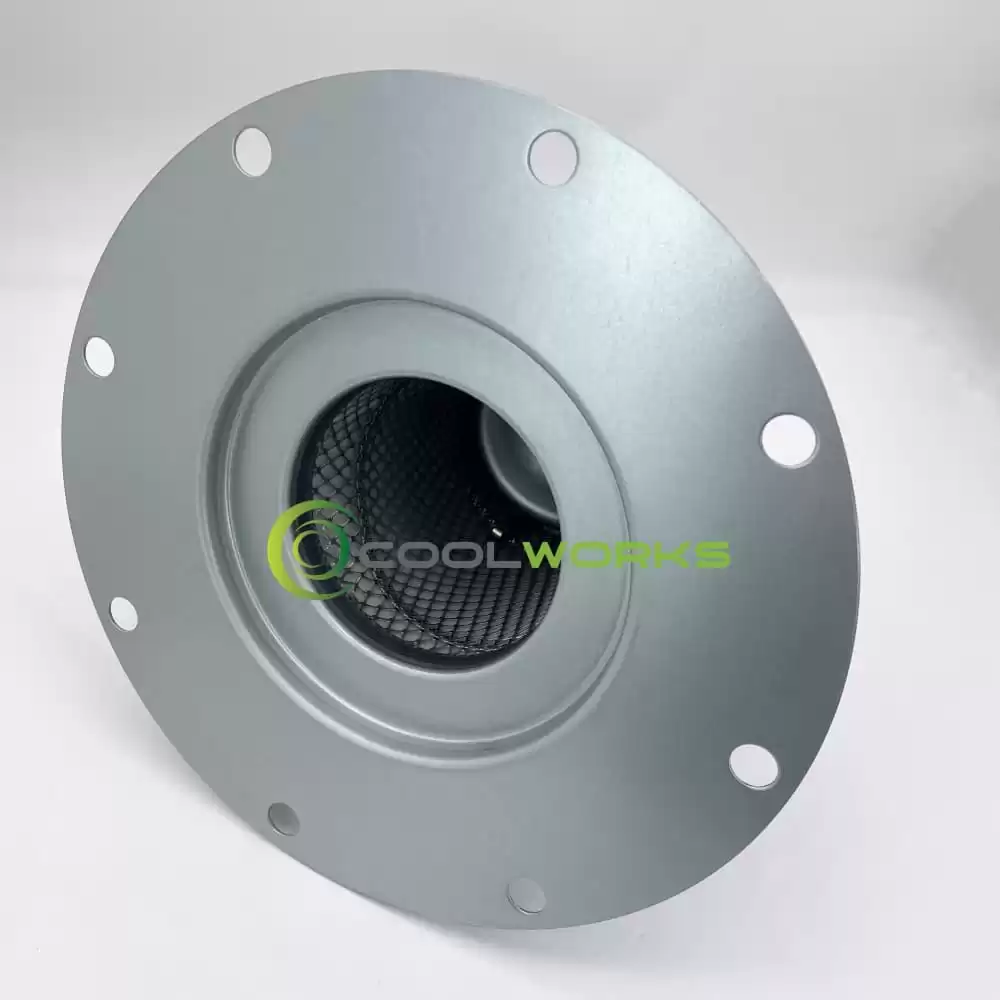

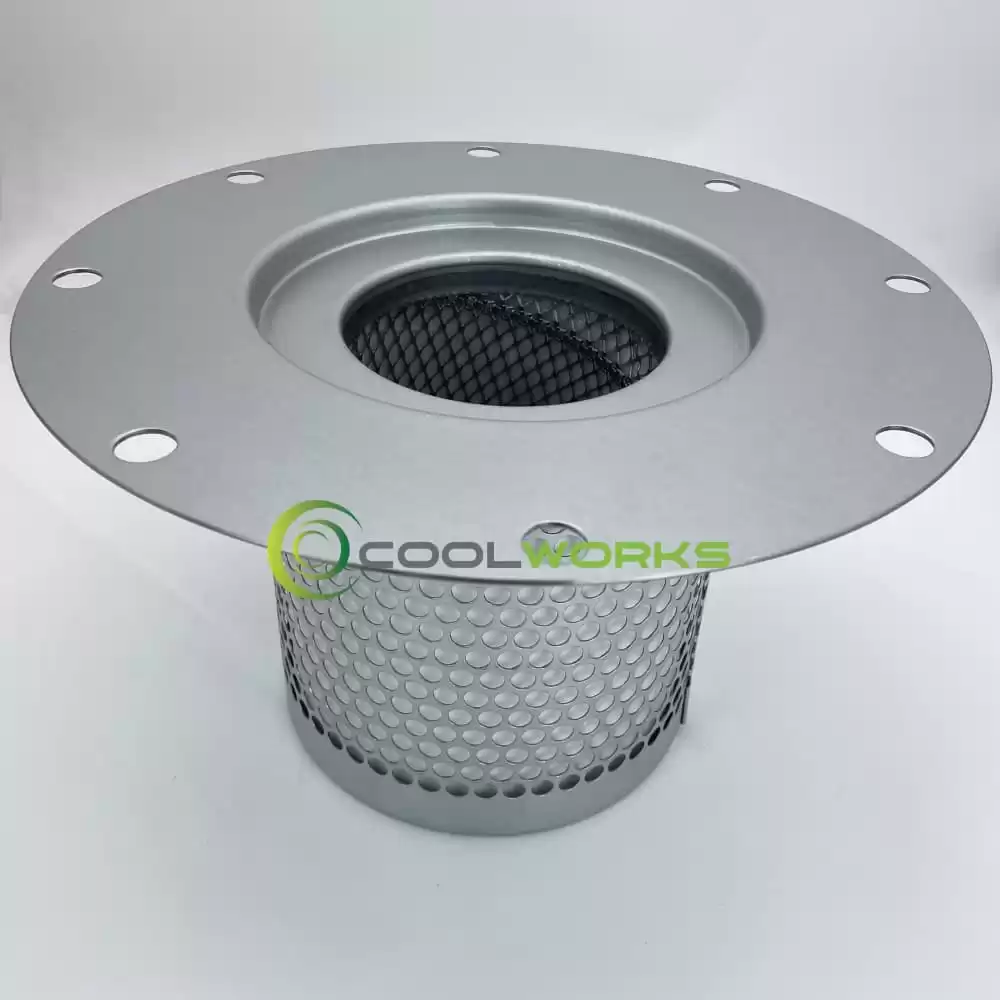

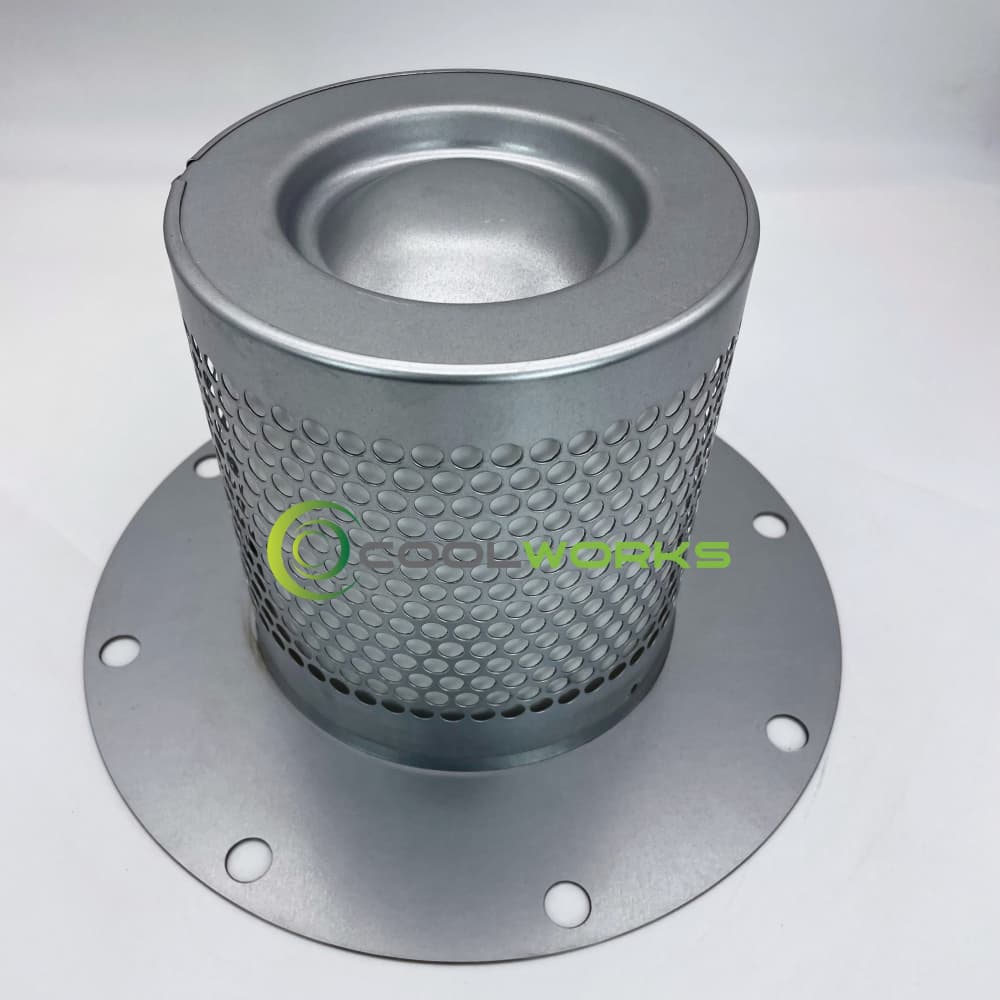

Screw Air Compressor Spare Part Oil Separator Filter for Atlas Copco Replacement 1613839700 2901056600 SC648

  • Hot selling high quality oil separator CF30017180-8 1613839700 2901056600 KV90-028 DC3137 SC648
  • Coolworks filters can customize air compressor fittings to your needs.
  • Trust in Coolworks reliable products to keep your air compressor running smoothly.

Facebook Twitter Pinterest LinkedIn 分享

Air Oil Separator For Screw Compressor Air Oil Separator For Screw Compressor
  • CF30017180-8 1613839700 2901056600 KV90-028 DC3137 SC648
  • Screw Air Compressor Spare Part Oil Separator Filter for Atlas Copco Replacement 1613839700 2901056600 SC648
Oil separator standard specification
Air  flow(m³/min) OD   d1(mm) Flange d2(mm) ID d3(mm) Height h(mm)
35  135  170  75  160
4.5  135  170  75  200
6.8  135  170  75  305
5.0  170  200  109  180
6.5  170  200  109  230
9.0  170  200  109  305
12  170  200  109  400
9.0  220  273  157  230
12  220  272  157  305
16  220  288  157  400
25  220  272  157  612
15  275  328  209  305
20  275  328  209  400
25.5  275  328  209  500
16  300  355  220  305
22  300  355  220  400
28  300  355  220  500
32  300  355  220  540
34  300  355  220  600
40  300  355  220  700
40  350  430  265  550
39  400  434  314  520
43  400  439  314  600
46.5  400  434  314  620



  • High quality, low cost and excellent quality Coolworks Filter.

    You deserve it!

    -

    Coolworks filter,

    Delivers superior performance without costing you too much,

    Loved by buyers all over the world.

Air Compressor Oil Separator Manufacturer

  • Coolworks filter is a professional manufacturer of air compressor filers with rich experience.
  • Mainly supplying:Replacement and customized filters of air compressors; Air compressor parts; line filters; Vacuum Pump Filters: Hydraulic Filters.



  • Product filtration efficiency up to 99.9%
  • Thickened galvanized steel plate for the framework and the end cover, HV glass fiber from Germany, to ensure the quality of the filter.
  • We offer customizable products service with cost-effective price and quality.

Air Compressor Oil Separator Packing

Air Compressor Oil Separator Certification



Next Product
Prev Product
Product Tags Coolworks oil separator CF30017180-8          1613839700 2901056600 DC3137          Atlas Copco oil separator replacement          Air Compress filters oil separator          Atlas Copco replacement          Manufacturer air compressor filter
