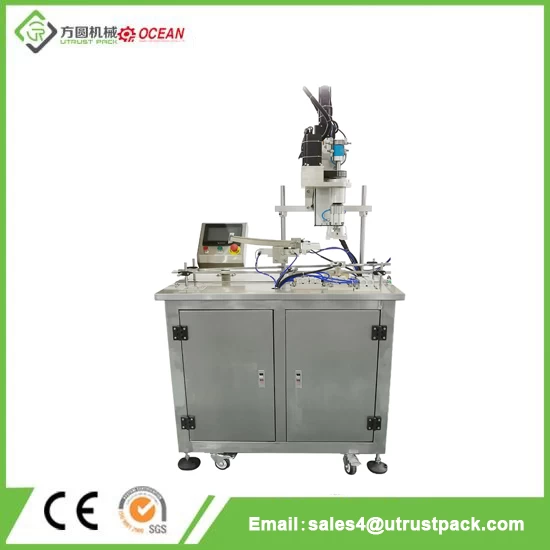

Screw Capping Machine for Bottle/Capping Machine for Can
Main Features
1,XYZ robot am robot arm axis is designed to move and grasp the cap onto the jar accurately;
2,Special design of the hand-simulated screw capping fifixture to use constant power to screw capping the caps
3,Servomotor for perfect torque feedback control to twist-off and tighten the cap onto the jar to avoid broken of the caps;
4,Tailor-made of multi-lane for screw capping can meet different capacity requirement.
5,Applicable for different shape and dimension of jar and capsû plastic or metal screw cap, sprayer, pump head, pilfer proof cap and etcü with easy adjustment
Screw Capping Machine for Bottle/Capping Machine for Can
|
Material
|
Stainless Steel
|
|
Capping head
|
1
|
|
Capping speed
|
20-25 bottles per min (speed can be increased by adding extra lane)
|
|
Power
|
0.75KW
|
|
Apply bottle height
|
50-400mm
|
|
Work Pressure
|
0.6-0.8MPa
|
|
Weight
|
200Kg
|
|
Size
|
2000(L)*670(W)*1780(H)mm
|
|
Voltage
|
220V,50\60Hz
|
Product Details
Contact Supplier
Our Service on Screw Capping Machine for Bottle/Capping Machine for Can
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
|
1.What is your installation services?
|
2.What about your guarantee of quality?
|
|
User mauual and videos to surpport for installing,debugging,operation of the machine.It will indicate you how to use this machine well.
|
The Screw Capping Machine for Bottle/Capping Machine for Can is 1 year warranty,all machine part can be replaces within 1 year if broken(not including man made)
|
|
3.If we have very special request for the production line,could you help me to do the design?
|
4.Can I visit your factory?
|
|
Experienced mechanical designer customized-design provided.
|
Yes,welcome please.
|
|
5.If we have samoles of new products,can you help to analysis and design the machine?
|
6.Do you have certificate?
|
|
Yes.Our technical department can help to analysis design and test the new products you offered.
|
Yes,we have some,like CE/SGS.
|
