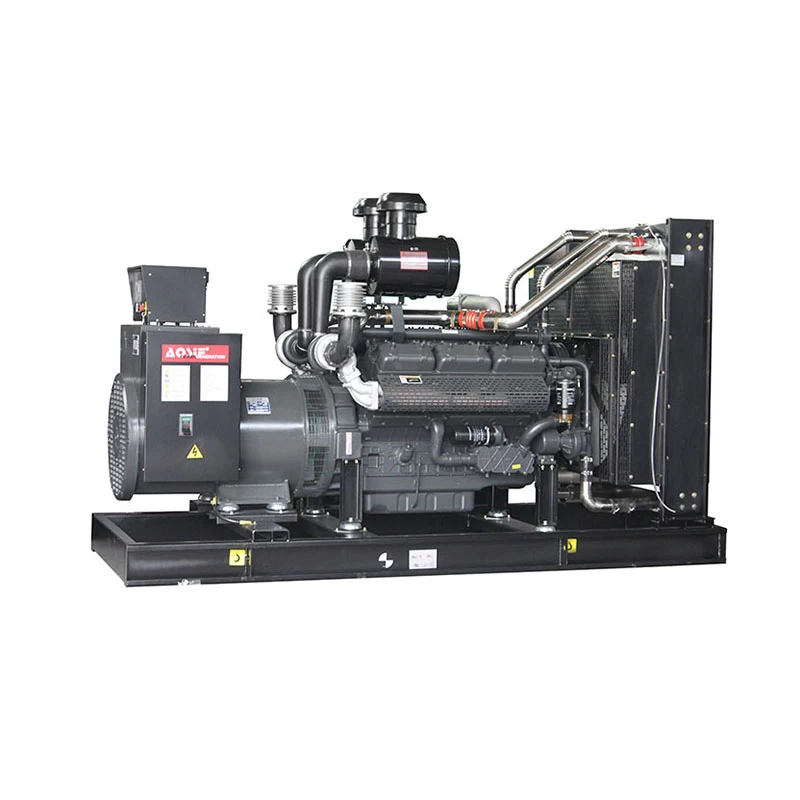

SDEC Series Generator Set

AOSIF SDEC Series Diesel Generator Set



  • Frequency50HZ/60HZ
  • controllerDeepsea/ComAp
  • AlternatorLeroy somer /Stamford/Marathon/AOSIF
  • EngineSDEC
  • Prime Power40kw-770kw

AOSIF SDEC Series Diesel Generators set


Genset Standard Configuration

◆  Assembled by Shanghai diesel engine and world famous brand alternator

◆  Radiator and fan with safety guard

◆  Automatic control panel and electricity output switch cabinet

◆  Float battery charger and solenoid switch as standard supply scope

◆  Built-in shock pad

◆  Strong and durable hi-strength base frame

  Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

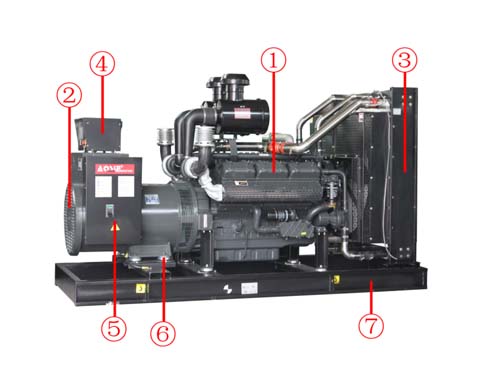

    Diesel engine

    Alternator

    Water tank radiator

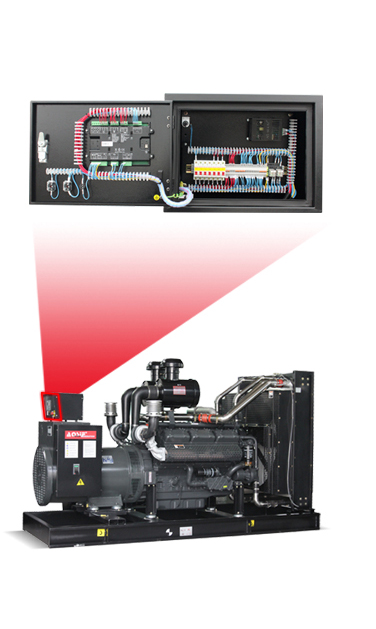

    Automatic control panel

    Electricity output switch cabinet

    Built-in shock pad

    Hi-strength Base Frame








Standard Supply  Scope

① Exhaust silencer

② Bellow

③ Elbow and flange

                           ④ Starting battery


Optional supply scope

① ATS

② Synchronization System

③ External daily fuel tank

④ Silent Canopy

⑤ Trailer




⑥ Auto Fuel Pump

⑦ Fuel and Water Separator

⑧ Lub Oil Heater

⑨ Coolant Heater

⑩ Fuel Drain Pump



SDEC engine:

Shanghai Diesel Engine Co., Ltd., formerly known as Shanghai Diesel Engine Works,is now part of SAIC Group.It is a large-scale listed company engaged in engine R&D and manufacturing and related spare parts production. It has a national technology center and post-doctoral workstation, and an international first-class automatic production line in accordance with Passenger car standard quality management system as well. In the course of nearly 70 years' development, SDEC sells its products all over the world and now has seven series of diesel engine classified as R, H, D, C, E, G and W series with power coverage of 50~1600kW.




Alternator

 AVR  Standard
 Number of phase  Single/3
 Power factor  0.8/1
 Altitude  ≤ 1000 m
 Frequency  50/60Hz
 Number of pole  4
 Exciter type  Self-excitation
 Voltage regulation  ±0.5%
 Total harmonics(TGH/THC)  < 4 %
 Wave form: NEMA = TIF  < 50
 Wave form: I.E.C. = THF  < 2%
 ◆ Optional PMG excitation system


Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG (optional), in with superior performance in generating non-linear loads.


◆ Forms: single/double bearing

◆ Protection:IP23(IP44 for option)

◆ Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

◆ Overspeed: 2250rpm

◆ Insulation Class: class H

◆ Mechanical Structure: steel base frame

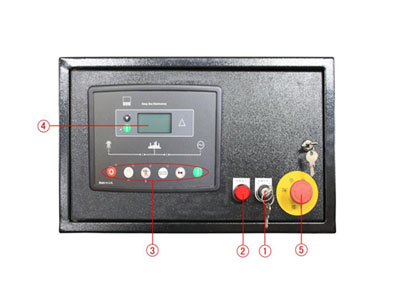

Control System——Deep Sea 6120 Controller





① Power switch

② Power indicator

③ Run button

④ LCD display

⑤ Emergency stop button







It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced engine testing and protection functions. This module includes an LCD backlit display that clearly displays the engine running status. The module also includes 7-channel input and 6-channel output. Program can be set through the panel and PC software suite.


Parameters:

Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic sensor signal loss, low battery voltage, three-phase mains voltage and mains frequency.




Protective functions:

◆ High water temperature

◆ Low oil pressure

◆ High/low voltage

◆ Over speed

◆ Voltage regulator frequency regulator

◆ Emergency stop

◆ Start failure


Product features:

◆ Protection: Automatic start/stop, load switching and genset alarm

◆ Magnetic sensor signal

◆ Parameters setting via PC and panel

◆ Incorporates 4-channel digital input signal and 3-channel analog input signal

◆ 6-channel output signal (4-channel customized output, CAN 6-channel customized output.)

◆ Monitoring of 3-phase generator voltage and mains voltage

◆ Remote loading/unloading

◆ Advanced measurement capabilities

◆ Test button

◆ Switch between mains and genset power

◆ Reasonable structure and button layout

◆ Multiple engine parameters can be tested simultaneously

◆ Module can be configured according to customer demand

◆ IP65 protection (soundproof)


Circuit breaker


Molded case circuitbreaker(MCCB)

63A TO 1600A

Air circuit breaker(ACB)

1600A TO 6300A

Breaking capacity(ICU)

18KA TO 120KA

Rated Operation Voltage(Ue)

400V

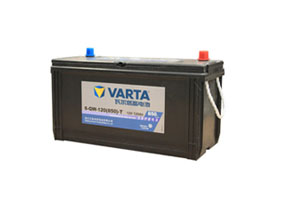

Starting battery



Battery Voltage

12V

Battery Capacity

80Ah to 200 Ah

Battery Model

maintenance-free battery





Aosif Soundproof Box-type Genset





Aosif soundproof box-type genset is designed by professional engineers with over a decade of experience.The noise of this kind of genset is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.






★ Multiple air inlets/outlets ensure power performance of the genset.

★ Large composite impedance muffler effectively reduces the genset noise.

★ Internal high-performance rubber shock absorber and flexible materials can reduce vibration.

★ Fuel tank at the bottom can enable the genset to work for 8 hours.

★ Soundproof enclosure is made by cold steel.

★ The best powder coating with chemical surface treatment ensure corrosion resistance and coating quality.

★ Nice appearance and reliable quality.

★ Stainless steel locks and hinges.

★ All-weather operation is available.

★ Fireproof, waterproof and dust-proof

★ High-performance insulation materials can effectively reduce noise.


★ Transparent sight glass allows users to clearly see the content of control panel.

★ Emergency stop button mounted outside the genset to facilitate emergency operations.

★ Coolant filler is set on the top of the enclosure.

★ Lubricant and coolant pipes are installed at the bottom of the genset to facilitate replacement with new lubricants and coolants.

★ Battery is accessible through the access door.

★ Cooling fan and battery are fully monitored.

★ Insulated exhaust system is installed inside the genset.

★ Type of forklift frame is optional.

★ 180° rotatable and detachable door is designed for ease of maintenance.

★ Concave lockable access door has a long lifetime.

★ Lights inside the genset are available for maintenance.

★ Lugs are mounted at the bottom of the base.

★ Top lifting mechanism is the stand configuration for high-power genset.

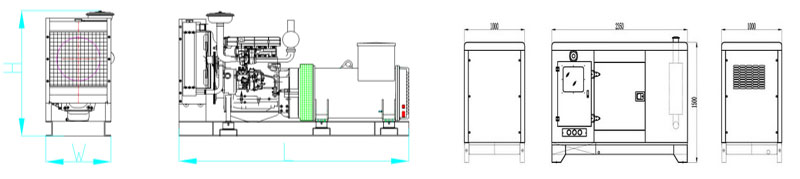

Weight  and Dimension



Our Commitments

★ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

★ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001 Environmental Management System.

★ All products are CE-certified.

★ All products have passed rigorous factory test to ensure high quality.

★ Product warranty terms are strictly enforced.

★ High-efficiency assembly and production lines ensure on-time delivery.

★ Professional, timely, thoughtful and dedicated services are offered.

★ Favorable and complete original accessories are supplied.

★ Regular and irregular technical training are provided all year round.

★ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
