Item
|
Specifications
|
|
Model
|

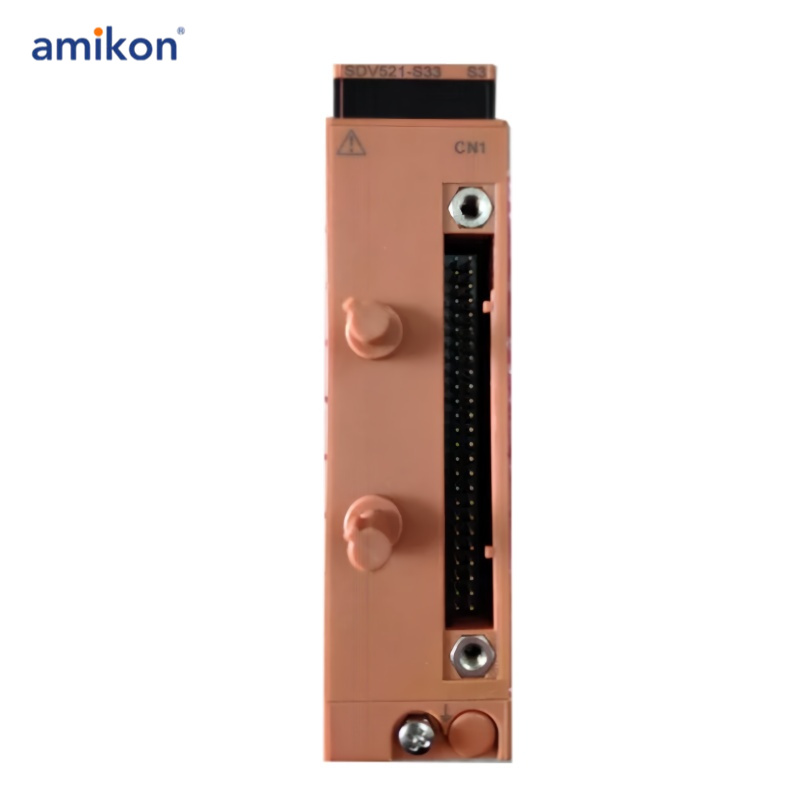

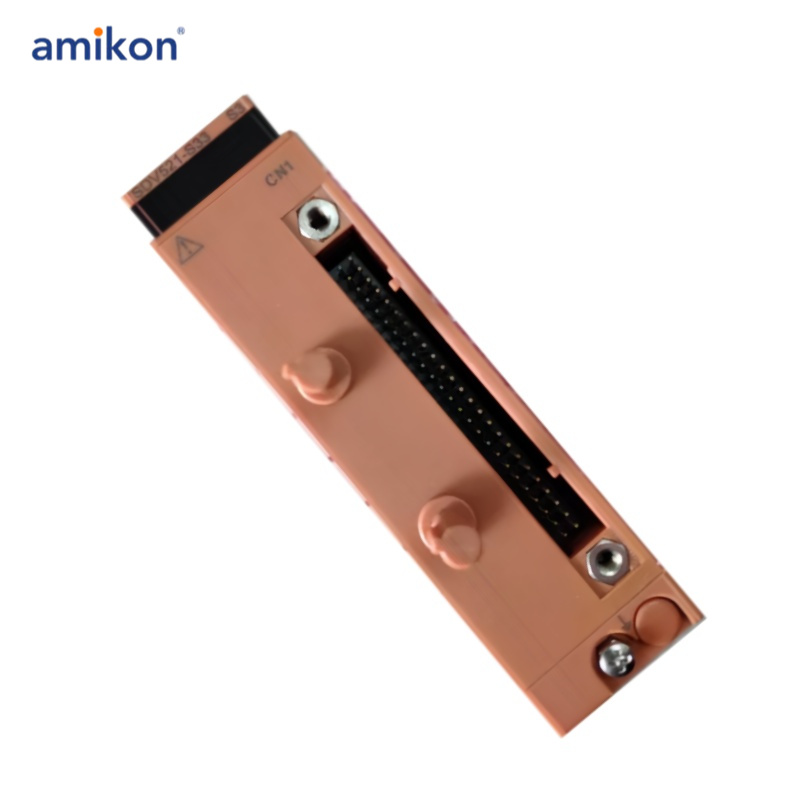

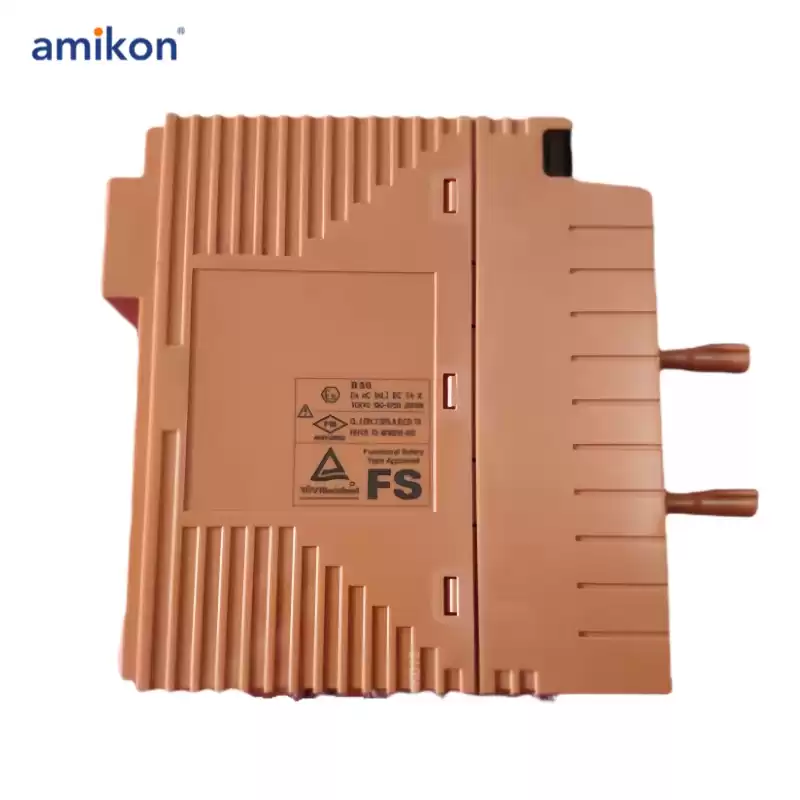

SDV521-S33
|
|
Number of outputs
|
4-channel, module isolation (*4)
|
|
Output voltage
|
24 V DC
|
|
Output voltage drop
|
1 V maximum
|
|
External power supply rating
|
24 V DC, 10 A minimum
|
|
External power supply
|
24 V DC ±20%/-10%<br>Current capacity: 8.2 A (*5)
|
|
Maximum leak current at output off status
|
1.6 mA
|
|
Output format
|
Current source
|
|
Maximum load current
|
2 A/output line (8 A in total output lines) (*4)
|
|
Minimum load current
|
100 mA
|
|
Load resistance range
|
12 to 240 Ω (*6)
|
|
Maximum lamp load (*1)
|
1 A/output line
|
|
Output response time
|
30 ms maximum
|
|
Weight
|
Approx. 0.36 kg
|
|
External connection
|
Dedicated signal cable (AKB651)
|
