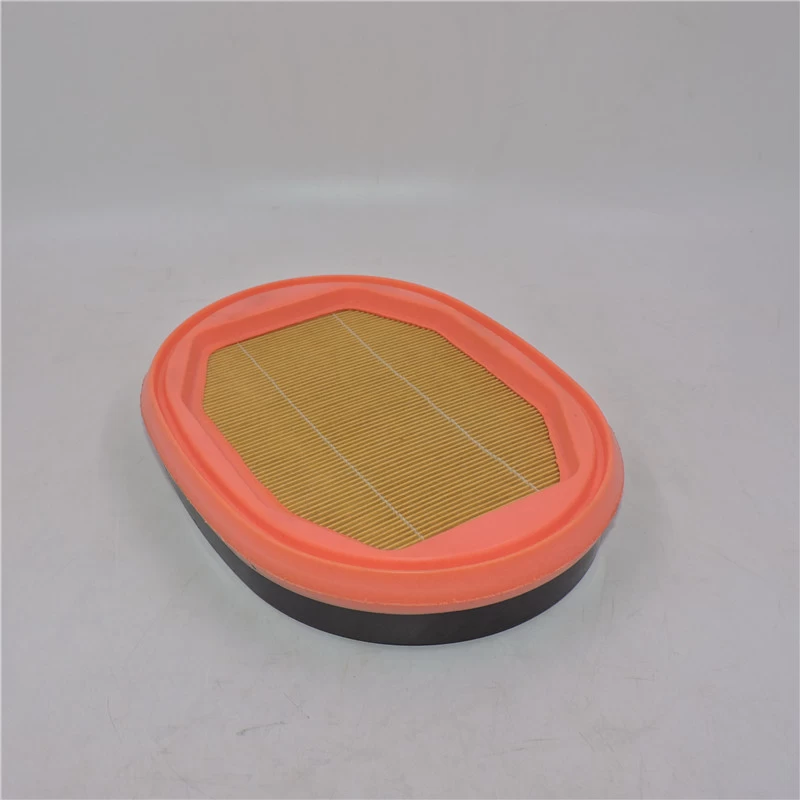

Secondary Air Element CAT 252-5002,2525002
Cross Reference:
Fleetguard AF1009, Baldwin CA30072
The 252-5002 Parameter：
|
Part Number
|
252-5002, 2525002
|
|
Parts Name
|
Air Filter
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
42.90 mm
|
|
Outer Diameter 1
|
276.20 mm
|
|
Outer Diameter 2
|
209.60 mm
|
|
Efficiency Rating
|
Standard Efficiency
|
|
Primary vs Secondary
|
Secondary
|
|
Seal Type
|
Radial Seal
|
The 252-5002 Features：

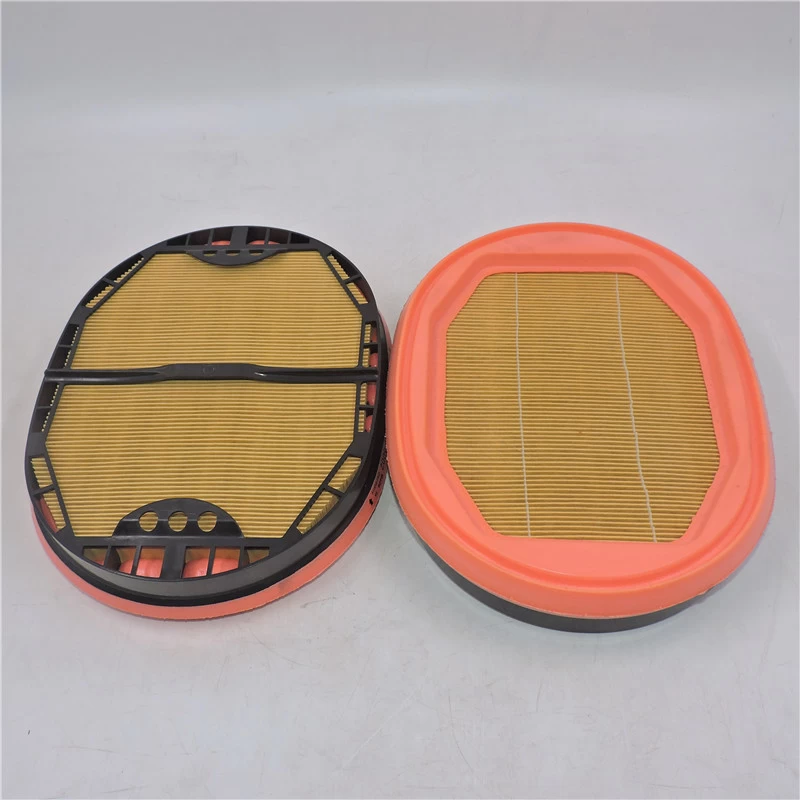

The Primary Air Element 252-5001 and Secondary Air Element252-5002 used together.
The 252-5002 has three attributes:
1. Environmentally friendly
2. Increased airflow with less restriction
3. Serves the critical role of back-up filtration
The 252-5002 Application：
|
Compatible Models
|
|
WHEX
M322D MH M316D, M322D, M313D, M317D2, M324D2 MH M318D, M322D2, M318D MH M315D2, M315D, M322D2 MH M320D2
|
|
TTT
D6N, D6K D5R XL D6K XL D5R LGP D6K LGP
|
|
TTL
963D, 953D
|
|
PIPE
PL61
|
