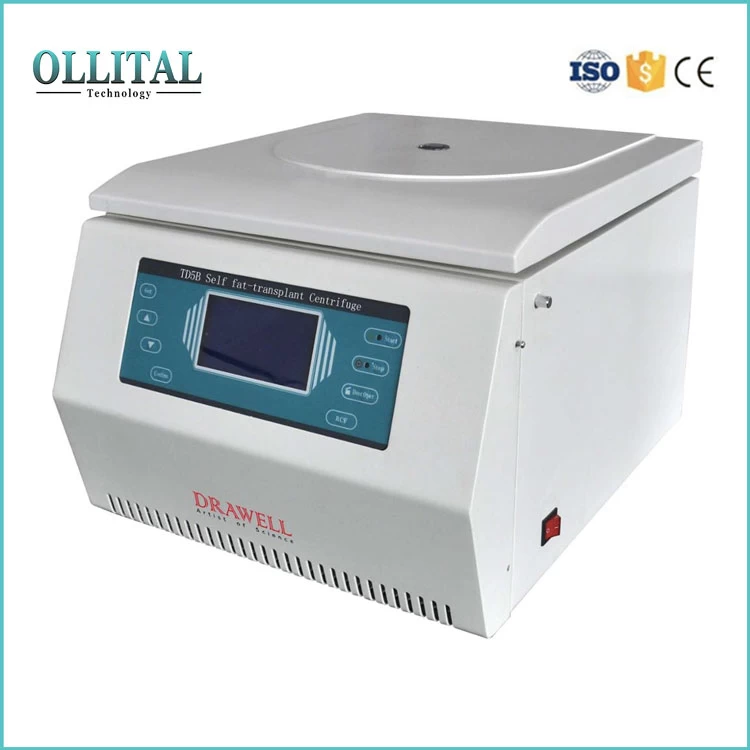

DW-TD5B is self fat purification and stem cell purification set-in-one centrifuge, which is mainly used in cosmetic surgery, dermatology, and TCM rehabilitation the urology field.
DW-TD5B uses 10ml, 20ml, 30ml, 50ml, 60ml, 100ml of conventional syringes to separate rapid of fat and stem cells, no heat, no damage on the fat and stem cells, greatly safeguard the survival rate of fat grafting and stem cell transplants, makes the process simply, and to ensure the effective fat and its survival rate.
|
Model
|
DW-TD5B
|
|
Max Speed
|
5000r/min
|
|
Max RCF
|
4390xg
|
|

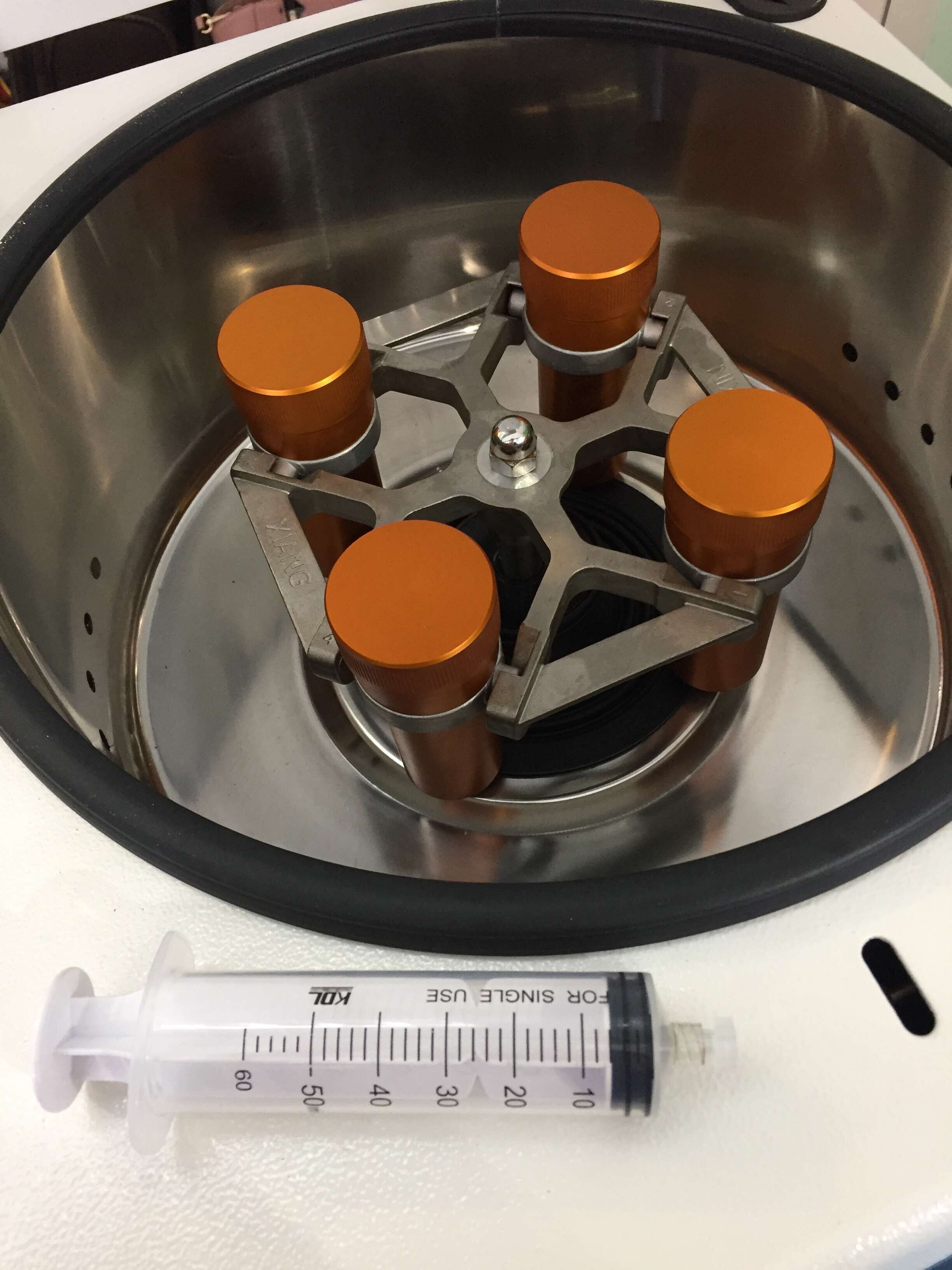

Swing Rotor
|
4×100ml (100ml-400ml)
|
|
4×60ml (50ml-240ml)
|
|
8×20ml (20ml-160 ml)
|
|
16×10ml (10ml-160 ml)
|
|
Speed Accuracy
|
±20r/min
|
|
Timer Range
|
0~99min
|
|
Motor
|
Micro-computer Control,Frequency Conversion Motor
|
|
Noise
|
≤60dB(A)
|
|
Power Supply
|
AC110-220v 50Hz-60Hz 5A
|
|
Dimension
|
580×450×370mm(L×W×H)
|
|
Weight
|
39kg
|
1. Through clinical research and test, special design on the speed, RCF and the time.
2. Microprocessor control, frequency conversion motor. Driving steady with high accuracy of speed and RCF.
3. Touch Panel ,LCD display, humanised interface, easy to operate.
4. Protection for imbalance, lid-lock, over speed and display the error code on the screen.

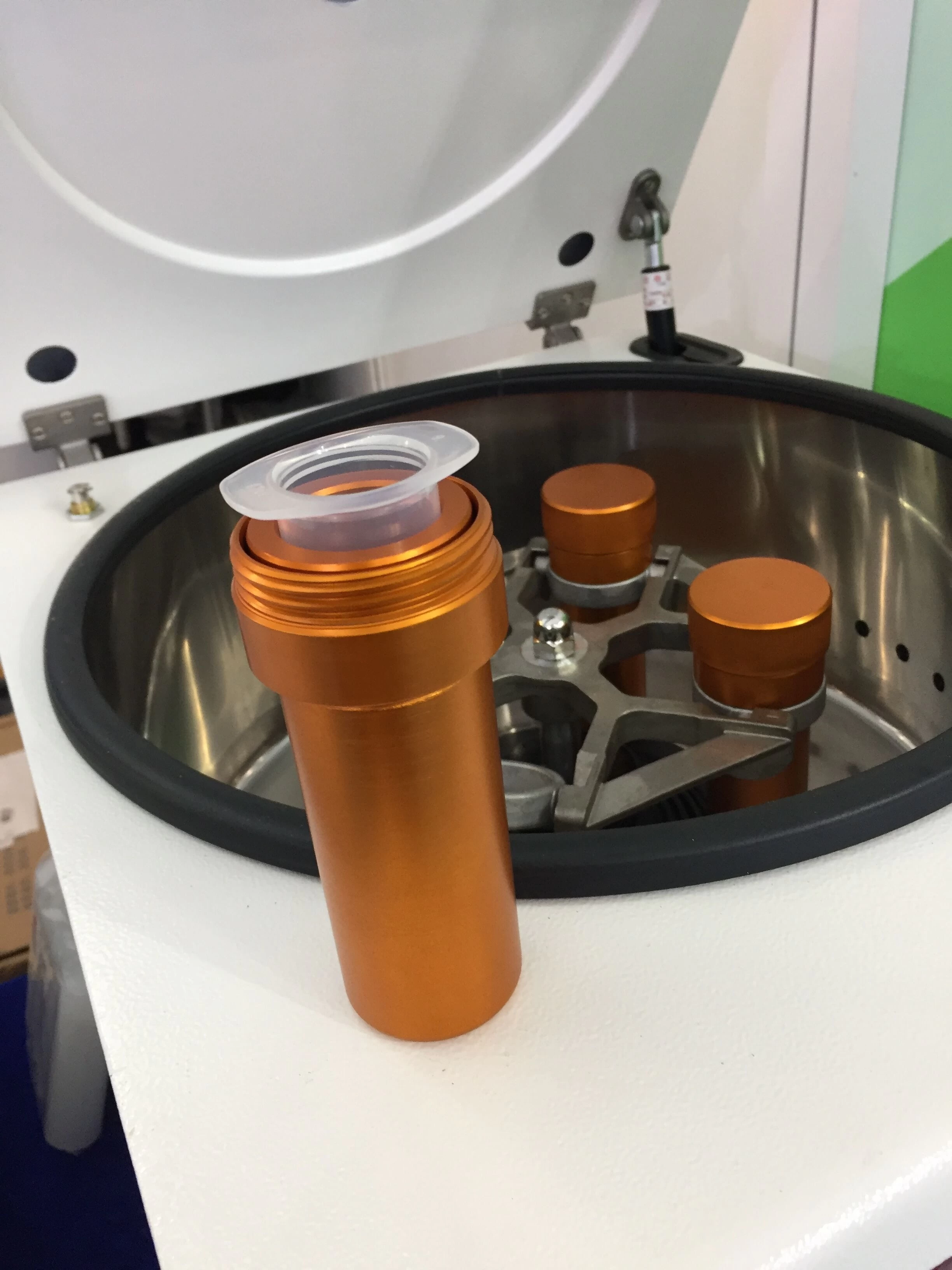

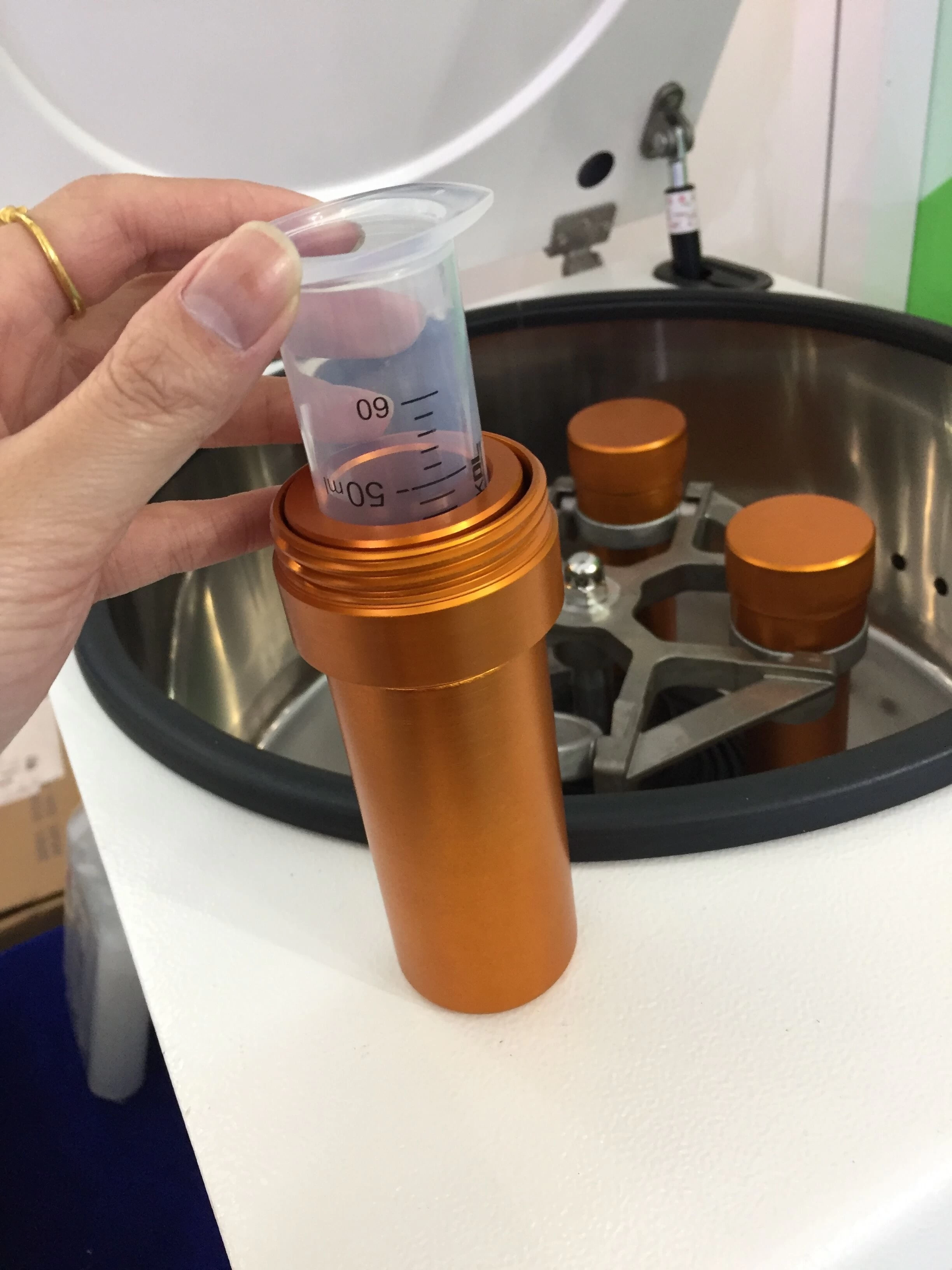

5. Standard conventional syringe sleeves available. Capacity from 10ml to 400ml, more choices.
6. 0-9 grades of Acc/Dec rates adjustable, including non-breaking system; The parameters can be set and revised freely during a run for convenient use.
7. Equipped with seal functions such as syringe cap, plug and transfer to make the process safety, no pollution and quick save time.
8. Complying with CE security certification, and certified by ISO9001 and 13485 quality system.
Mini Liposuction Machine Model: ML20 ( Optional )
Characteristics:
Crew design for much more convenient operation
Portable and simple operation
High stainless material using
Can be sterilized under high temperature
Mini liposuction machine is equipped with the injector
Realizing precise and accurate suction
Suitable for the areas of face, mandible, neck, arm and legs
Specification:
20ml/50ml/60ml
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
