Self-propelled Concrete Floor grinding machine

The HTG-800-4A is the newly creation in Xingyi High Tech Grinding Polishing Machine System. Machine can walk by inself at setting speed which could  creat a superfalte shining concrete floor for u.



Self-propelled Concrete Floor grinding machine

Technical Specification:

 Motor Power  20HP(15KW)
 Inverter Power  25HP(18.5KW)
 Working Width  800mm
 Tool Holder Diameter  256*4
 Voltage  220-240V/380-440V three phase
 Rotating Speed  450-1950rpm
 Weight of Machine 521kg

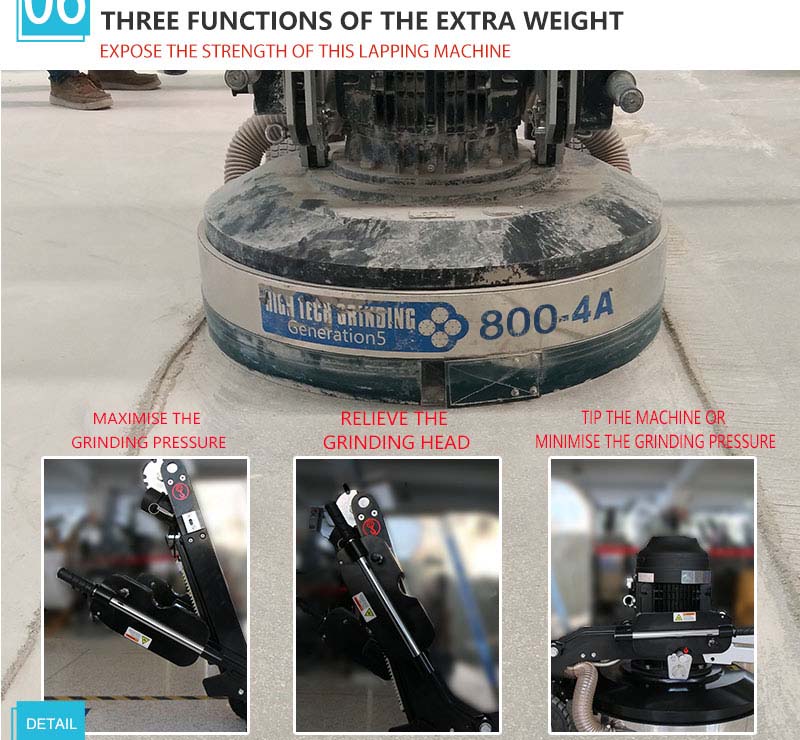

 Additional Weight  20kg*2

Machine Detailed introduction



Walking at setting speed with long battery life:

Machine can walk at setting speed at upward or downgrade slope. For example, if you make setting 10meter/min, machine will proceed base on the program instruction

Long battery life: Charge 7 hours can walk 25 hours

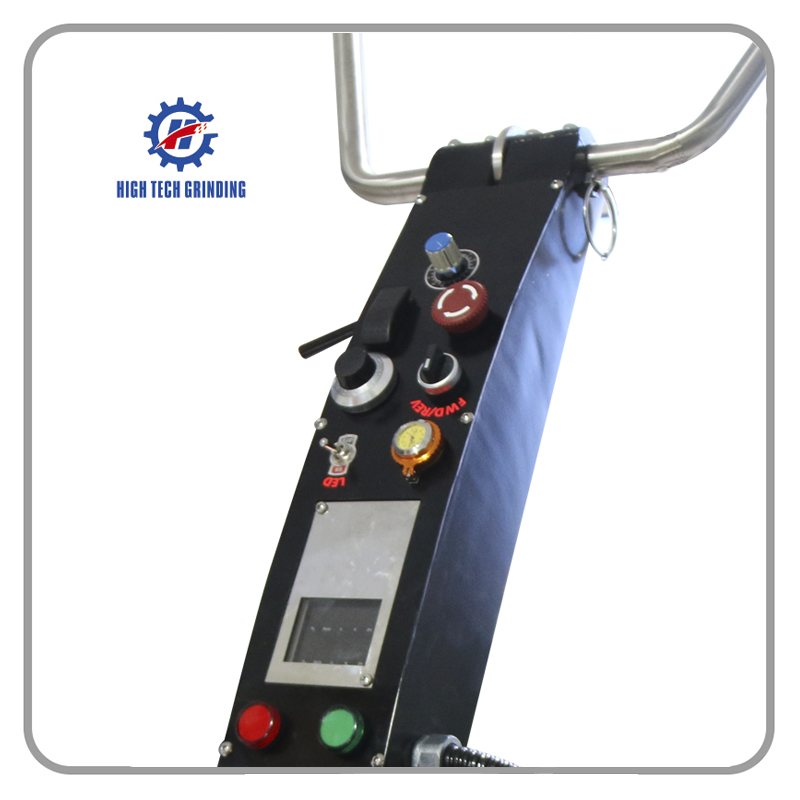

Hour Meter:

Allow to check the machine running time anytime, good for the machine maintenance.

se on the program instruction











  Planetary Grinding plate

1. Planetary counter rotation reduces the grinding machine’s deviating force then it helps to lower grinding strength and easy to grip machine.

2.Four heads counter grinding balanced the grinding pressure and made the floor grinding flatness  higher when comparing with similar machines.

3. Four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than XY-688.

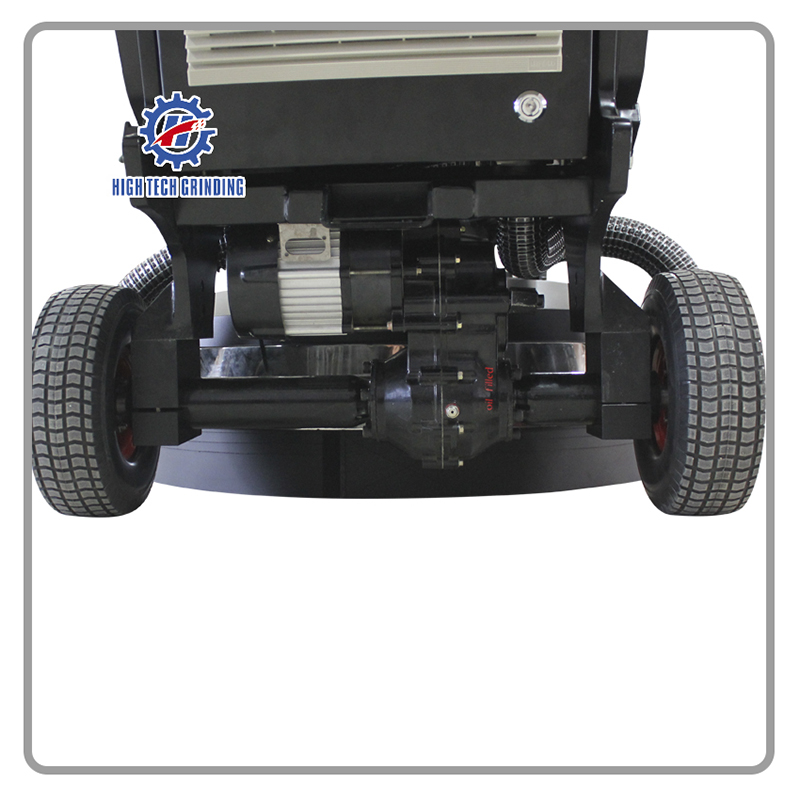

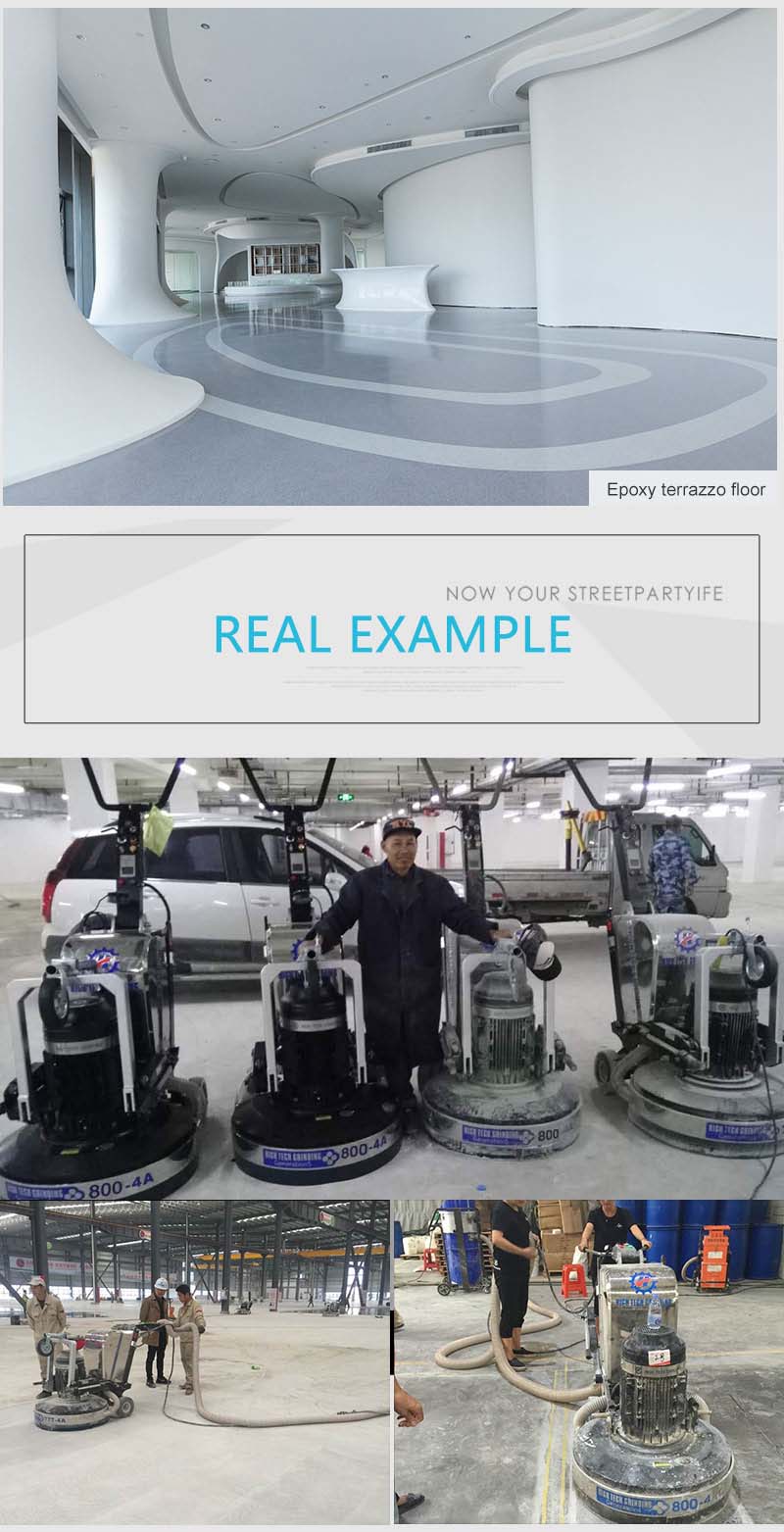

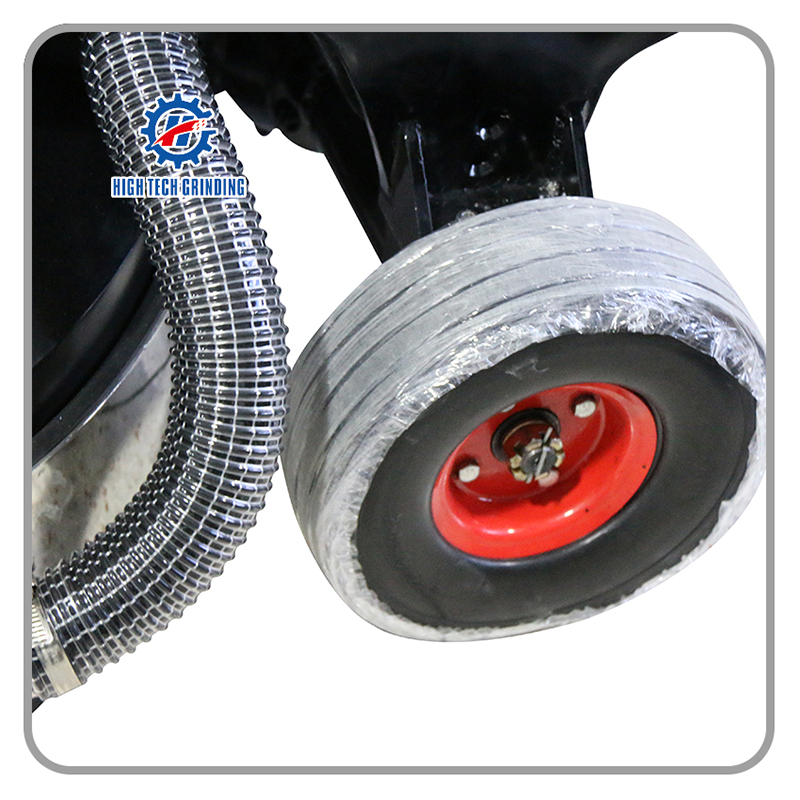

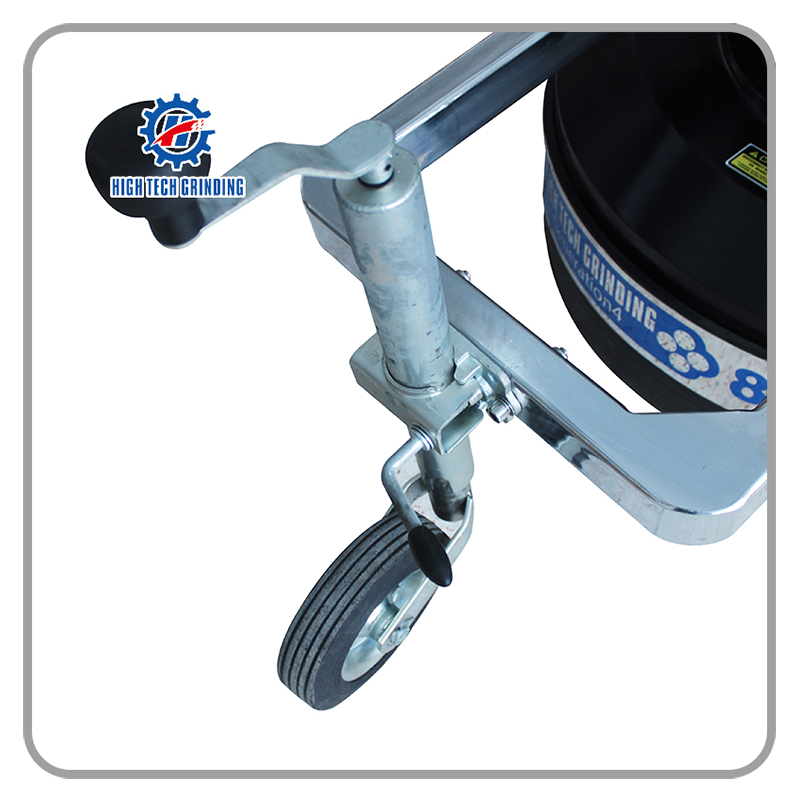

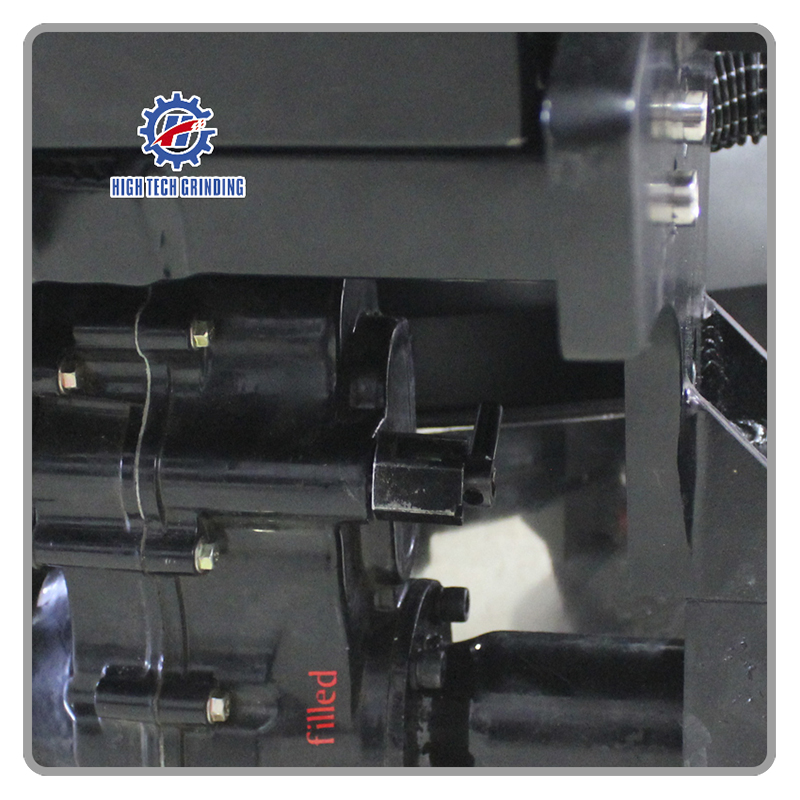

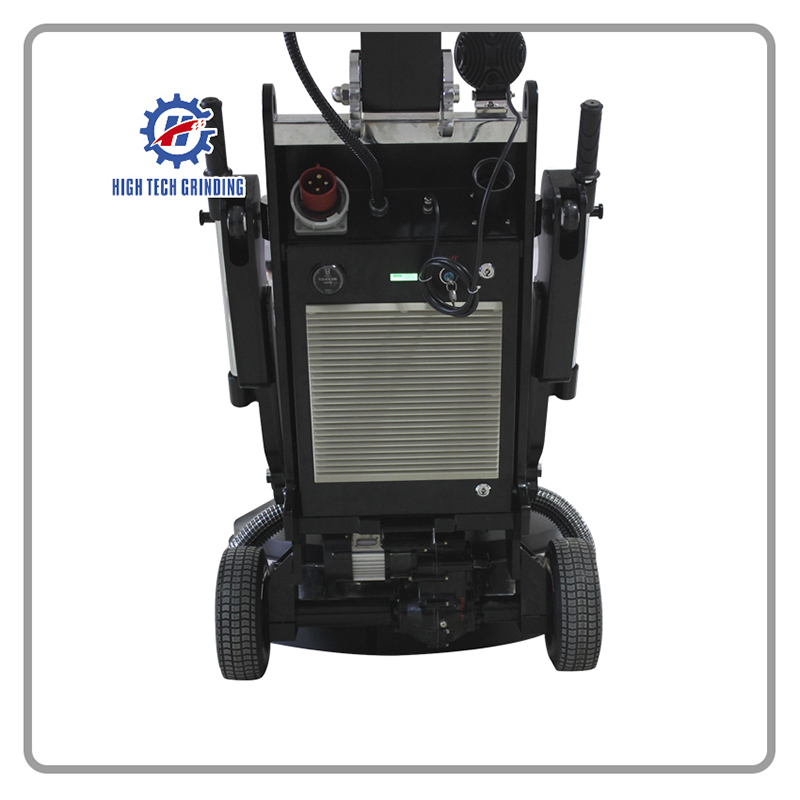

Machine Detailed pictures































































FAQ

A: Are you factory?

B: Yes, we are factory, our company is located in NO.C2 ,Area 11 ,AnPing Development Area,  Quanzhou ,Fujian province ,China.


A: Do you also have pads?

B: Yes, we manufacture for syetem products of polished concrete and stone Caring. which include polishing machine, diamond pads and chemicals.


A: Can we use our own logo on your machine?

B: Yes, we can do OEM design of machine, we can help you to use your own logo and also can use the color you like.


A: Can I pay from Alibaba?

B: Yes, we have cooperate with Alibaba in more than 8 years.


A: Does your machine use gear or Belt driving?

B: We all use gear driven machine, we have our own CNC machine, welcome you to come to visit our machine to inspect.
