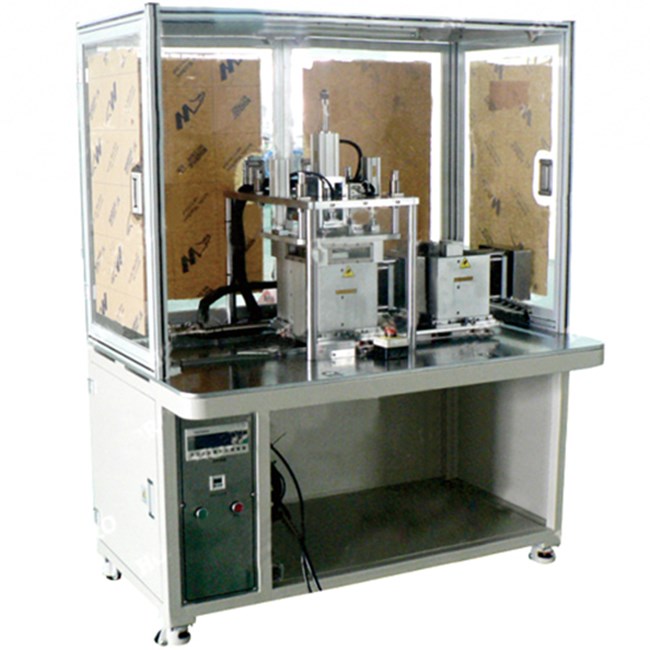

Semi-Auto Vacuum Steel Ball Sealer for Prismatic EV-battery
Functions
● It is used to vacuum steel ball sealer for big size prismatic EV-battery.
Features
● Double chambers, recycle, battery deeding & steel ball sealer are operation at the same time, chamber recycle precision ±0.1mm.
● Adopt air cylinder straight line cycle, hydraulic buffer limit, move stability.
● Steel ball storage in stainless steel vessels, avoid magnetic
● Piston type send steel ball, avoid empty sealer or repeat steel ball sealer.
● Use the air cylinder to seal steel ball, easy to adjust air pressure.
Technical Parameters(for reference)：
|
ITEM
|
MAIN PARAMETERS
|
|
Dimension
|
L x W x H ≈1000x500x1800mm
|
|
Weight
|
About 0.15T
|
|
Power supply
|
AC220V/50HZ, 0.2KW
|
|
Air source
|
≥0.6Mpa, 30L/min
|
|
Vacuum source
|
≤ -0.09Mpa, 10L/S
|
|
Applicable battery range
|
L 80-150, W 15-40, H 100-210, Filling hole dia 1.3-1.8mm
|
|
Capacity
|
80-200PCS/H
|
|
Action
|
≥99%
|
