Semi automatic 10-50 kg urea BB compound NPK fertilizer packing machine

Semi automatic granule packing machine is used for weighing and packing for granule material into big bag from 50kg to 50kg

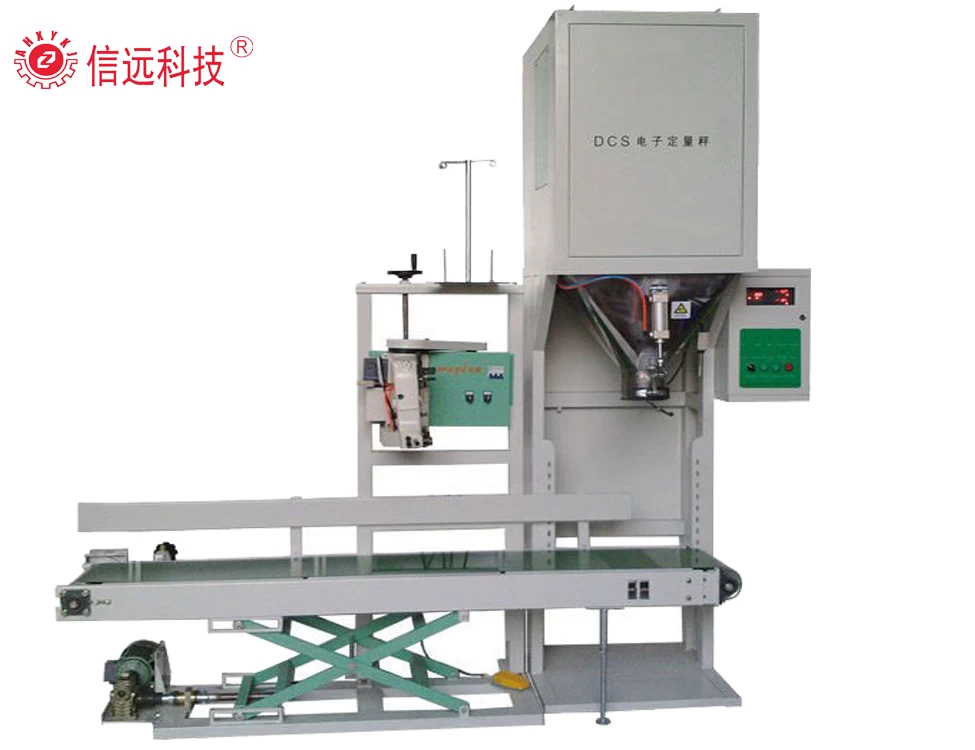

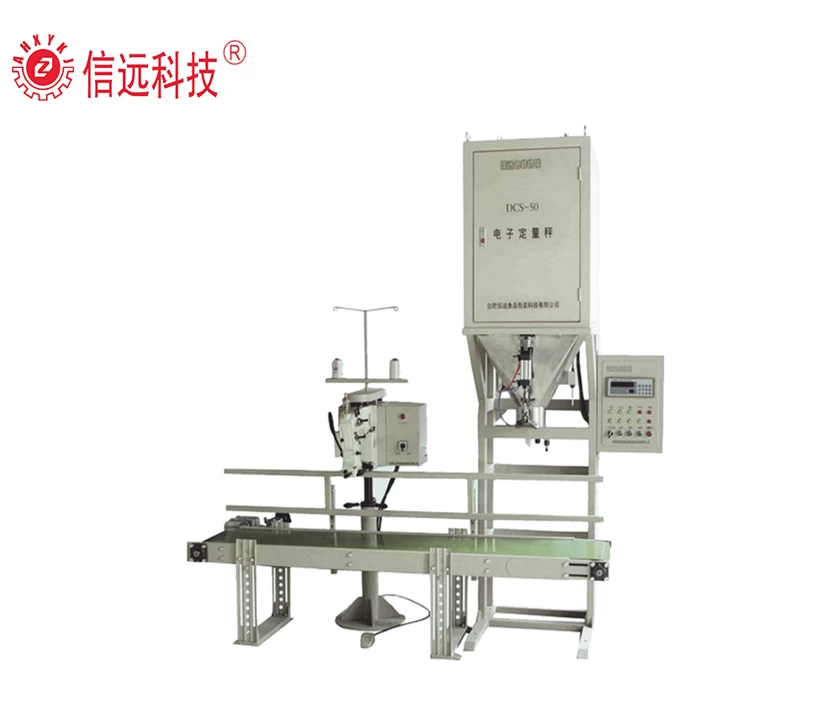

DCS-50K type semi automatic granule packing machine is used for weighing and packing for granule material into big bag from 5kg to 50kg. It can achieve automatic material weighing, manual packing and sewing. Compared with fully automatic type, it is much lower cost while with similar speed, specially good for low labor cost area.

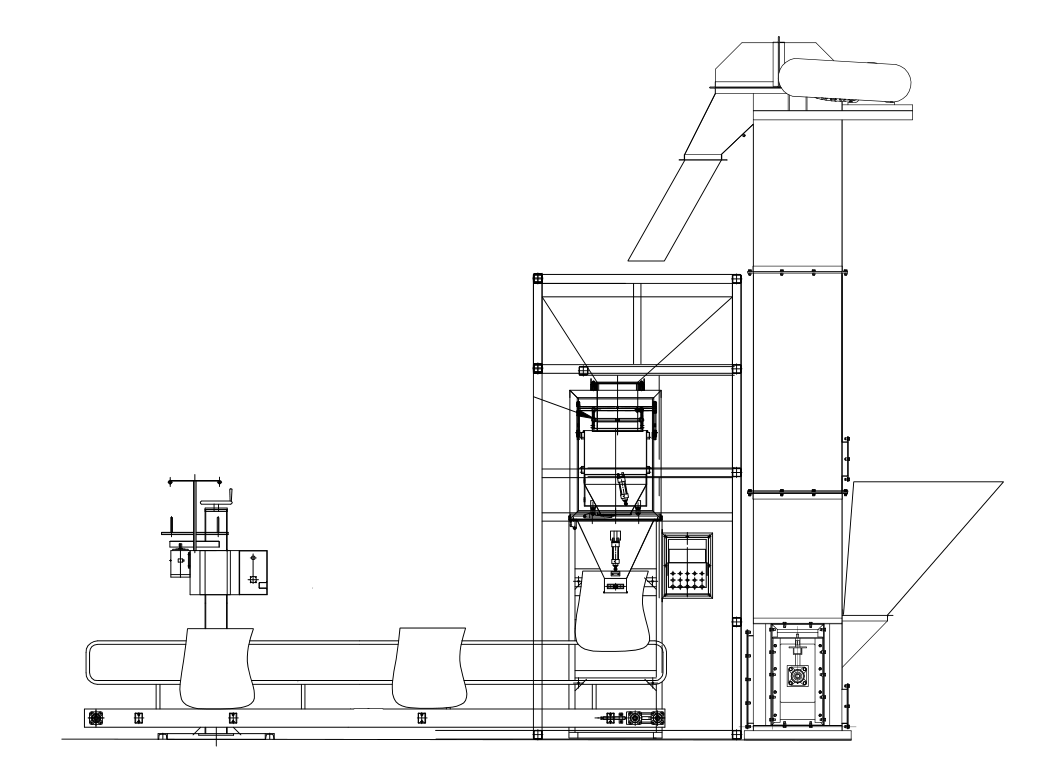

Unit configuration: material silo, digital weigher, packing system, conveying system and sewing system

Material: contact parts S.S 304 (or S.S 316L if need)

Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc

Packing speed: 5~10 bags/min

Filling range: 5kg~50kg

Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.

semi automatic granule packing machine

Did you find our  machine interesting?

We will help you with selecting the machine, and suggest tailor-made solutions.


notice

1. provide customized design for special requirement

2. Provide optional device as per actual need


Technical Data:

Model DCS-50K/WT DCS-50K/DT DCS-50K/ST
Weighing range (kg) 10~50 10~50 10~100
Accuracy ±0.2%
Packing speed(bags/h) ≥300 ≥360 ≥600
Number of hoppers 0 1 2

Transportation&After Service

◎All the machine shall be packed in Export wooden box;

◎Engineers are available to do service abroad;

◎Training &Technical instructing lessons shall be provide during installation;

◎Video instruction installation is also available if customer have professional technical engineers;

◎One year warranty is provided for customer.
