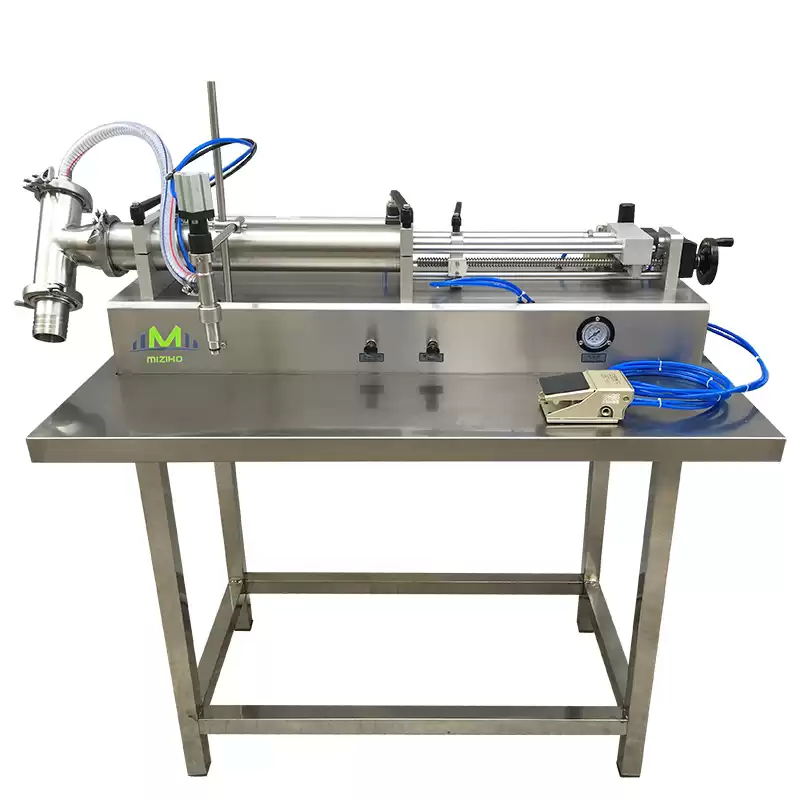

Semi automatic Alcohol hand sanitiser gel filling machine
Customized And OEM Service Available
Product decription:
This semi-automatic filling machine was developed on the basis of a new design and added some additional functions based on similar foreign products. Fill is a reference and adds some additional features.It's very suitable for Alcohol hand sanitiser gel filling.
Product Paramenters
|
Model
|
Filling volume
|
Filling speed
|
Air supply
|
|
MZH-5
|
5-60ml
|
0-45 bot/min
|
0.2-0.6 mpa
|
|
MZH-10
|
10-120ml
|
0-35 bot/min
|
0.2-0.6 mpa
|
|
MZH-25
|
25-250ml
|
0-30 bot/min
|
0.2-0.6 mpa
|
|
MZH-50
|
50-500ml
|
0-30 bot/min
|
0.2-0.6 mpa
|
|
MZH-100
|
100-1000ml
|
0-25 bot/min
|
0.2-0.6 mpa
|
|
MZH-250
|
250-2500ml
|
0-18 bot/min
|
0.2-0.6 mpa
|
|
MZH-500
|
500-5000ml
|
0-12 bot/min
|
0.2-0.6 mpa
|
Performance and Feature
*With new-designed figure,and compact structure.
*Widely used in food,medicine,grease,pesticide,chemical and cosmetic industries.
*The machine is made of imported mechanical parts,pistons,cylinders,stainless steel and PTFE..
It is more simplified and more convenient for the operation. precision adjustment. filling volume adjustment. equipment cleaning.
maintenance of the products, etc.
It uses pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of
anti-explosion environment.
It can fill various liquids,such as shampoo, lotion, etc.
