Semi-Automatic Battery Capacitor Grooving Machine
Product Specification
CE Certificate semi-auto grooving machine for all kinds of cylindrical battery 18650, 26650, CR123A and super capacitor with changing die.
Functional overview：
It is used in the channeling process of cylindrical battery that is produce in laboratory and enterprise in small scale.
Functional characteristic：
The channeling molds that are equipped with standard 18650 cylindrical battery；
It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by related molds；
The dimension of the channeling can be adjusted slightly，the size is small，which makes it easy to operate and the appearance is attractive；
The channeling is high precision and the dimension is stable.
|
Model
|
TOB-PGC1W
|
|
Power source
|
AC200V/50HZ
|
|
Total power
|
200W
|
|
Air source
|
0.5-0.7Mpa
|
|
Depth of the channeling
|
1.2-2.0mm（adjustable）
|
|
Width of the channeling
|
1.5mm（The thickness of the hob can be customized）
|
|
Machining accuracy
|
±0.1mm
|
|
Hob life
|
>One million times
|
|
Capacity
|
semi-automatic 400 ea/h
|
|
Channeling molds
|
18650,26650，etc.
|
|
Channeling time
|
0-99s(adjustable)
|
|
Dimensions
|
720（L）*380(W)*480(H)mm
|
|
Weight
|
52Kg
|

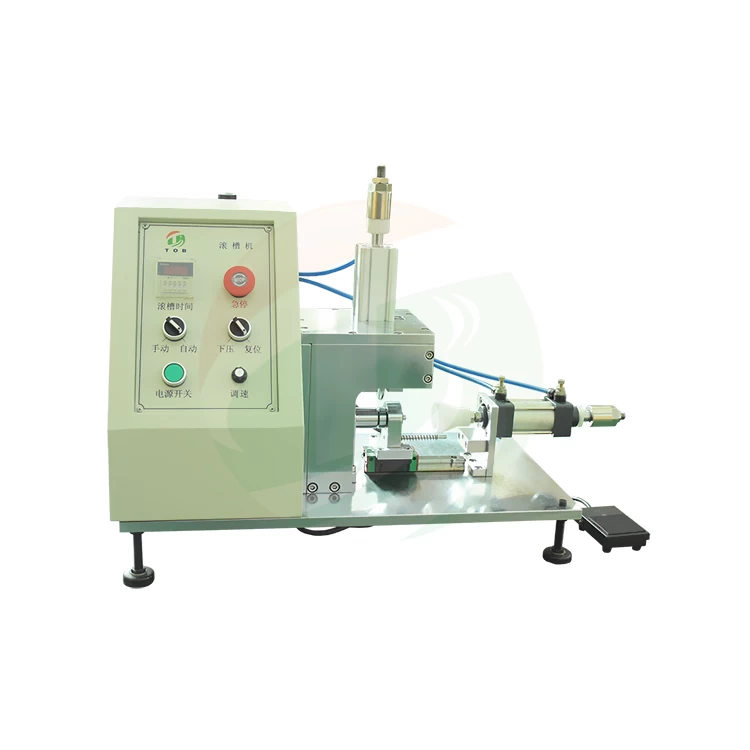

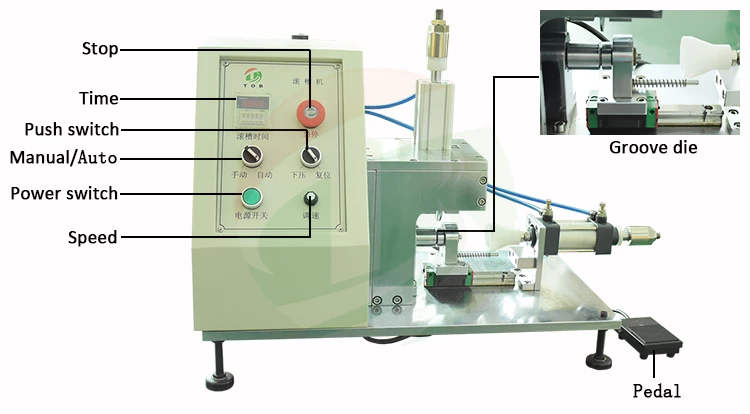

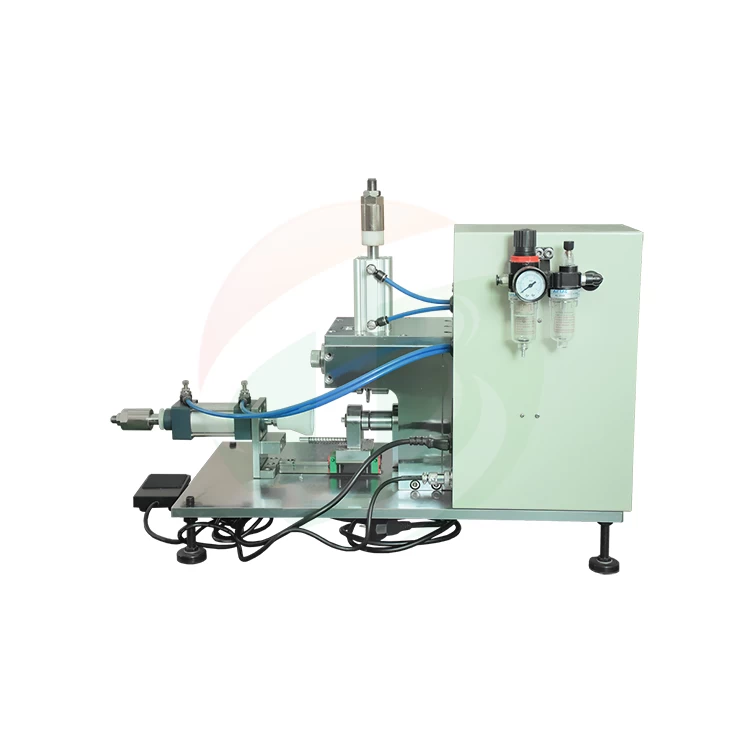

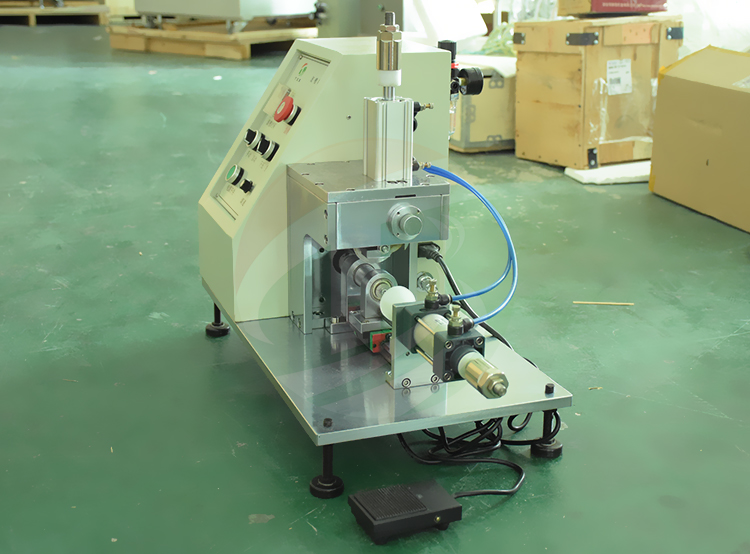

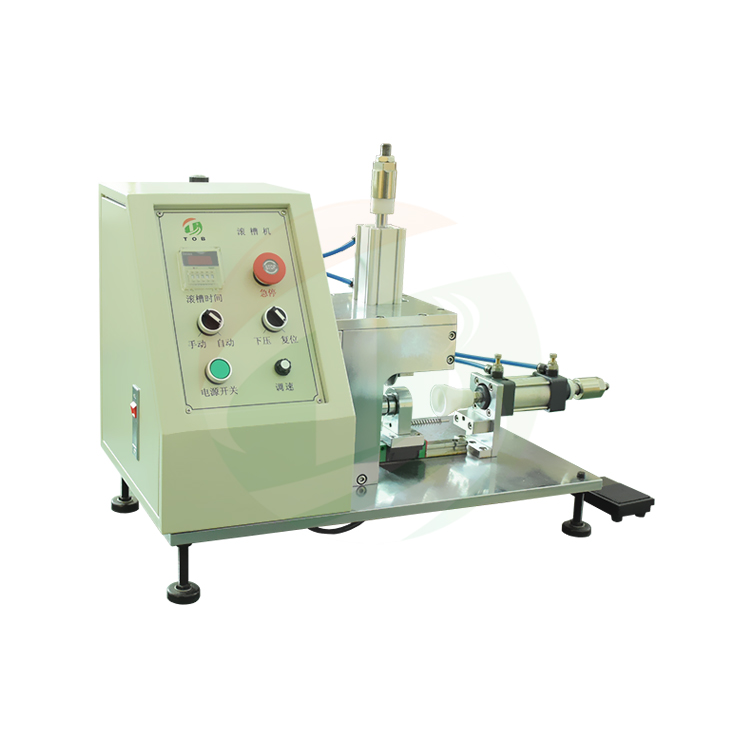

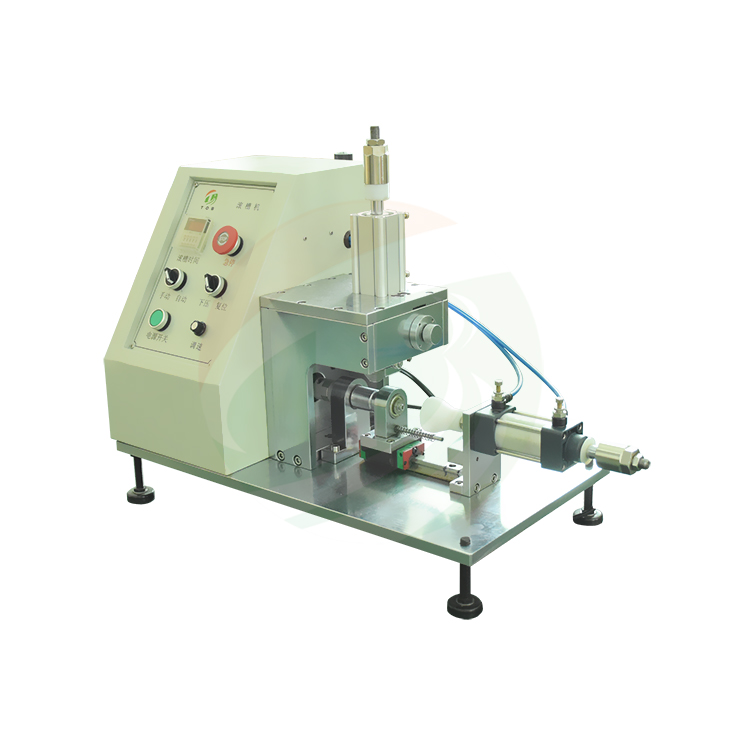

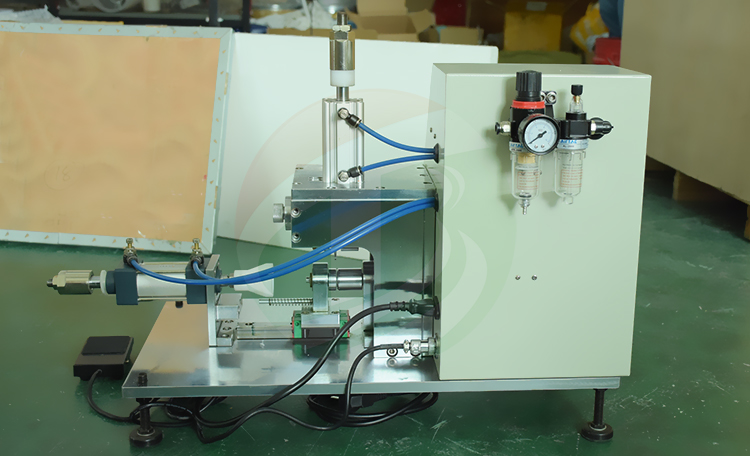

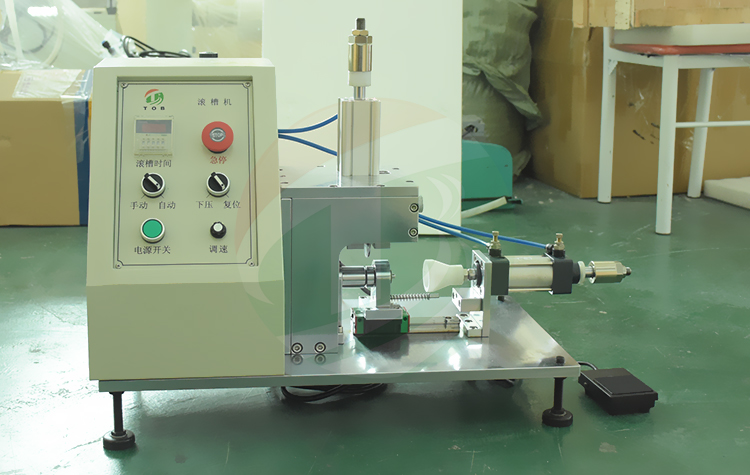

Product Images
