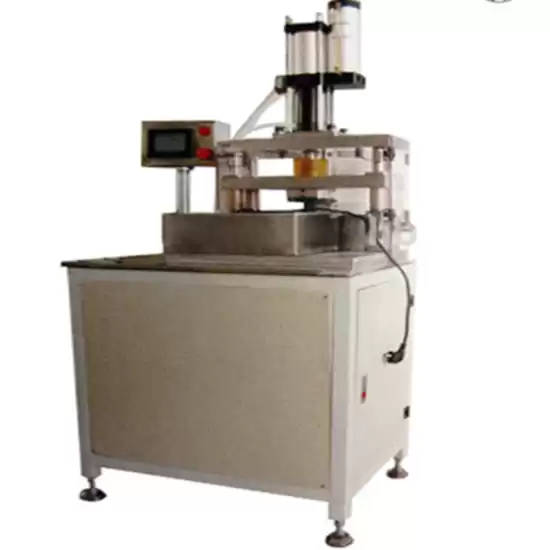

Semi-automatic Crimping Machine for Sealing All Types of Cylinder Cases

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Specifications:

TMAX-PX-OE-A18 is a Semi-automatic crimping machine for sealing all types of cylinder cases in battery R&D labs.

It is with Touch screen and safety protection device, can finish the sealing process quickly and semi-automatically.

Technical Parameter：

Model

Electric Cylinder Cell Sealing Machine TMAX-PX-OE-A18

Source voltage

AC110V/220V, 50/60HZ customized

Power

200W

Warranty

Two years limited with lifetime support

Air source

0.6-0.8Mpa

Crimping Dies

Suitable diameter size : φ14-26mm

Suitable Height : 35-70mm

Wish changing Die can sealing all kinds of cylinder battery such as

CR123 /18650 / 26650 / 32650 / AA /AAA

Structure

Semi-auto sealing for cylinder cell

With Touch screen and safety protection device

Output

25-35pcs/min

Application Notes

Customized die for other cylindrical cell types is available upon request

It is necessary to groove the opening end of the cylindrical case

by using the TMAX-GC650 grooving machine before sealing the cap

Each type of cylinder cell can only be sealed specifically by certain model

of equipment. Please select the type of cylinder cell in the Product Options

drop box to check the model number and price for the corresponding

crimping die of each cylinder cell type

Battery Crimping Machine

Product Tags cylindrical cell grooving machine cylindrical cells cylindrical load cell cylindrical lifepo4 cells cylindrical battery cells split test cell for cylindrical cell split test cell for cylindrical cell cylindrical lapping machine cylindrical engraving machine

Model	Electric Cylinder Cell Sealing Machine TMAX-PX-OE-A18
Source voltage	AC110V/220V, 50/60HZ customized
Power	200W
Warranty	Two years limited with lifetime support
Air source	0.6-0.8Mpa
Crimping Dies	Suitable diameter size : φ14-26mm Suitable Height : 35-70mm Wish changing Die can sealing all kinds of cylinder battery such as CR123 /18650 / 26650 / 32650 / AA /AAA
Structure	Semi-auto sealing for cylinder cell With Touch screen and safety protection device
Output	25-35pcs/min
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to groove the opening end of the cylindrical case by using the TMAX-GC650 grooving machine before sealing the cap Each type of cylinder cell can only be sealed specifically by certain model of equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding crimping die of each cylinder cell type
