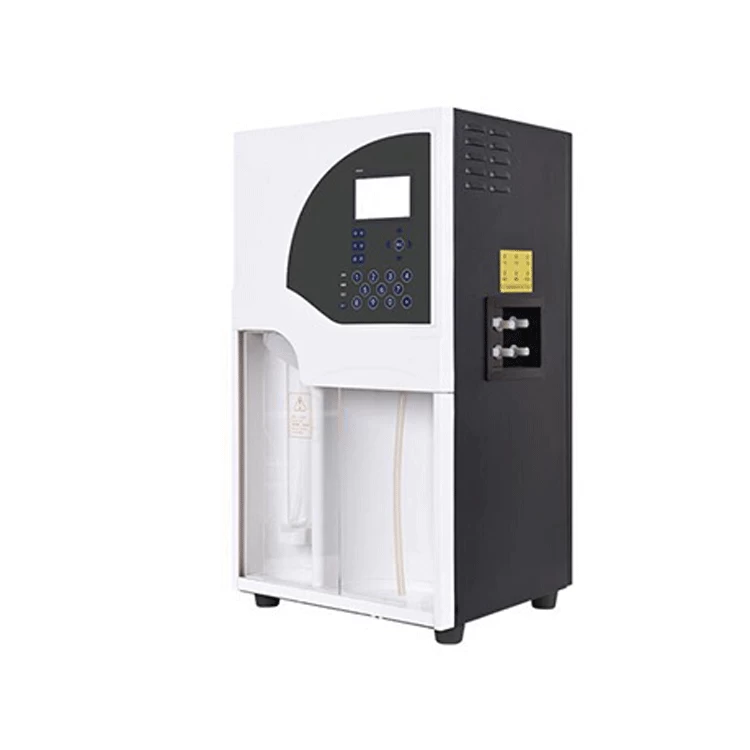

Features for OLT-KN-6
* 4.3 inch LCD display.
* Manual/automatic mode can be switched freely.
* Automatic accurate distribute alkali and boric acid solution.
* Automatic fault detection function, audio and visual alarm system.
*Tubes and pipes automatic emptying.
* Multi-protection function, such as safety door, tube position protection, cooling water testing protection, etc.

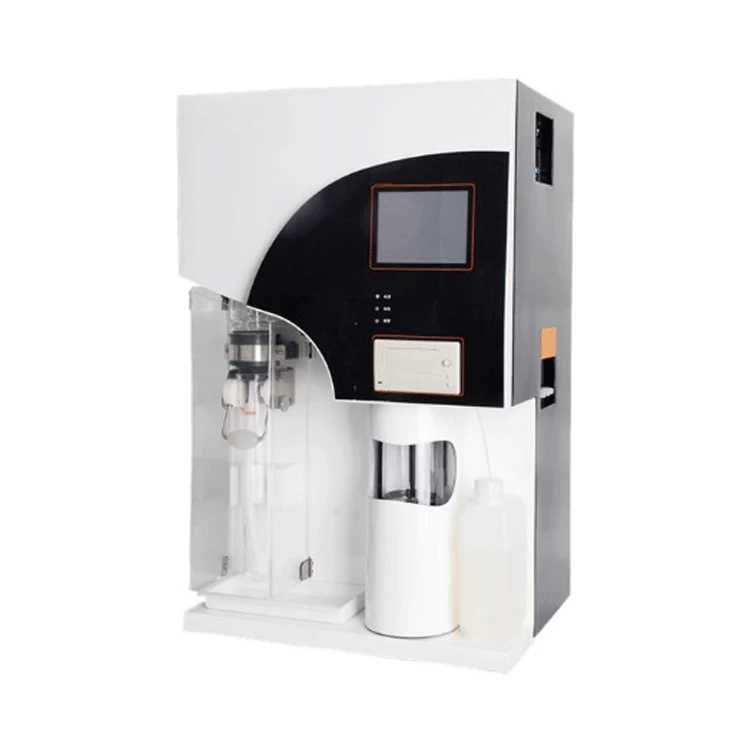

Features for OLT-KN-8 and OLT-KN-9
* Large LCD touch screen.
* Colorimetric titration device.
* Sample method can be edited and stored.
* Automatic distillation, titration, calculation, printing, drain and cleaning function.
* Dual distillation mode, can adjust the sequence of solution adding.
* Standard built-in printer, optional USB interface for OLT-KN-8 Model.
|
Model
|
OLT-KN-6
|
OLT-KN-8
|
OLT-KN-8
|
|
Water Consumption
|
1.5L/Min
|
|
Ambient Temperature
|
5~40℃
|
|
Ambient Humidity
|
80%
|
|
Measure Range
|
0.1mg~200mg
|
|
Analysis Time
|
5~10min
|
|
Recovery Ratio
|
≥99.5%
|
|
Sample Amount
|
Solid ≤6g;
Liquid ≤16ml
|
Solid ≤ 5g;
Liquid ≤20ml
|
|
Burette Accuracy
|
/
|
1.0μL/ step
|
2μL/ step
|
|
Reproducibility
|
/
|
±0.5%
|
±0.5%
|
|
Consumption
|
2000W
|
|
Power Supply
|
AC110/220 V±10%, 60/50Hz
|
|
Packing size(W*D*H)
|
655*528*880mm
|
Main body: 585*525*900mm
Accessories: 605*600*355mm
|
455*391*730mm 38kg
|
|
Gross weight
|
45Kg
|
Main body: 52.7kg
12.5kg
|
|
|
Functions List
|
OLT-KN-6
|
OLT-KN-8
|
OLT-KN-9
|
|
Variable Steam Generator
|
●
|
●
|
●
|
|
Cooling Water Pressure Monitor
|
●
|
●
|
●
|
|
Cooling Water Temperature Monitor
|
|
●
|
●
|
|
Automatic Alkali Solution Adding
|
●
|
●
|
●
|
|
Automatic Dilute Water
|
●
|
●
|
●
|
|
Auto Solution Adding
|
●
|
●
|
●
|
|
Tube Emptying
|
●
|
●
|
●
|
|
Removable Drain Tray
|
●
|
●
|
●
|
|
Safety Door
|
●
|
●
|
●
|
|
Tube on Position Sensor
|
●
|
●
|
|
|
Tube Replacement Sensor
|
●
|
●
|
|
|
Colorimetric Titration Device
|
|
●
|
●
|
|
Result Calculation
|
|
●
|
●
|
|
Result and Data Storing
|
|
●
|
●
|
|
Built-in Printer
|
|
●
|
|
|
Automatic fault detection function
|
●
|
●
|
●
|
|
Titration While Distillation
|
|
●
|
|
