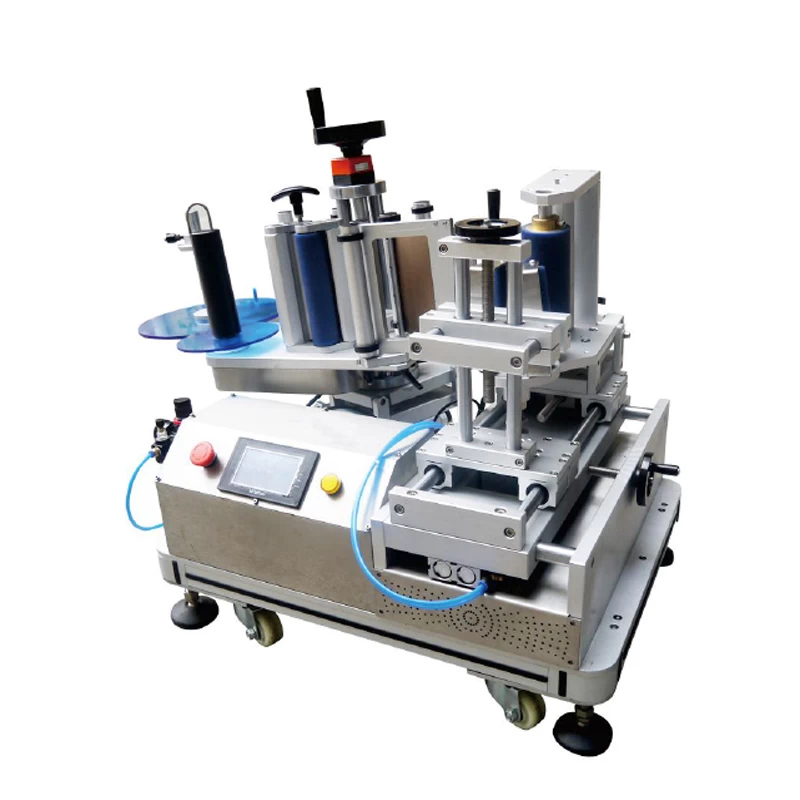

Semi automatic vertical glass and plastic round bottle labeling machine

This semi automatic vertical glass and plastic round bottle labeling machine applicable labels: stickers, adhesive film, electronic monitoring code, bar code and so on.



Semi automatic vertical glass and plastic round bottle labeling machine


Customized And OEM Service Available

Round Bottle Labeling Machine



Scope of application

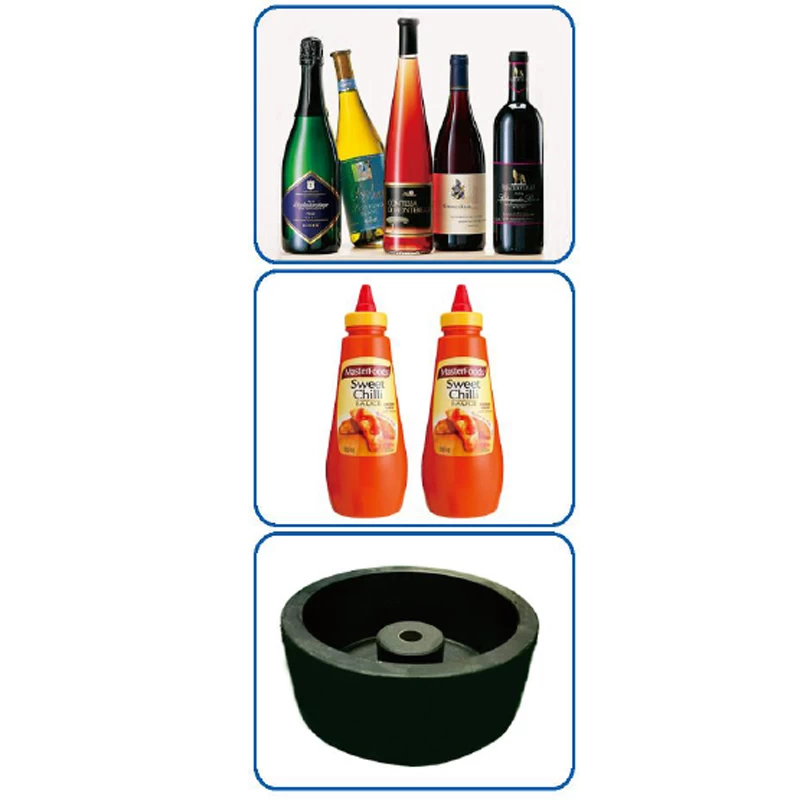

This semi automatic vertical glass and plastic round bottle labeling machine applicable Products: Products that need to be labeled/coated on the circumference and cone can be labeled with single or double labels.

The label sticking machine applications: widely used in food, daily chemical, wine, medicine, toys, cosmetics, electronics, hardware, plastic and other industries.

Examples are: labeling of wine bottles, labeling of shampoo bottles, double labeling of wine and so on.


Functional characteristics

1. flexible application, bottle vertical labeling, and spacing can be flexibly adjusted.

2., the standard is high and the stability is high. PLC+ subdivision stepper motor is used to drive the standard.

3. High-quality labeling effect, with product label correction identification, high coincidence between the label head and tail, no wrinkles, no bubbles;

4. Easy adjustment, one-button switch of various functions, simple and fast label switch of different labels, improve efficiency;

5. Safe and tidy, in line with GMP production needs, the main materials are stainless steel and high-grade aluminum alloy, strong and durable;

6. the calibration mark and sensor are imported brand, with high sensitivity, stable performance and durability.

7. production management is convenient and efficient, with label counting, power saving mode, photoelectric tracing tag function;

8. Optional functions: hot code/jet code function, circumferential positioning function, automatic induction (customized according to customer requirements).


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

Labeling accuracy

±1mm

Applicable label length

20~280mm

Label out speed

5~25 m/min

Applicable label width

20~150mm

Labeling speed

20~40pcs/min

Applicable product diameter

Ø20~Ø120mm

weight

110kg

Applicable product height

30~250mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

800 w

Applicable to marking inner diameter of volume

Ø76mm

equipment size

1080*700*820mm
