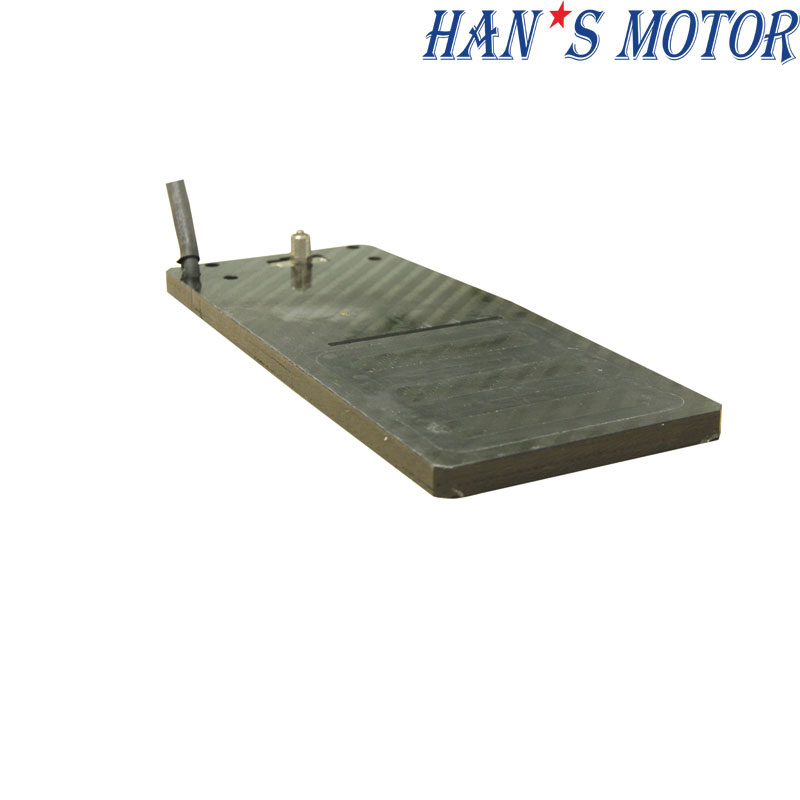

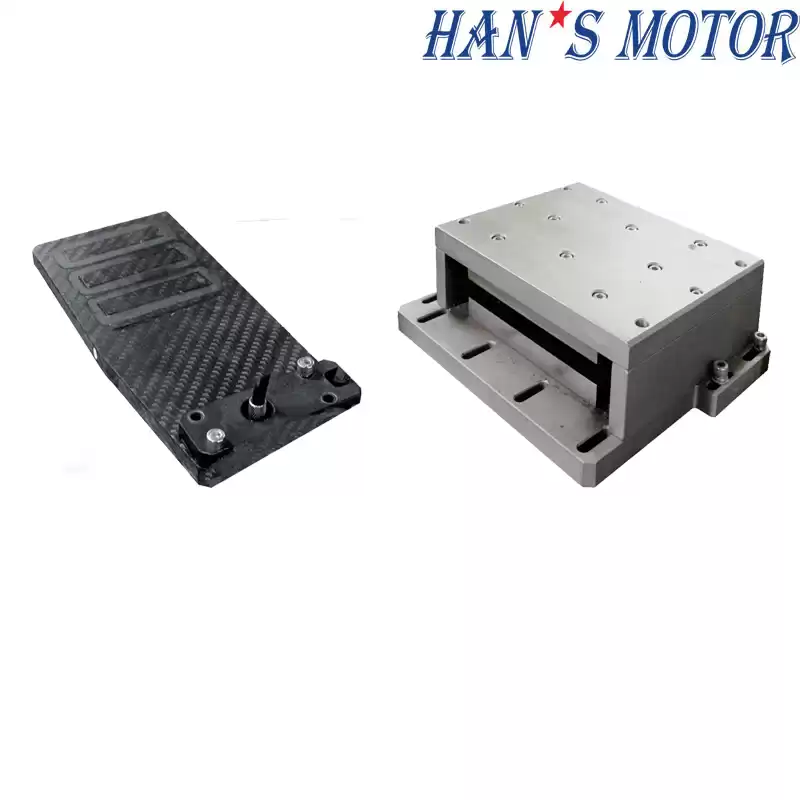

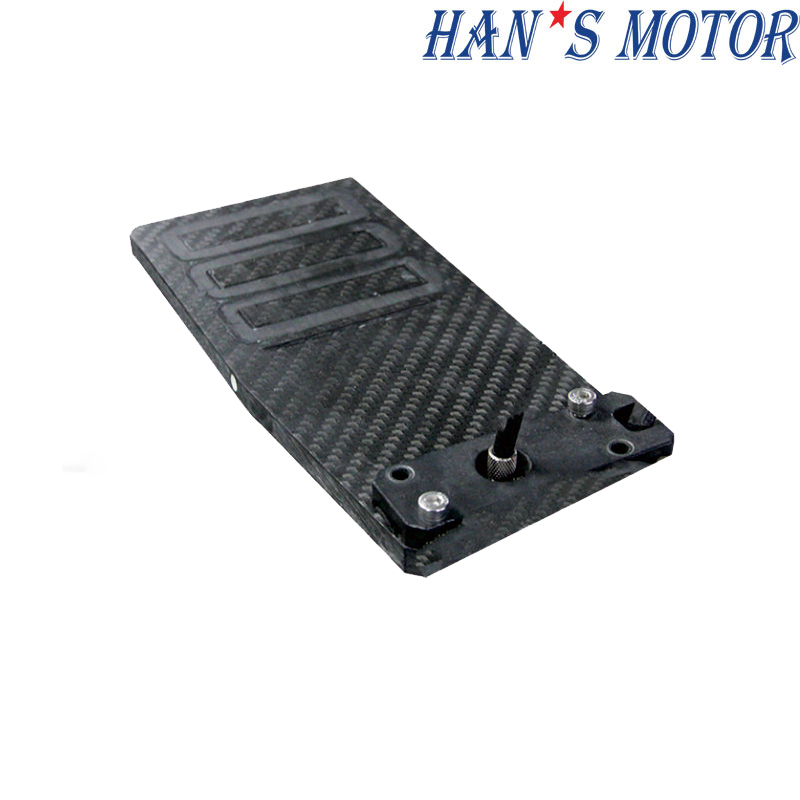

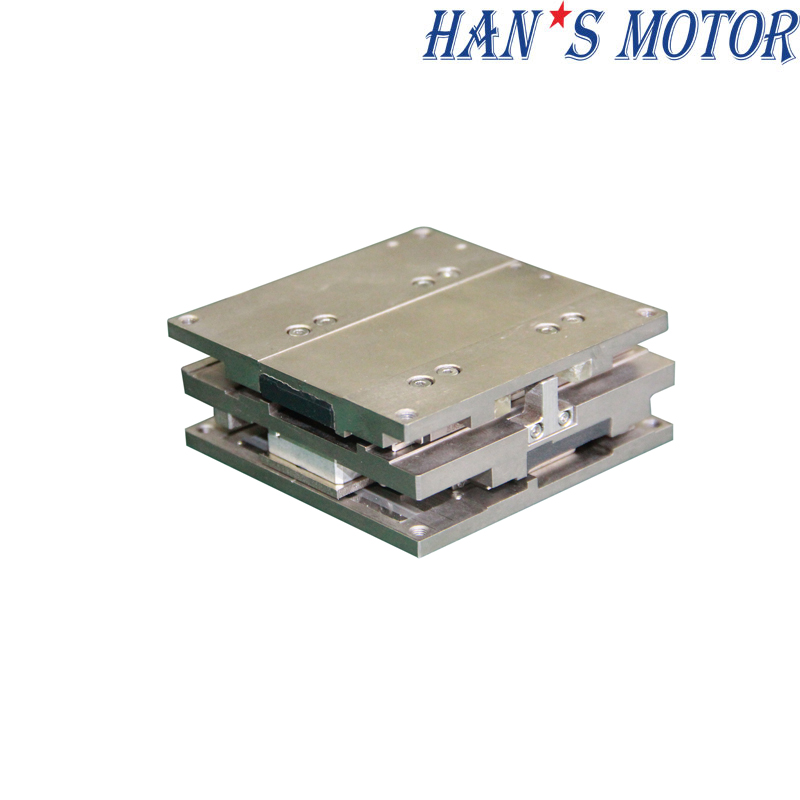

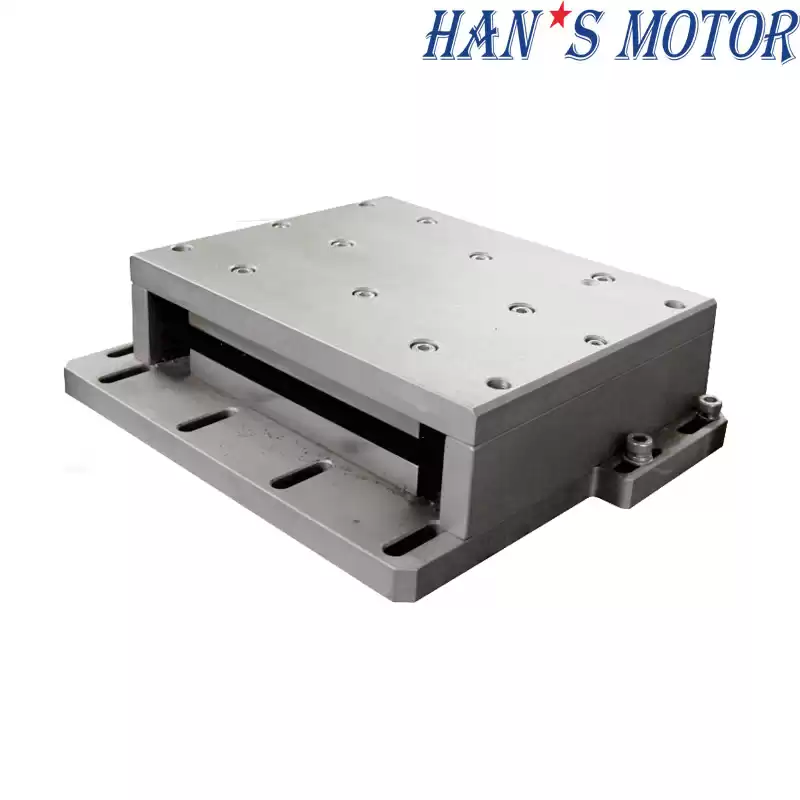

Product name：Semiconductor Packaging Equipment Special Motor-Carbon Fiber Board Linear Motor
Specifications
Mover Spec.：LSMU910xxxx-x-H-AC
|
101A-P
|
102A-P
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
|
|
Stroke
|
S
|
mm
|
70
|
80
|
Accelaration
|
a
|
m/s²
|
200
|
200
|
Continuous Force (Tmax）
|
Fc
|
N
|
206
|
130
|
Peak Force
|
Fp
|
N
|
2062
|
1300
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
21.4
|
16.6
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
93
|
61
|
Continuous Current
|
Ic
|
Arms
|
2.5
|
2.5
|
Peak Current (1S)
|
Ip
|
Arms
|
25.0
|
25.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
82.5
|
52.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
27.5
|
17.3
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
7.0
|
6.5
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
8.6
|
4.2
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
60.0
|
48.0
|
Magnetic Attraction
|
Fa
|
kN
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
330
|
330
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
4.1
|
6.5
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
0.1
|
0.6
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
4.5
|
7.2
|
Mover Mass
|
Mp
|
Kg
|
0.7
|
0.5
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
28
|
20
|

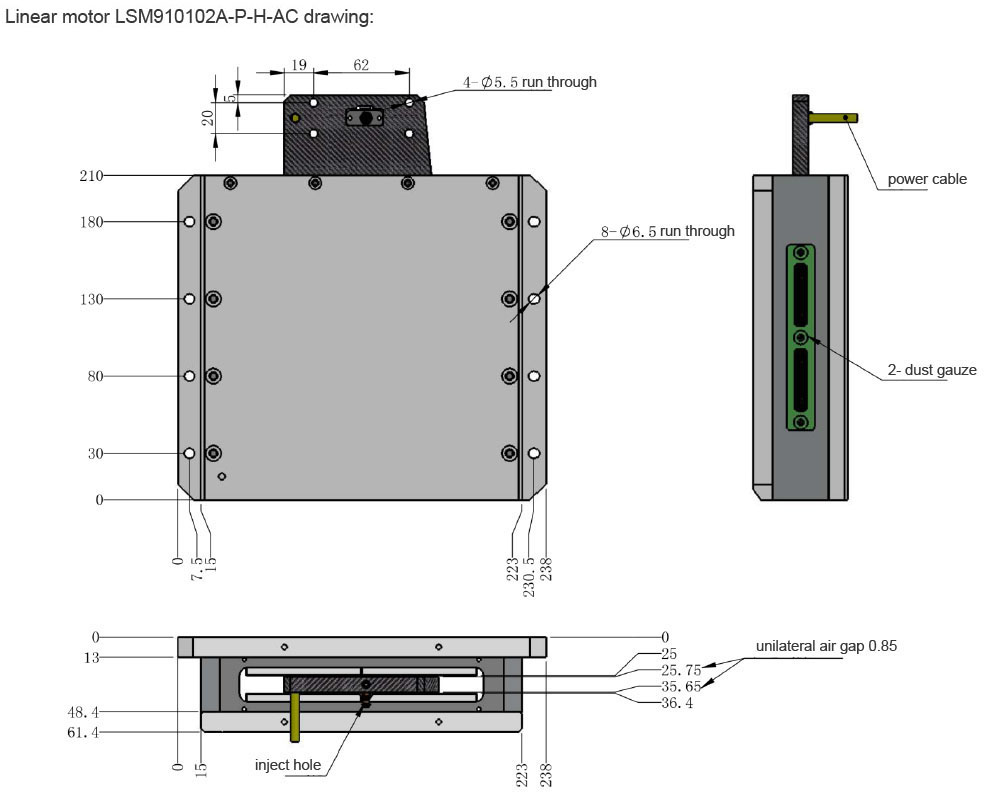

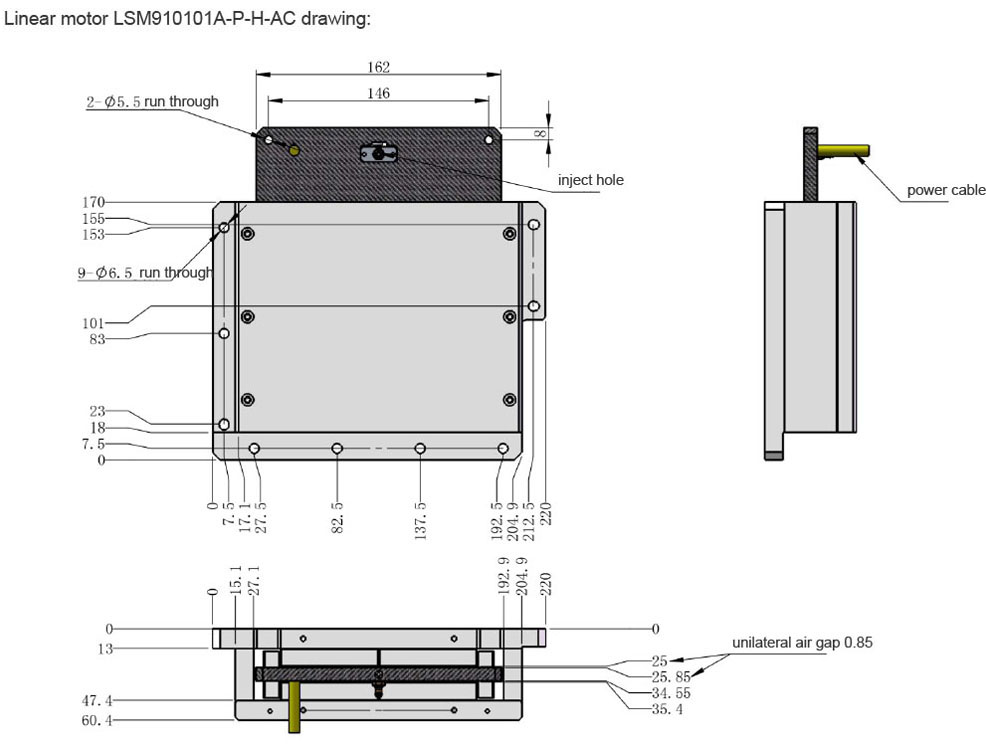

Dimension
Industry Application:

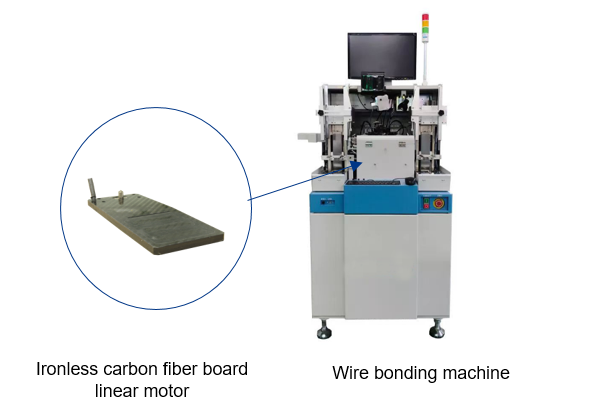

This motor mainly applied to semiconductor industry. Such as: wire bonding machine.
Advantages: ultra-high acceleration (20G), high rigidity, high bandwidth
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
