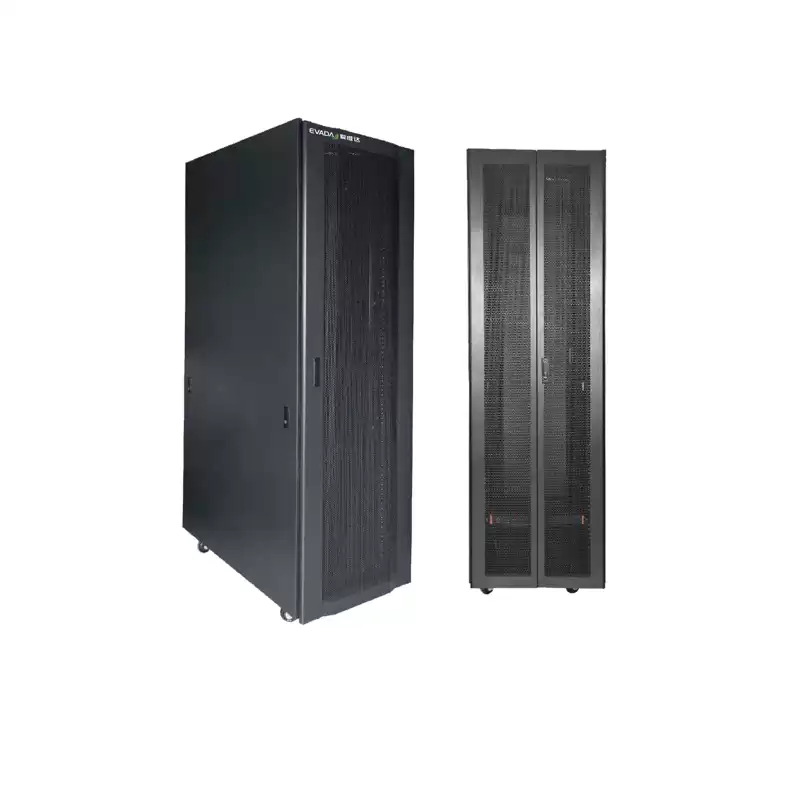

Server Cabinets

Product Name: Cabinets for Servers



Product Introduction:
Comply with ANSI / aiars-310-d, din41491: Part1, iec60297-2, din41494: Part7, GB / t3047.2-92s and other standards and specifications;

The load-bearing parts of the cabinet body shall be SPCC 2.0mm high-quality cold-rolled steel plate, the front and rear door plates shall not be less than 1.2mm, and others shall not be less than 1.0mm;
The surface adopts degreasing, vitrification and electrostatic spraying technology; Overall protection grade IP20; Honeycomb hexagonal high-density mesh door with ventilation rate of 75% and maximum opening angle > 135 °; The maximum static load can reach more than 1800kg and pass the Theil bearing capacity test.
The front and rear doors and side door keys are universal, and the front and rear door locks can be quickly replaced with password locks to improve the security of equipment inside the cabinet; The front and rear brush inlet holes on the top are designed to effectively prevent dust from falling into the cabinet, and the wiring channel is flexible;

Multiple cable management channels are reserved at the bottom of the cabinet, which can be flexibly adjusted as needed; Passed the seismic test of Theil 8 and 9 intensity;

A wide range of optional accessories.

Product Tags Server Cabinets          cabinet for data centers          19 inch cabinet
