Features

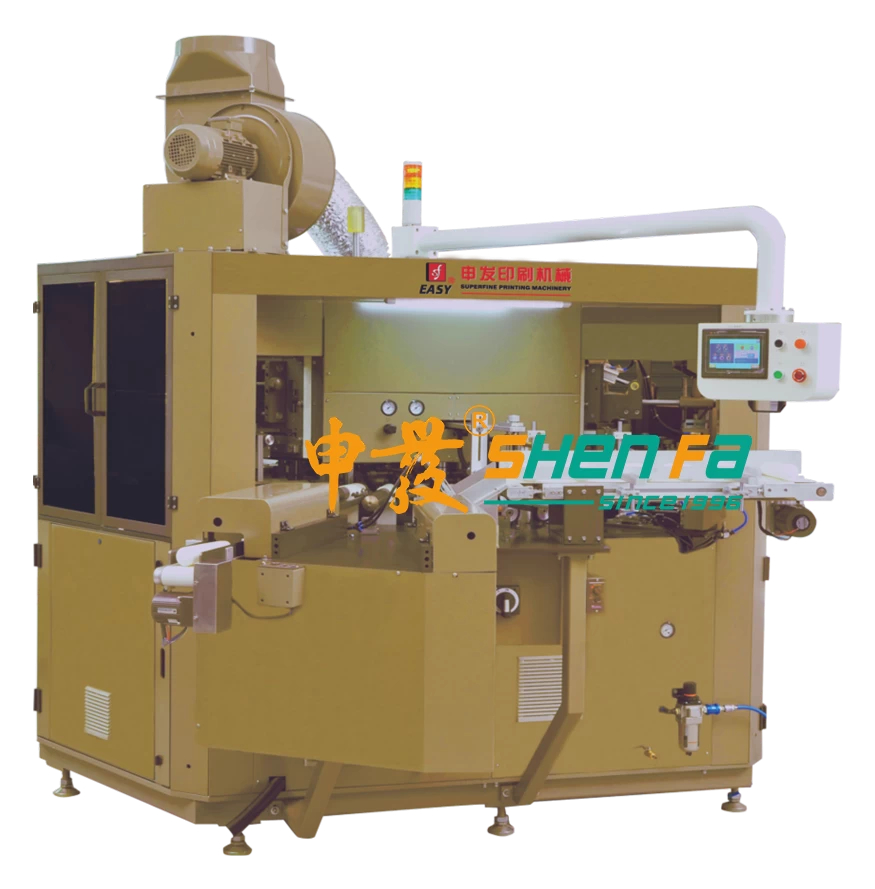

1.This series screen printing machine can print tubes and jars from one color to six color, equipped automatic loading and unloading systems, mechanical devices combined with PLC control.

2.Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc; Mechanical parts made by CNC dirtctly from CAD design.

3.Adopted touch screen interface. Quick setup & quick toolings change.

4.Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device and auto separating device for faulty printing.

5.Auto optical registration system, pre-printing & after printing coating systems. Can be equipped by order.

Technical data

Model:SF-SR660

Product size : φ（16-60）x H(50-220)mm-----Tube

Max. speed:60pcs/min

Air pressure:5-6bar

Dimensions:3000x2400x2600mm

Weight:4500kgs

Power:AC 380V 50/60Hz 35Kw

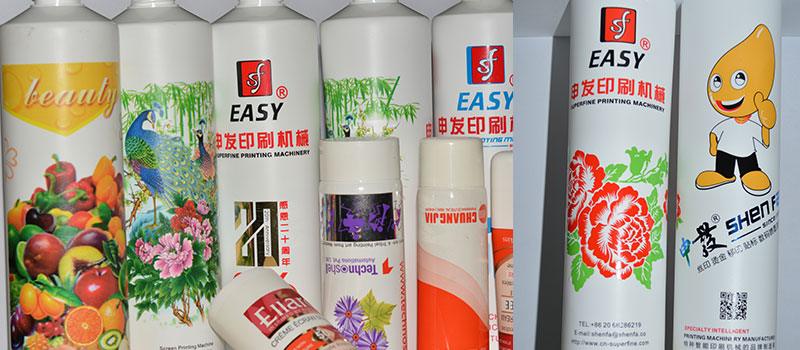

Printing samples

Machine running video
