SFS-GM-04B Pile Mounting System

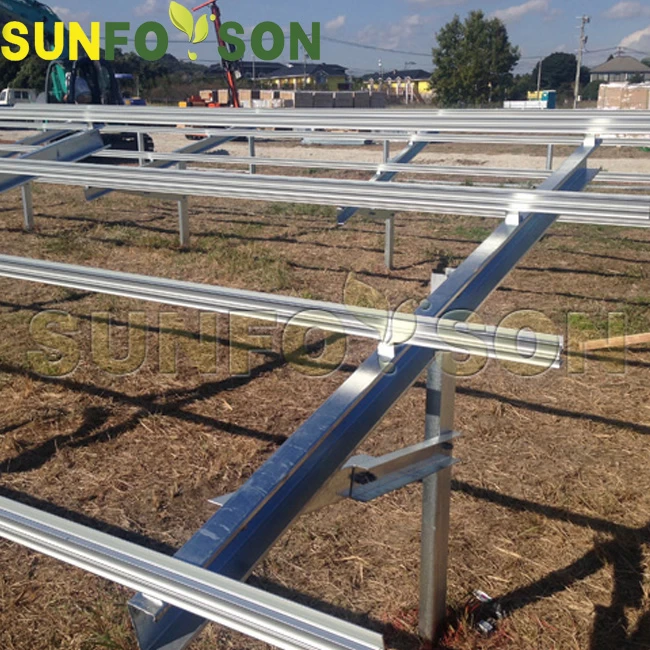

SunRack pile ground mounting system is applied for large solar project panel installation on a non-sandy ground.For SunRack pile ground mounting system,the unique post can be easily driven into the ground 1~2 meters by pile machine,then you can mount the pre-assembled beam structure and other mounts easily.





Using SunRack , Enjoying Sunshine!


Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.



1. Lower cost, Incomparable value ;

2. Faster installation, Flexible attachment ;

3. More Perfect Service, Complete technical support ;

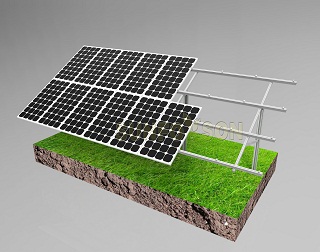

SFS-GM-04B SunRack Pile Solar Mounting Support

SunRack  SFS-GM-03 galvanizing steel solar mounting brackets are widely applied in large-scale solar power plant.It can suitable for most kinds of ground conditions.

     Installation site: open ground

     Applicable Temperature:50°~100°

     Wind Load: 130mph(60m/s)

     Snow Load: 30psf(1.4kN/m2)

     Applicable Module: Framed

     Module Orientation: Landscape or portrait

     Code Compliance:AS/NZS 1170;

     Material: Q235 support and aluminum parts

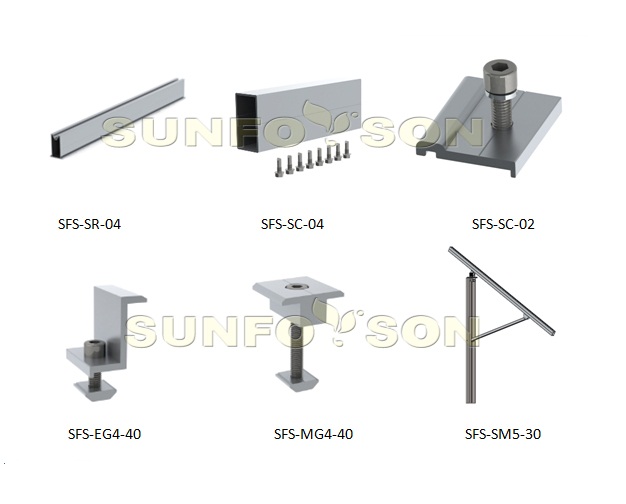

Overview of system components







1. Easy Installation

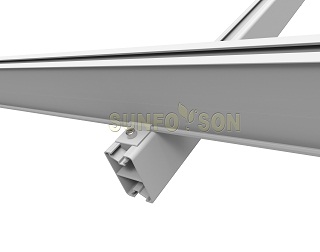

The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The G-Screw module and unique rail extension method allow greatly reduced installation times.




2. Great Flexbilitity
With the Sunforson ground mounting,framed or frameless photovoltaic modules can be easily mounted on ground.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.


3.  High Accuracy

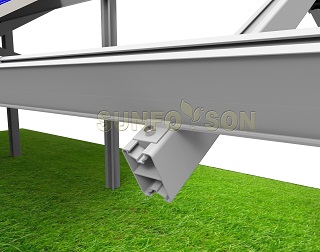

Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.







A Full Commitment To Quality

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
