Application:;
It;is suitable for powder like flour, ground peper, barley powder, ground cofee, cocoa powder;etc.
;Features:;
1.;Easy operation and adjustment, low maintenance costs;
2.;Multiple bag types;
3.;No bag no feeding;
4.;Interlock system;
5.;Machine parts in direct contact with products are made of SUS304stainless steel.
;Technical data:;
|
Machine type:
|
Zip Bag Packing Machine Series
|
|
Machine model:
|
SG-300F
|
|
Machine name:
|

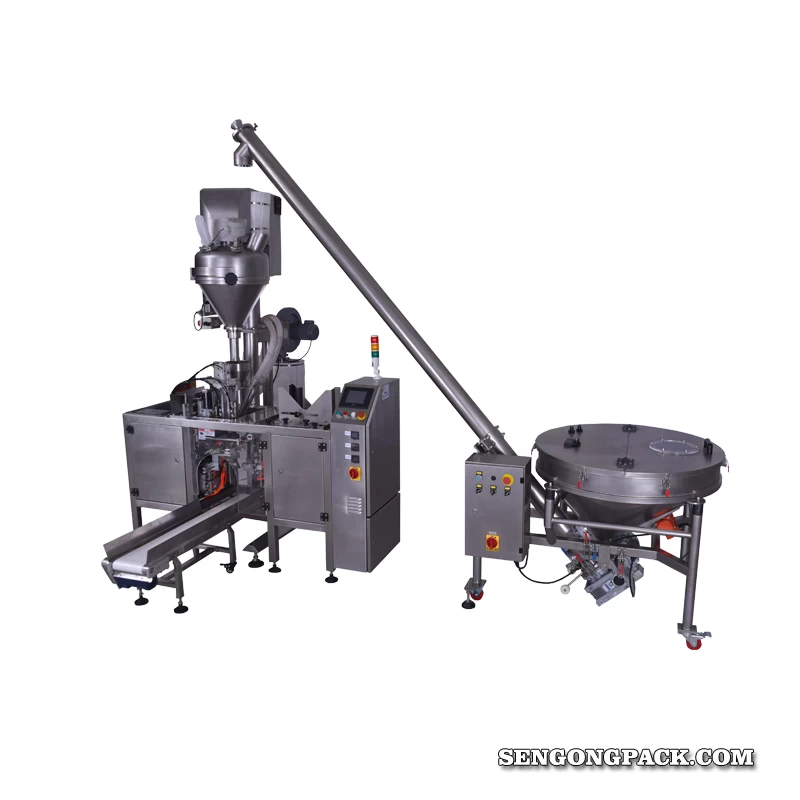

Automatic Doy Bag Packing Production Line (with;Auger Filler)
|
|
Option device:
|
SMC cylinder; Dater code printer/Ink printer;
;Finishing equipment; Protective shield; Gas flush/vacuum; Zip opener, Gusset device, etc
|
|
Bag type:
|
3 sides seal bags; stand-up bags; zip-lock bags; gusset bags
|
|
Bag size:
|
100mm ≤ Width ≤ 300mm; 100mm ≤ Length ≤ 300mm
|
|
Packing speed:
|
5~15bags/min
|
|
Air supply:
|
0.5m3/min; 0.65Mpa
|
|
Power supply:
|
Single phase, 220V, 50Hz/60Hz, 1.5KW
|
|
Dimension :
|
Packing part: 1750*510*1600mm (L*W*H)
Loader filling part: 580*580*800(L*W*H)
|
|
Electronic parts:
|
PLC:Mitsubishi
PID Temperature Controller: Omron
Colorful Panel: Delta from Taiwan
|
|
Pneumatic parts:
|
Cylinder: Airtac from Taiwan
Vacuum Generator: PIAB from Sweden
|
|
;
|
