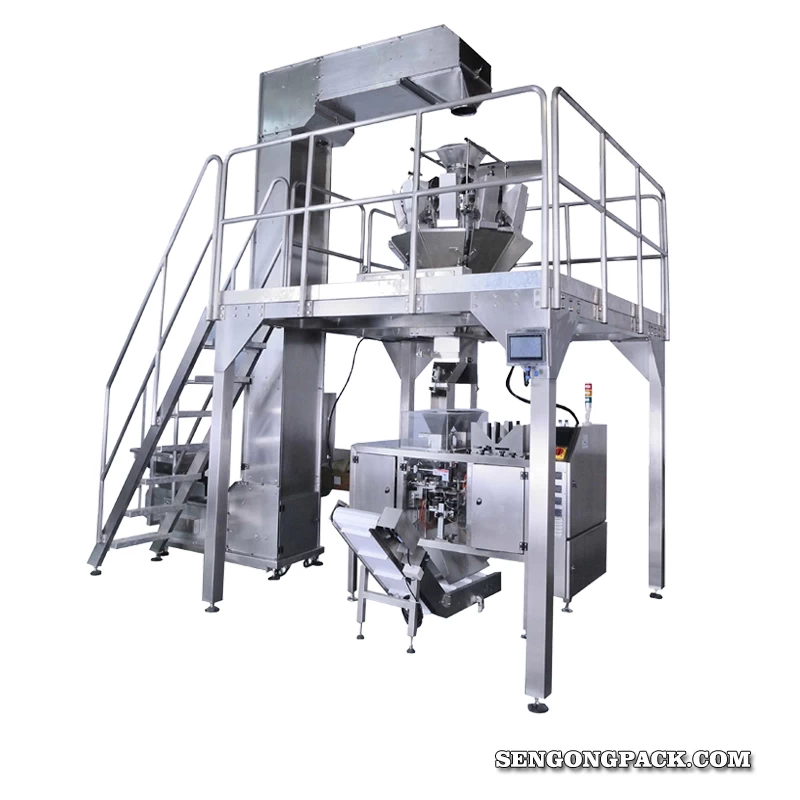

SG300SDE Automatic Specialized Doy Bag Packing Machine with 10 Head Weighers

Specialized Doy Bag Packing Machine

Facebook Twitter Pinterest LinkedIn 分享





Application:;

It;is suitable for packaging dried food like peanut, beef jerky, candy, herbs and pet food like dog treats in large volume, etc.

;Features:;
1. The machine adopts;a combintional electric scale system, ensuring the correct measurement. That is the machine will automatically pick up the best combination of each scale to approach the required bag weight.
2. The machine is integrated with international brand-name parts to guarantee its high quality and stable performance.
3. The machine can perform all function fully automatically like materials filling and feeding, weighing, bag sealing, date printing etc.
4. Machine parts in direct contact with materials are made of SUS304 stainless steel.
5. The machine is assembled with vibrator, feeder, eight head weighers, the frame with ladder, the mainframe part of SG300S, conveyor belt and date printer.

;Technical Data:

Machine type: Doy Bag Packing Machine Series
Machine model: SG300SDE
Machine name: Automatic Specialized Doy Bag Packing Machine with 10 Head Weighers
The Combinational Scale Parts: Filling range: 10-1000 grams
Weigh bucket: 1.6L
Filling speed: 65 bpm
Accuracy: ± 0.1-1.5g
Power supply: Single phase, 220V, 50Hz/60Hz, 1.5KW
Dimension : 1450*1150*1216mm (L*W*H)
Weight: Net: 320kgs, Gross: 360kgs
Features: With 7 inches touch screen;
With step motor driving;
SUS304# construction Frame & Contact Parts;
Feeder Parts: Capacity: 4-6.5m3/hour
Output height: 3.3 meter
Power supply: Single/3 Phase, 220/380V, 50-60Hz, 0.75KW
Material: SUS304 stainless steel
Vibrator: Hopper volume: 1.8L
Material: SUS304 stainless steel, carbon steel
