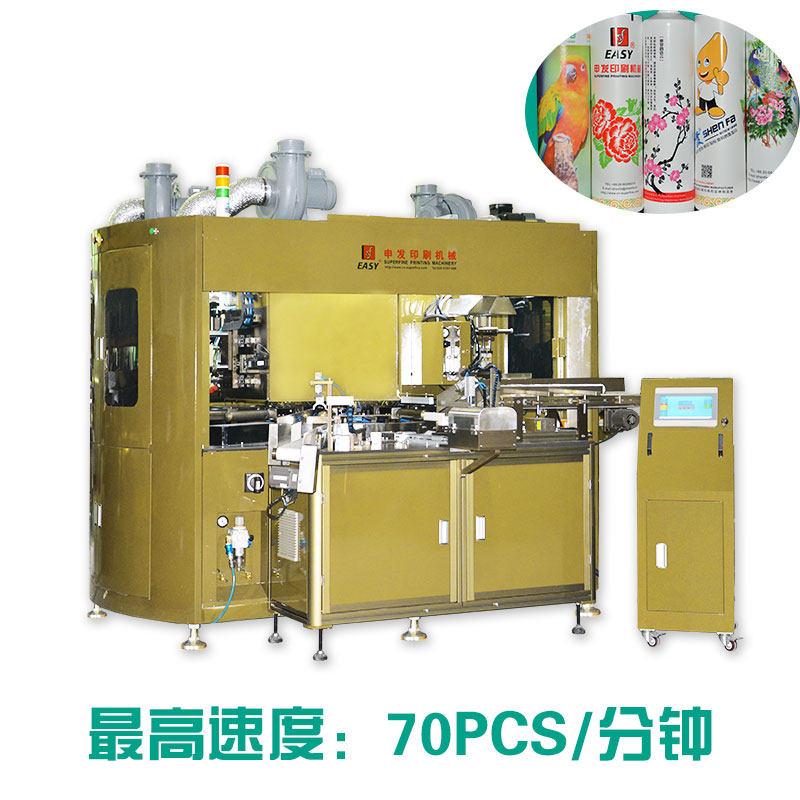

Shenfa Automatic Servo Drive Screen Printing Machine

Rotating series designed for single to six color screen printing of Tubes, Jars, Acrylic Bottle Etc. Round products.



Features

With rich experience in this industry and independent R&D control algorithm, successfully manufacture full servo automatic  screen printing and hot stamping  all in one machine.
To save more resources for customers while improving production efficiency, higher speed, accurate overprint and stable operation, convenient  debugging.
High precision guide rail and servo control system to improve the product's printing & hot stamping precision and effect.
Combined screen printing and hot stamping functions, greatly reducing the workload of the operator, shorter debugging time, more relaxed work.


Technical Data

Model:SF-SHR460

Max Print Size(mm):   L180xW300

Stamping Size(mm):   L80xW120

Max . speed(pcs/min):70

Dimensions(mm):       L2900 x W2500 x H1900

Air Pressure(bar):       6~8bar

Power:                        AC380 50/60Hz 32KW


Product highlight

1.Module design: The equipment is modular design, according to customer needs, combined screen printing and gold stamping function

2.This machine adopts module design, can combine screen printing and hot stamping according to customer’s demand.

3. Four-color screen printing & Three-color screen printer plus hot stamping can be choose according to customer demand.


Divider

Use top German brand variable frequency divider, running smoothly to improve printing precision and stability

Screen Printing Machine Screen Printer Full Automatic Screen Printing Machine Semi Automatic Screen Printing Machine Multi-color Screen Printing Machine Automatic Printing Machine


Full servo printing

The machine’s full servo design can greatly reduce the workload of the operator during changing for different products, the adjusting time of the machine is shorter, and the work is easier.

Screen Printing Machine Screen Printer Full Automatic Screen Printing Machine Semi Automatic Screen Printing Machine Multi-color Screen Printing Machine Automatic Printing Machine


Intelligent  UV power supply

High efficiency and energy saving, stable and reliable, accurate control, small volume, light weight

Screen Printing Machine Screen Printer Full Automatic Screen Printing Machine Semi Automatic Screen Printing Machine Multi-color Screen Printing Machine Automatic Printing Machine


Bluetooth technology

Convenient for the operator to control the machine at a long distance

The touch screen console adopts the latest wireless Bluetooth technology to facilitate the operator to control the equipment at a long distance to reduce the labor intensity and improve the work efficiency

Bluetooth technology


Servo system for loading and unloading

The loading and unloading are controlled by servo system, the speed is faster and more stable.

Screen Printing Machine


Front and back positioning system

Front and back positioning system, more accurate positioning, faster speed.

Front and back positioning system


PLC convenient to set up

For different products, just need to input the corresponding parameters. It can greatly reduces the workload of the debugger.

PLC convenient to set up

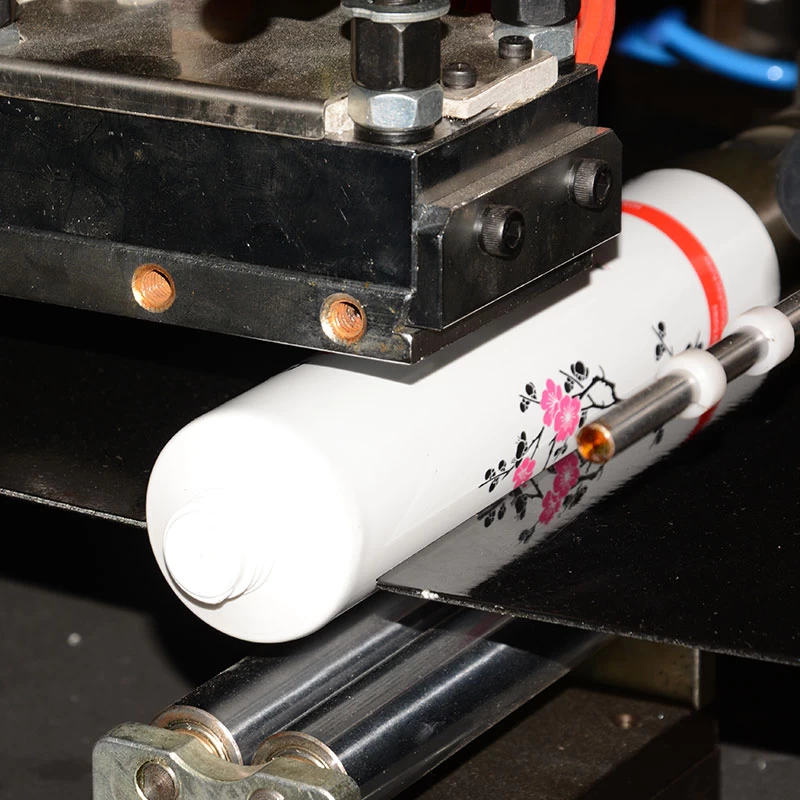

Printing samples

Sample printing
