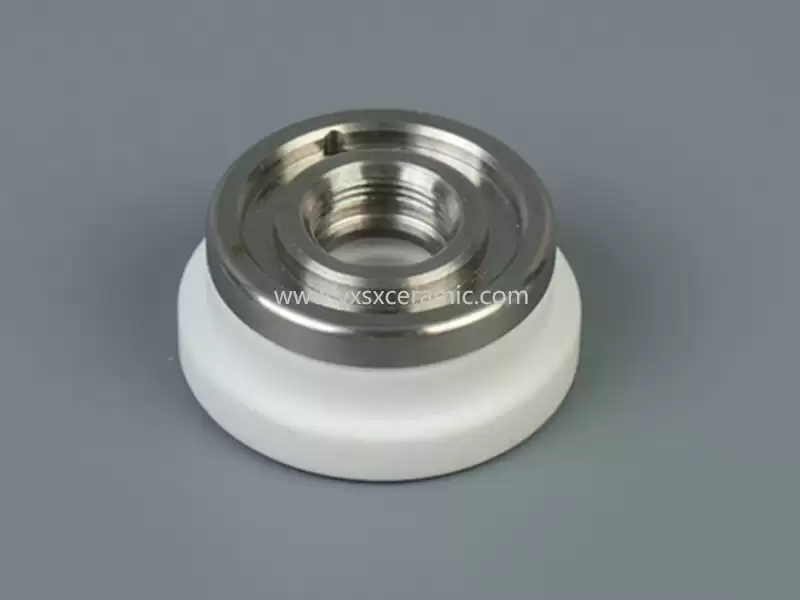

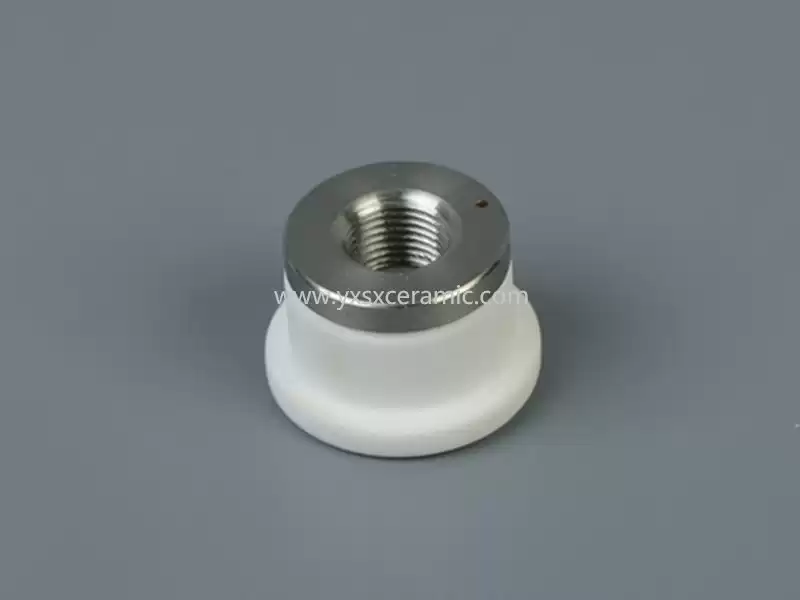

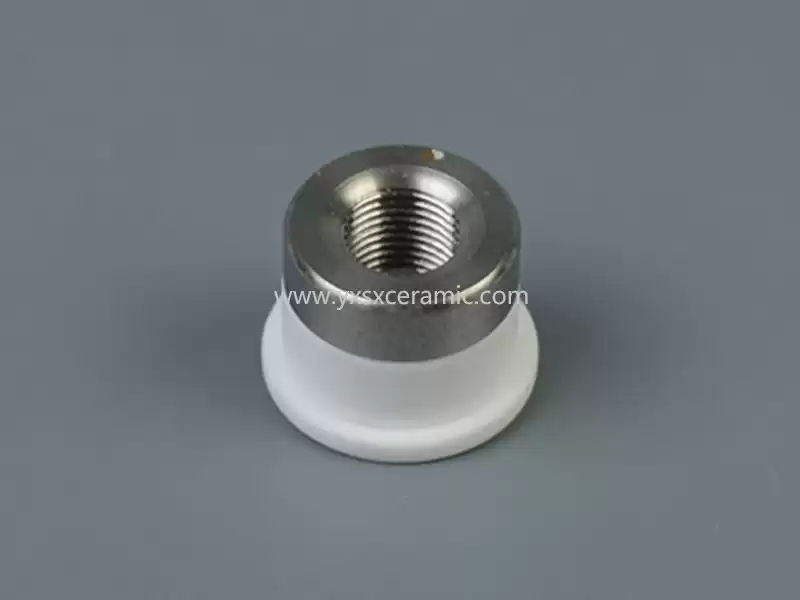

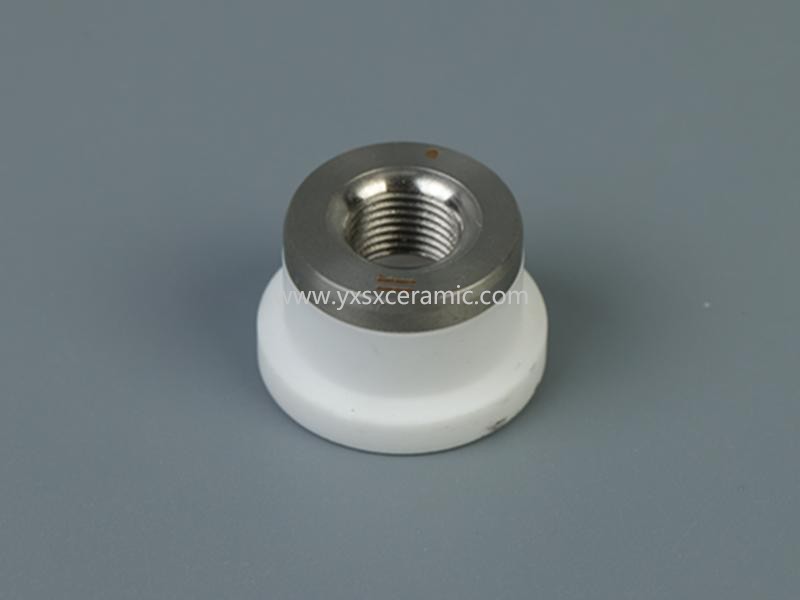

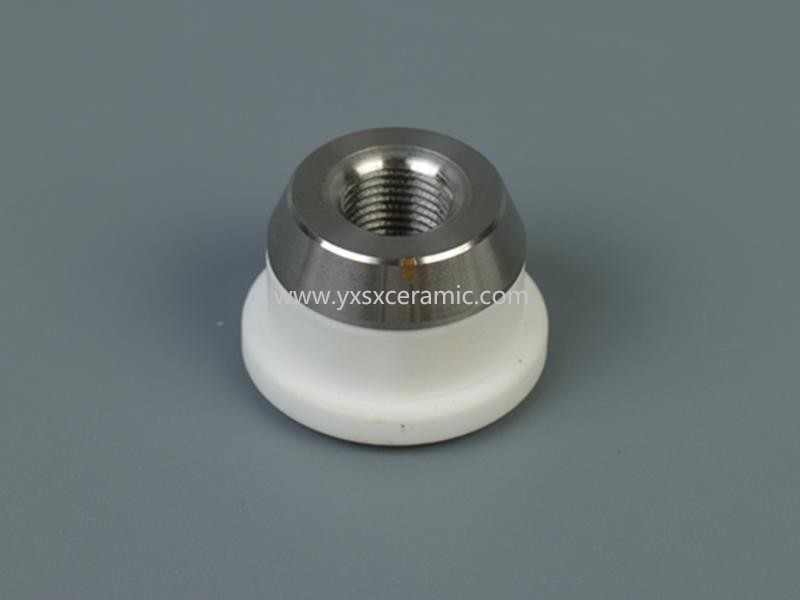

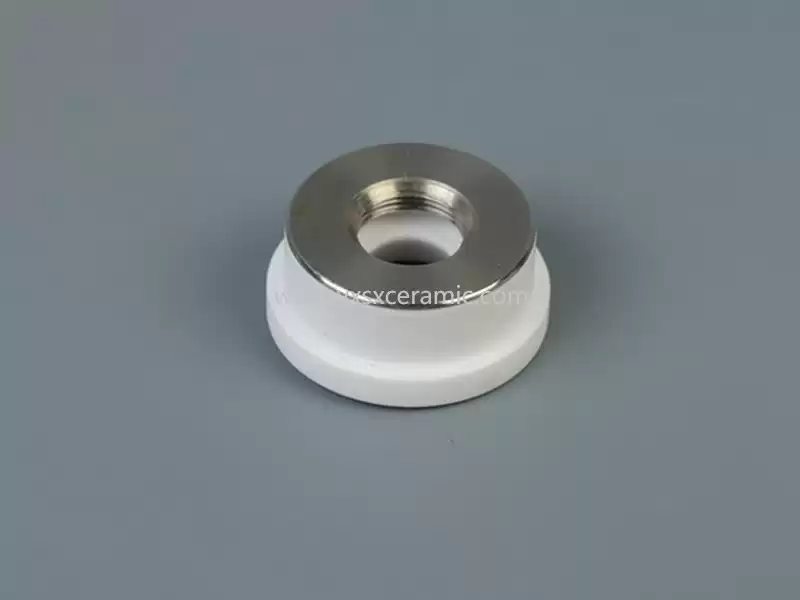

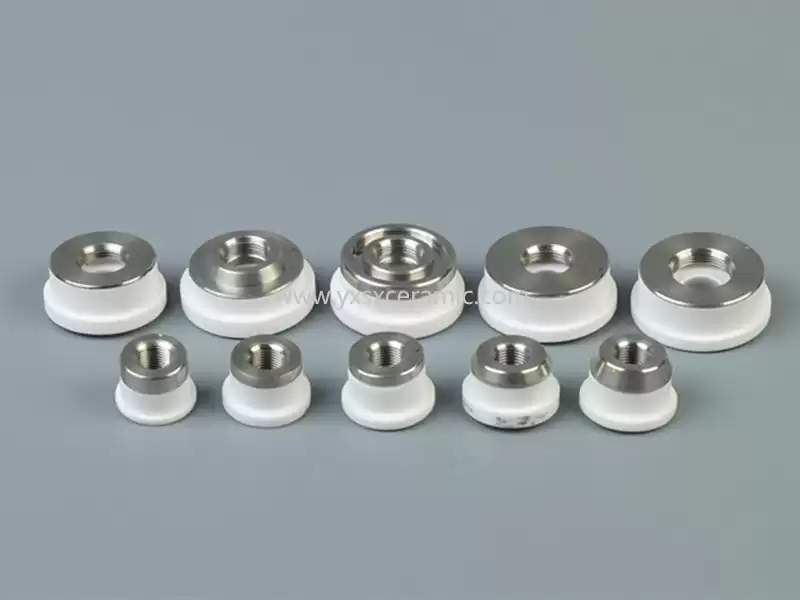

A ceramic laser holder is a precision component designed to secure, position, and stabilize laser diodes, laser crystals, or optical fibers in laser systems (e.g., industrial lasers, medical lasers, communication lasers). Its core material is high-performance technical ceramics, selected for properties that address the unique demands of laser applications—including ultra-high dimensional stability, excellent thermal management, strong vibration resistance, and compatibility with optical precision.
Technical Parameters
| Item |
Unit |
Zirconia ceramic |
99% alumina ceramic |
96% alumina ceramic |
95% alumina ceramic |
Steatite ceramic |
Mullite ceramic |
Cordierite ceramic |
| Bulk density |
g/cm3 |
6 |
3.8 |
3.7 |
3.6 |
2.8 |
2.2 |
2.3 |
| Water absorption |
% |
0 |
0 |
0 |
0 |
0 |
12 |
12 |
| Thermal Conductivity |
(w/m.k) |
10 |
19-30 |
16-28 |
14-24 |
2-3 |
2-6 |
1.3-1.8 |
| Resistance to thermal shock,Minimum |
TK? |
70 |
150 |
140 |
140 |
80 |
150 |
300 |
| Withstand voltage,Minimum |
KV |
15 |
20 |
18 |
18 |
20 |
25 |
- |
| Flexural strength |
Mpa |
1000 |
300 |
280 |
240 |
120 |
120 |
30 |
| Sintering temperature |
℃ |
1500 |
1670 |
1600 |
1600 |
1250 |
1250 |
1250 |
| Maximum working temperature |
℃ |
1200 |
1500 |
1200 |
1200 |
800 |
1000 |
1000 |
Application
• Ceramic Insulator Material: High-purity alumina ceramic (Al₂O₃ content ≥95%, often 99% for premium grades) with low dielectric loss, optimized for high-temperature insulation.
• Electrical Performance:
• Insulation Resistance: ≥100 MΩ (at 25°C, 500V DC) to prevent current leakage.
Advantages
1. we support OEM and ODM;
2. We have a professional R&D team and technical support;
3. We provide real-time logistics update information;
4. We support 24-hour online service;
5. We support T/T,L/c payment;
6. We have a professional QC team to check the quality before delivery.
Certificate
FAQ
1. How can you get quotation?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.
2. How can you get samples?
We can supply free samples if we have them in stock. If we haven't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.
3. What’s the lead-time for samples and batch orders?
It is 18days for supplying samples. It is around 25days for batch orders.
4. Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.
