Core Materials & Key Properties

• Main Material Options:
  • High-purity alumina (Al₂O₃ ≥99.5%): Cost-effective, good wear resistance, suitable for medium-temperature (≤1600℃) and general corrosive environments.
  • Zirconia (Y-TZP): High toughness, excellent thermal shock resistance, ideal for dynamic sealing with frequent temperature changes.
  • Silicon carbide (SiC): Superior hardness and chemical inertness, resistant to strong acids/alkalis and high-speed friction.
• Critical Performance Traits:
• Ultra-low wear rate: Hardness up to HRA 90+, minimal abrasion even in high-speed rotating or reciprocating motion.
• Strong corrosion resistance: Unaffected by most chemicals, solvents, and corrosive gases/liquids.
• Wide temperature adaptability: Operating range from -200℃ to 1800℃, maintains sealing performance under extreme temperature fluctuations.
• High dimensional precision: Tolerances up to ±0.002mm, ensuring tight fitting and leak-proof sealing.
• Non-toxic & contamination-free: Suitable for food, medical, and semiconductor industries requiring high purity.

Typical Applications

• Fluid machinery: Pumps, valves, compressors, and pipelines in chemical, petroleum, and water treatment industries.
• Automotive & aerospace: Engine cooling systems, hydraulic systems, and fuel delivery components.
• Medical equipment: Precision pumps, analytical instruments, and surgical devices (non-reactive with bodily fluids).
• Semiconductor manufacturing: High-purity gas/liquid delivery systems, vacuum furnaces (low impurity emission).
• Food & beverage: Processing equipment, beverage pumps, and dairy machinery (hygienic, easy to sterilize).

Customization & Technical Specifications

• Size range: Inner diameter 5–500mm, outer diameter 10–550mm, thickness 1–20mm (customizable).
• Surface finish: Polished (Ra ≤0.05μm) for enhanced sealing contact and reduced friction.

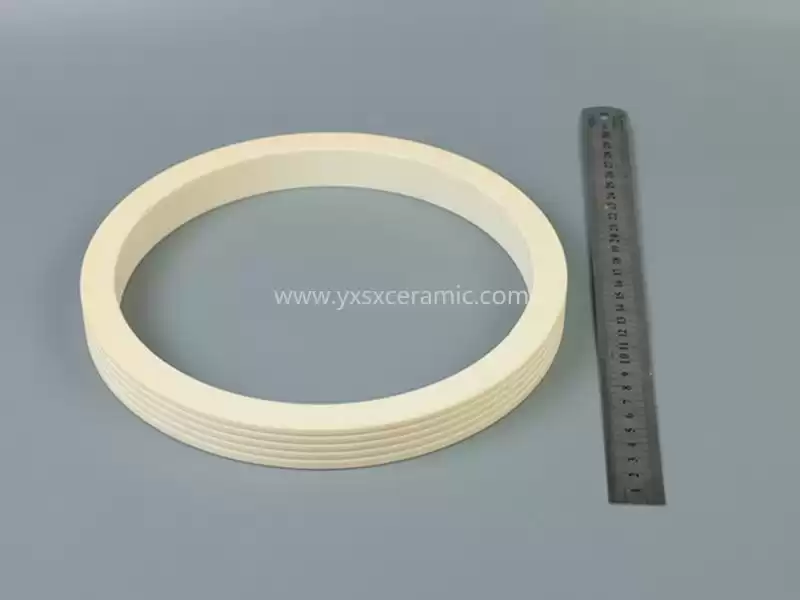

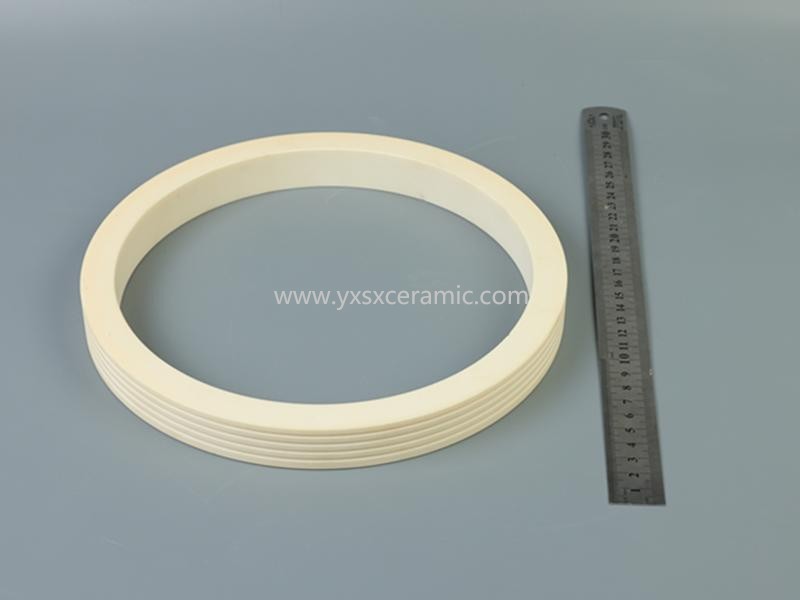

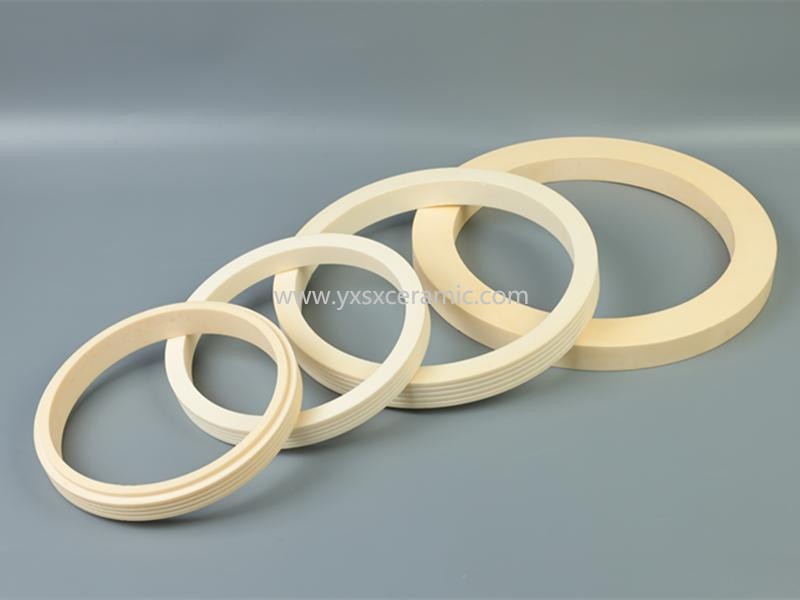

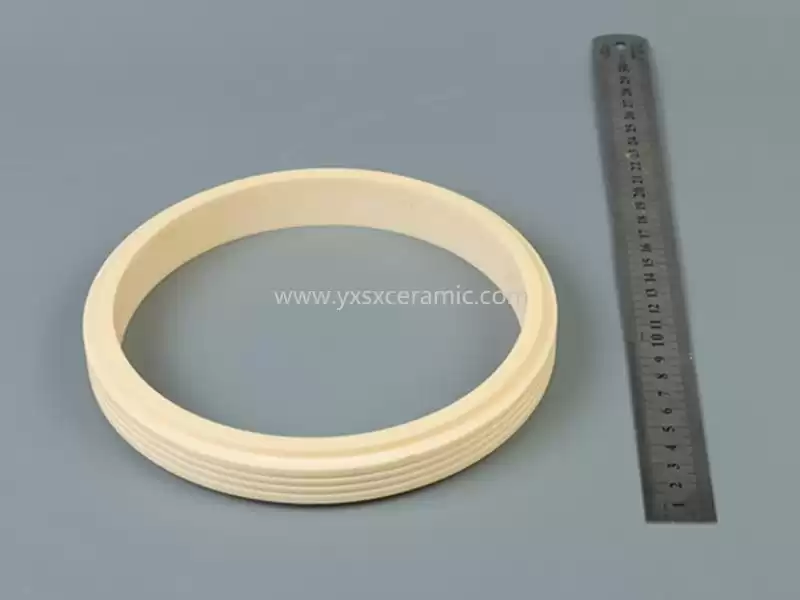

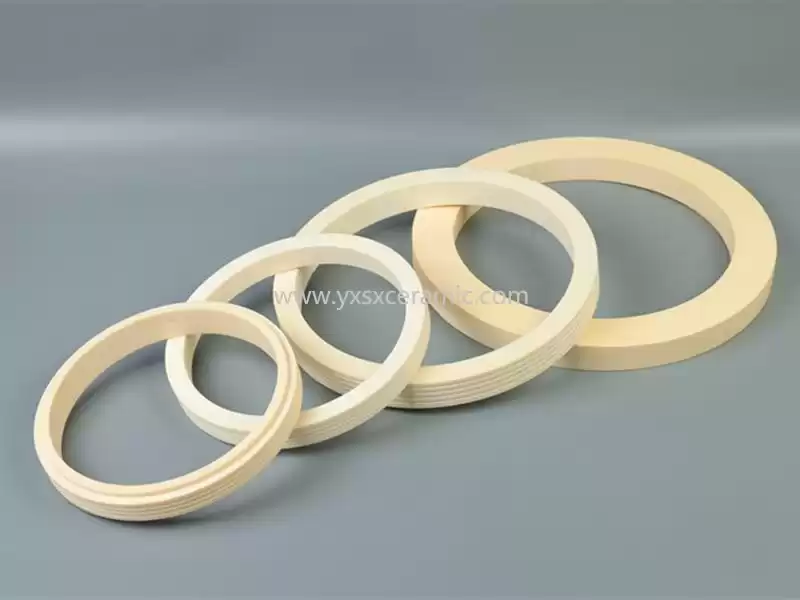

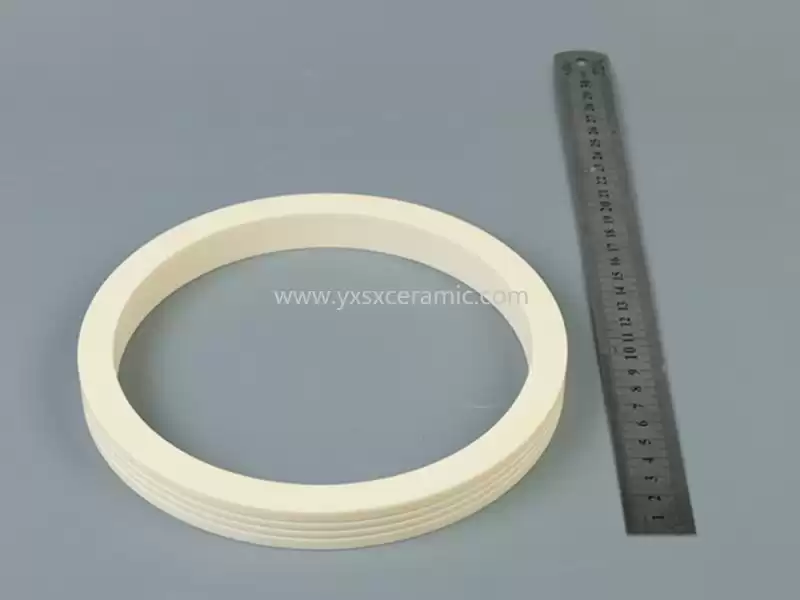

• Structural designs: Flat rings, O-rings, V-rings, or stepped rings (adaptable to different sealing interfaces).
• Additional options: Coated surfaces (e.g., DLC for lower friction), porous ceramic structures for self-lubrication.

Technical Parameters

Application

Specifically used for high-temperature and high-voltage insulation parts, circuit substrates, high-temperature devices, etc. As the main representative of precision ceramic materials, it is widely used in industries such as semiconductors, petrochemicals, and electronics.

Advantages

1. we support OEM and ODM;
2. We have a professional R&D team and technical support;
3. We provide real-time logistics update information;
4. We support 24-hour online service;
5. We support T/T,L/c payment;
6. We have a professional QC team to check the quality before delivery.

Certificate

FAQ

1. How can you get quotation?
Please kindly send me your drawing with technic requirement and demand quantity.
If you don't have the drawing, please kindly courier samples to us. we will quote our best price in 24 hours.

2. How can you get samples?
We can supply free samples if we have them in stock. If we haven't produce the products, we can supply some free samples after getting tool fee. Please take note that the courier fee should be at destination.

3. What’s the lead-time for samples and batch orders?
It is 18days for supplying samples. It is around 25days for batch orders.

4. Can I visit you?
Sure. If you're a volume buyer and would like to visit our in-house products and production line, please contact us to make an appointment.
