Greatest solar pv roof mounting systems is designed for maximum wind load of commercial and residential roof.The various roof hooks all highly-assembled and make the installation easy and fast to save your labor cost and time.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Stainless steel
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

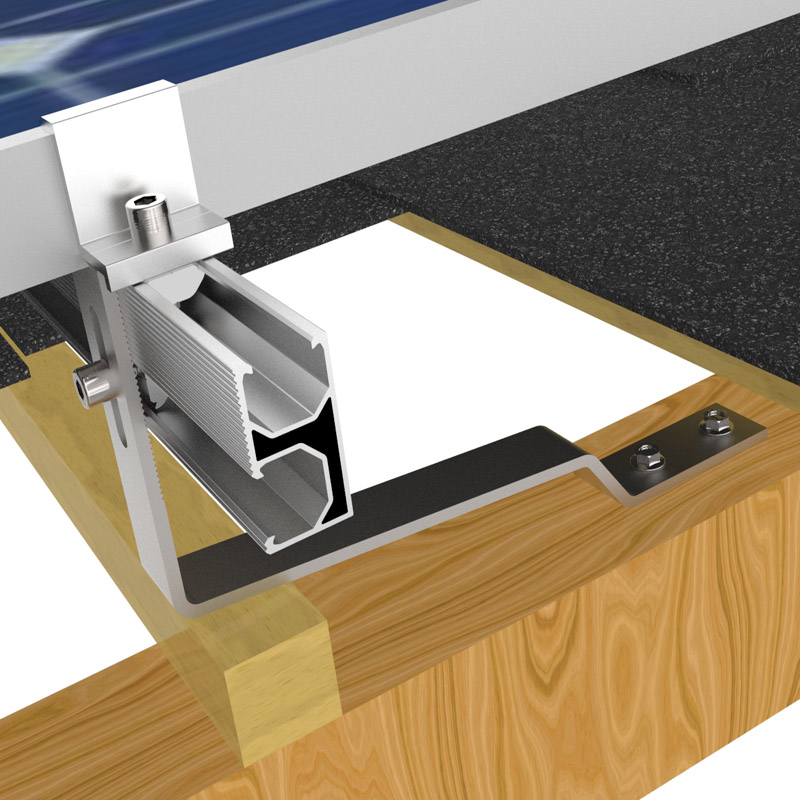

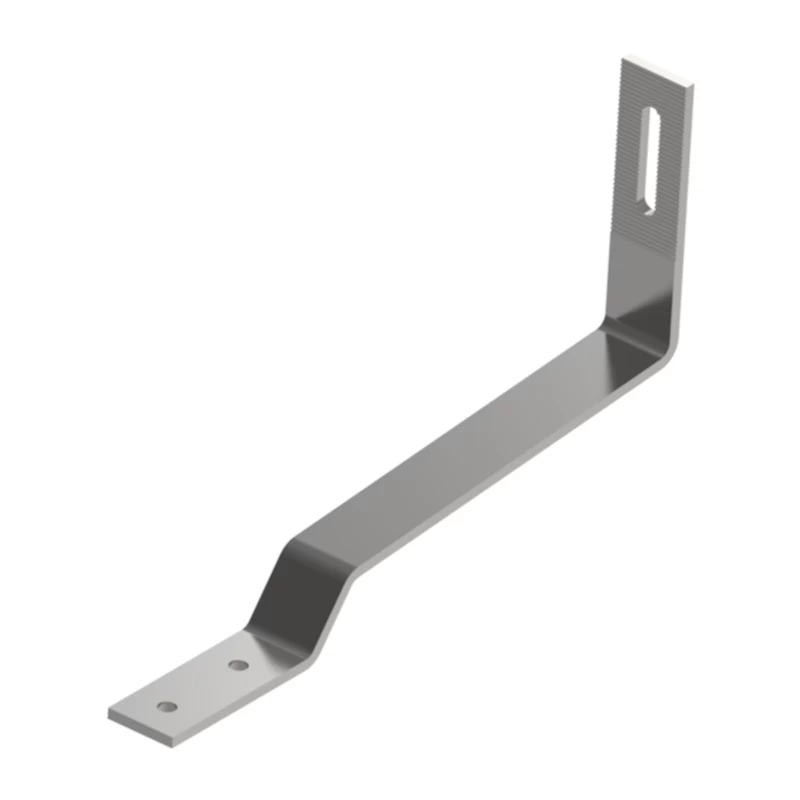

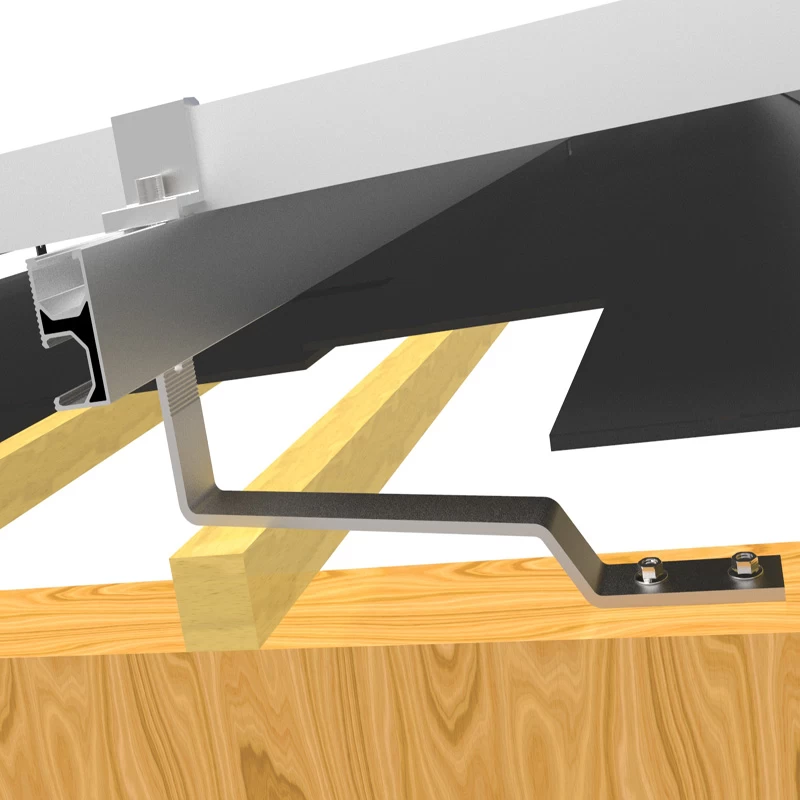

L-shaped stainless steel hooks
Feature:

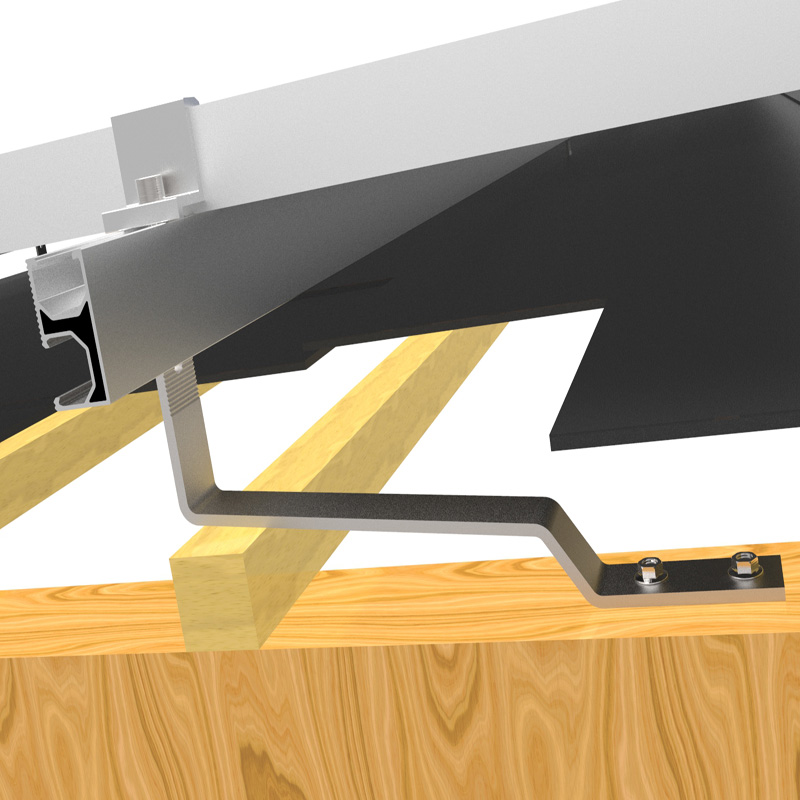

1. L-shaped stainless steel hooks are
suitable for slate roofs;
2. The bottom of the L-shaped stainless steel
hook is installed on the wooden beam under the slate tile,
and protrudes to the
tile through the gap between the tiles, so the original slate tile
is not damaged.
3. Stainless steel material, not easy to
rust
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of shingle roof bracket system

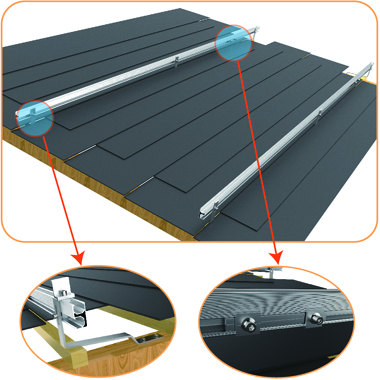

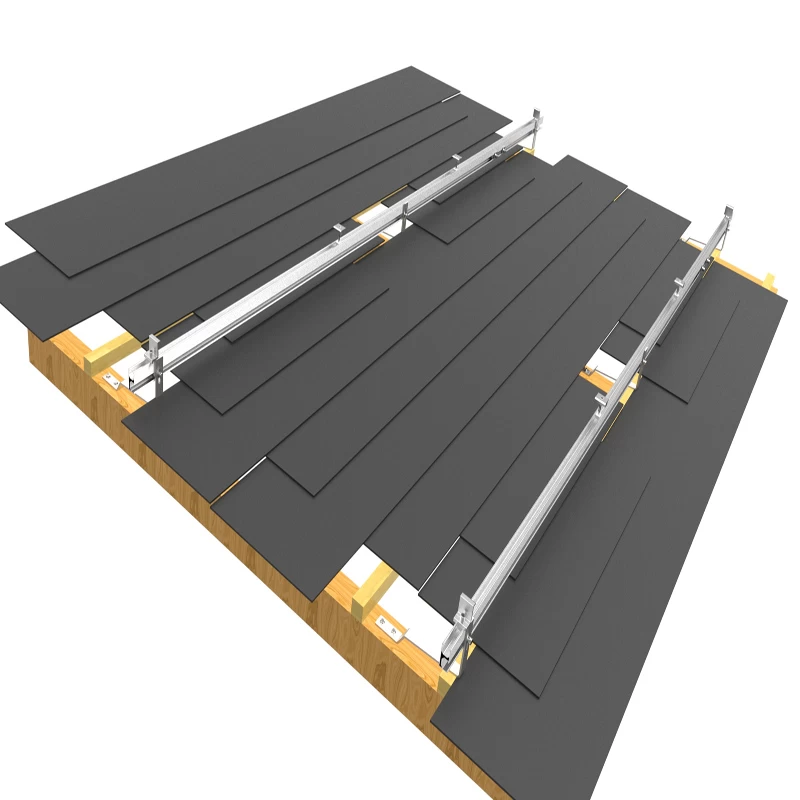

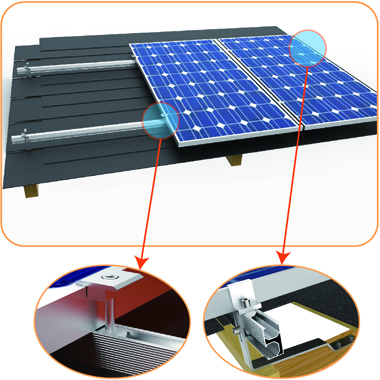

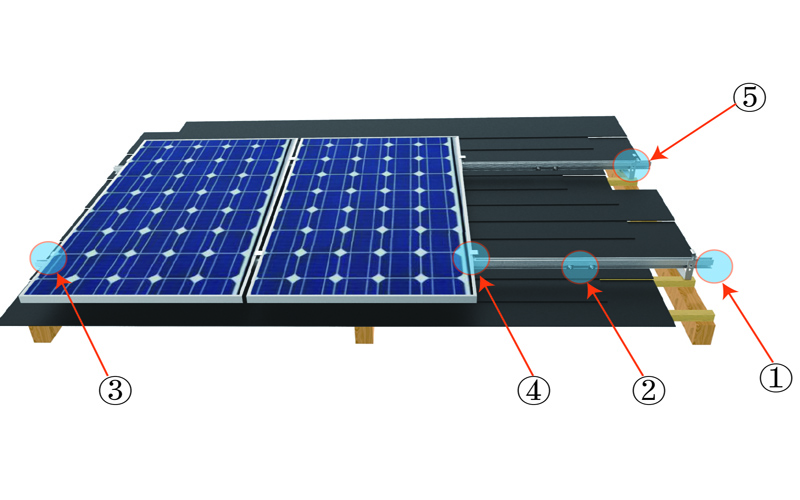

1. Sloar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. L-shaped stainless steel hooks

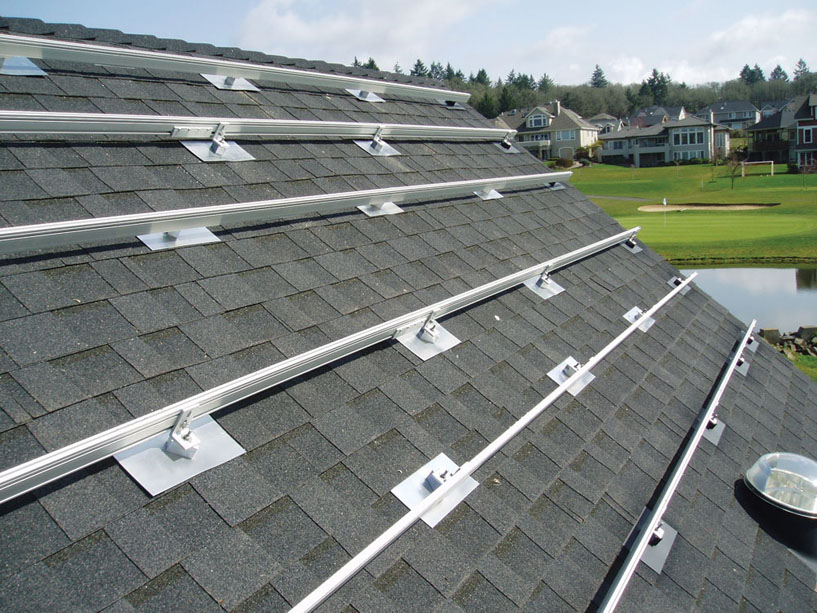

Installation photos of stainless steel hooksInstallation steps of shingle roof bracket system

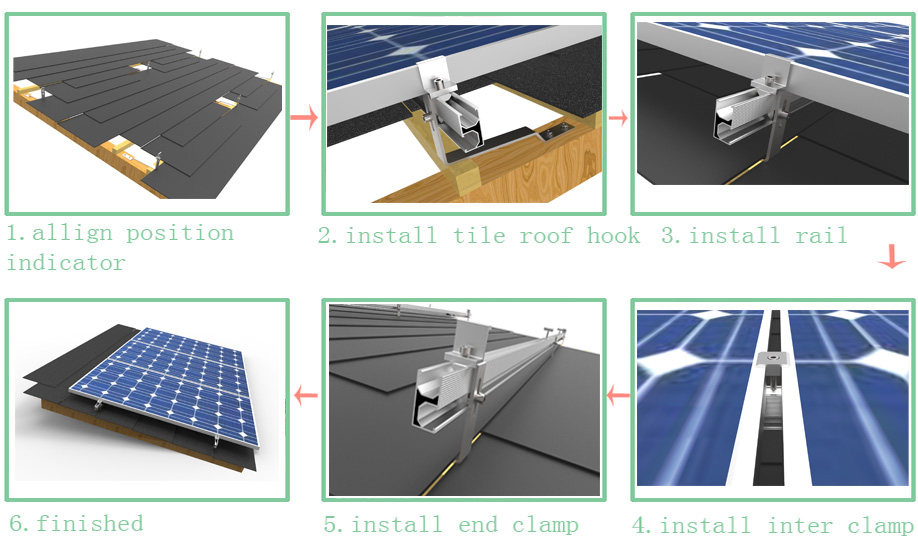

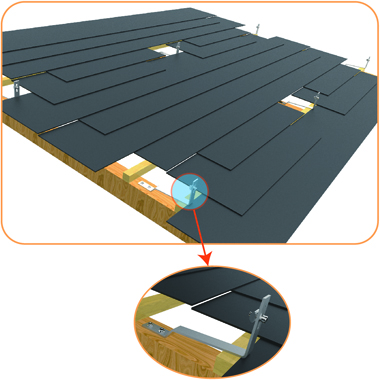

Step1：Install stainless steel hooks Step2：Install rails and rail splices
according to the drawing

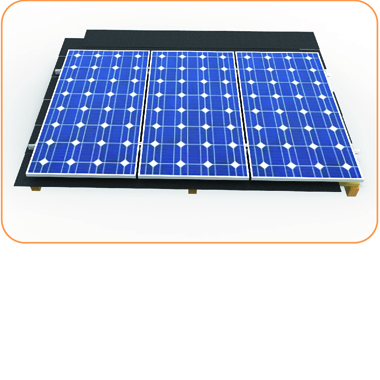

Step3：Fasten panel by inter clamp and end clamp Step3：Installation completion diagram

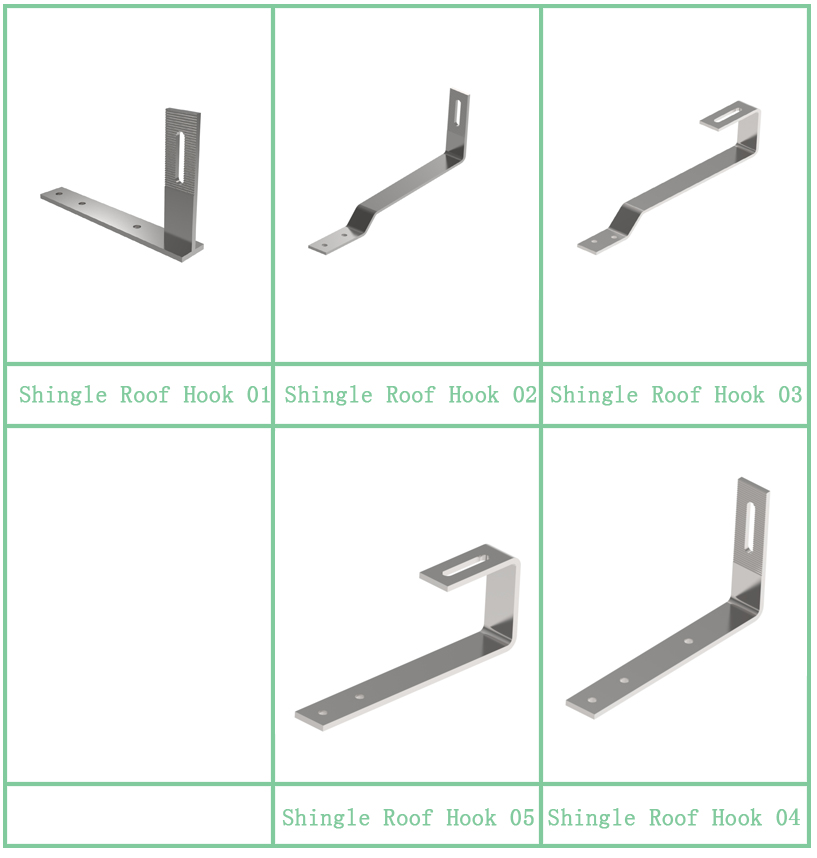

Component photos-multiple design
Installation steps

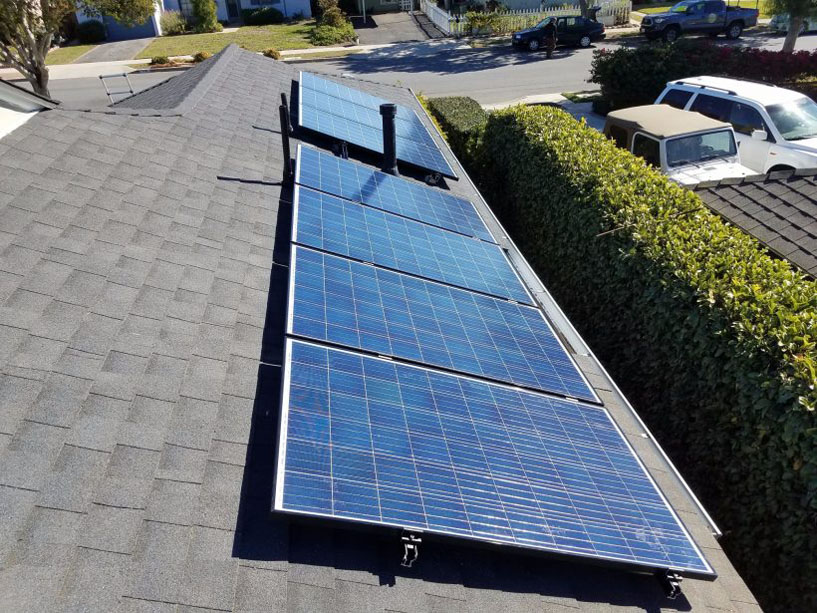

Project photos
