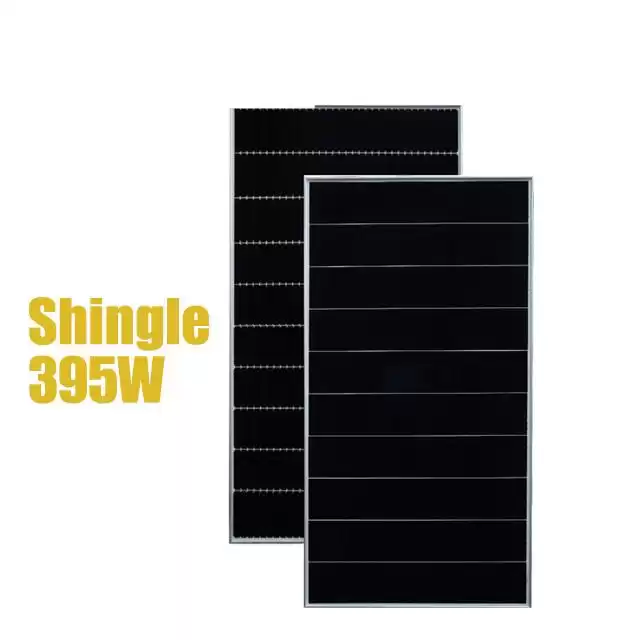

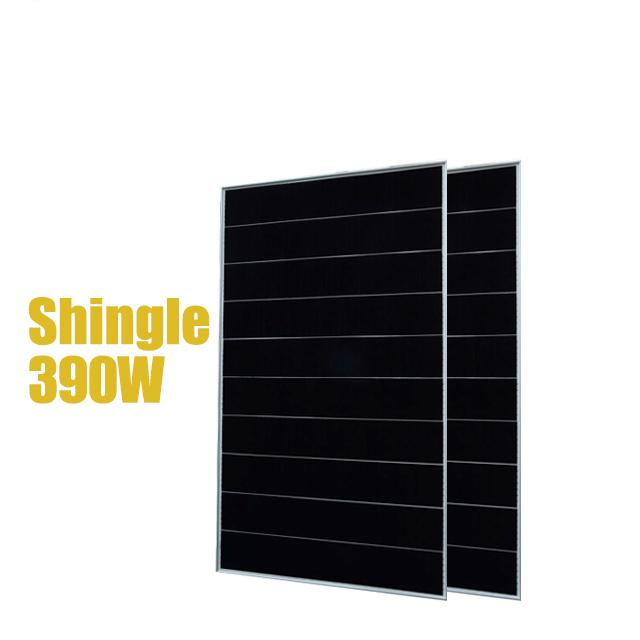

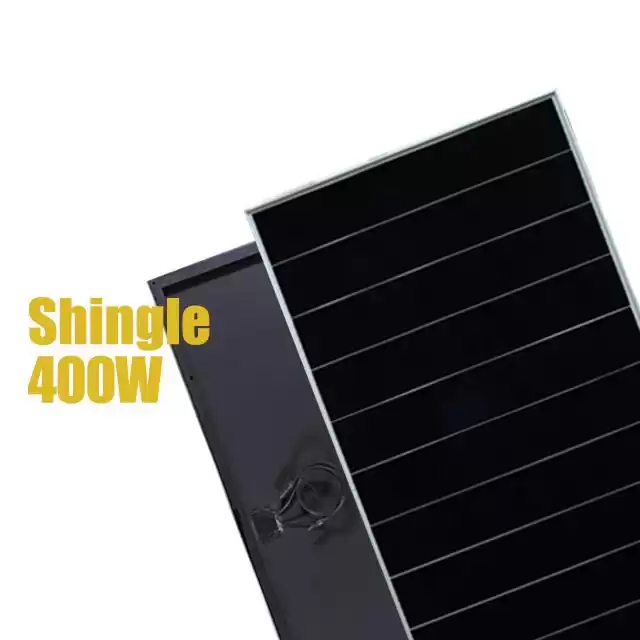

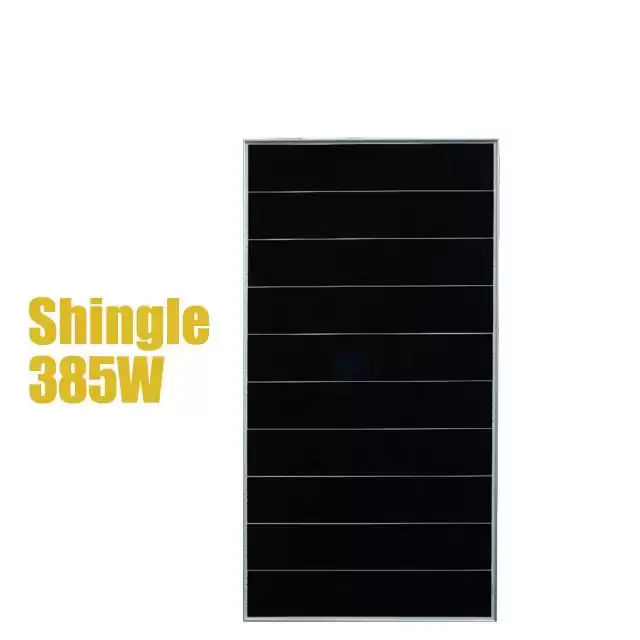

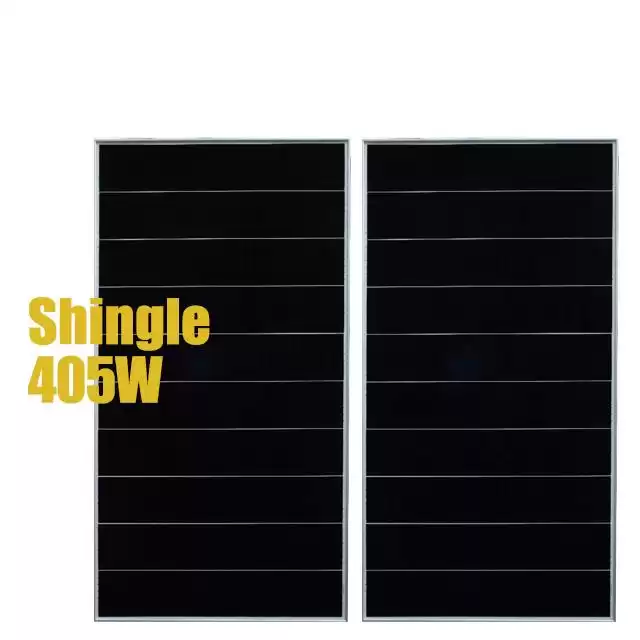

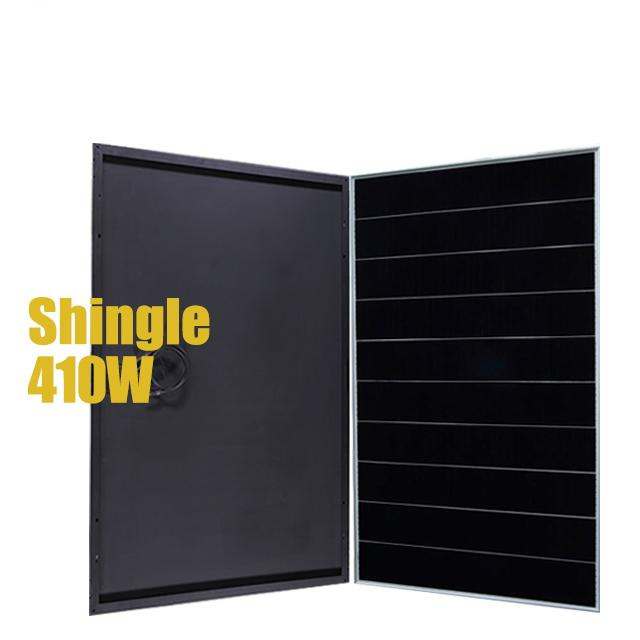

Shingled Solar Panels Monocrystalline PERC Solar Module

When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.


  • Warranty25 years linear warranty
  • CertificateTUV, CE, IEC, Inmetro

Shingled Solar Panels Monocrystalline Shingles 450W 460W 470W

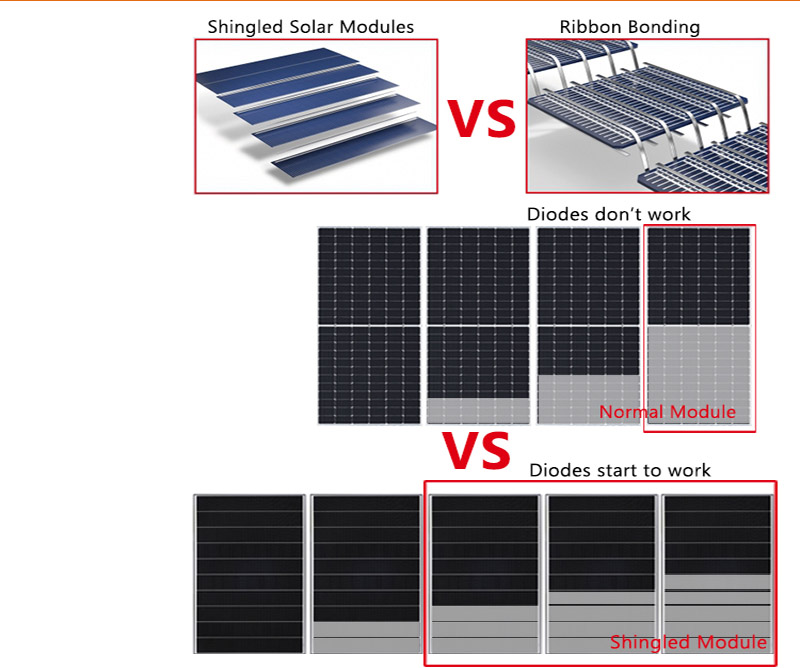

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.


Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon
NO. of Cells 340(34*10)
Dimensions 1719*1140*35mm
Weight 22kg
Junction Box IP68, two diodes
Front Glass  AR coating tempered glass, 3.2mm
Frame Anodized aluminum profile
Output Cables 4.0mm²,1000mm(Be customized by customers)
Connectors
ELECTRICAL PARAMETERS

410 405 400 395 390 385
Rated Maximum Power (Pmax) [Wp] 410 405 400 395 390 385
Open Circuit Voltage (Voc) [V] 46.6 46.5 46.4 46.3 46.3 46.2
Short Circuit Current (Isc) [A] 11.07 11.02 10.97 10.92 10.87 10.82
Maximum Power Voltage (Vmp) [V] 38.8 38.7 38.6 38.5 38.5 38.4
Maximum Power Current (Imp) [A] 10.57 10.47 10.36 10.26 10.13 10.03
Module Efficiency [%] 20.9 20.7 20.4 20.2 19.9 19.6
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating  20
Application Class Class A
Maximum Surface Load Capacity[Pa] 5400


Product Details

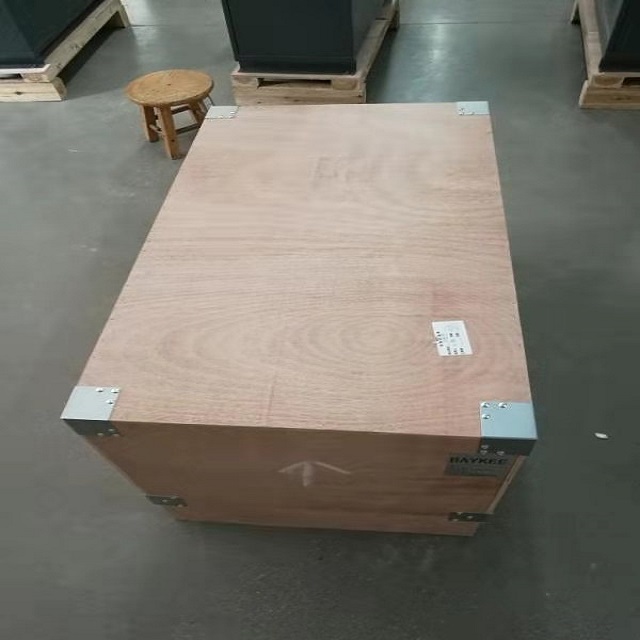

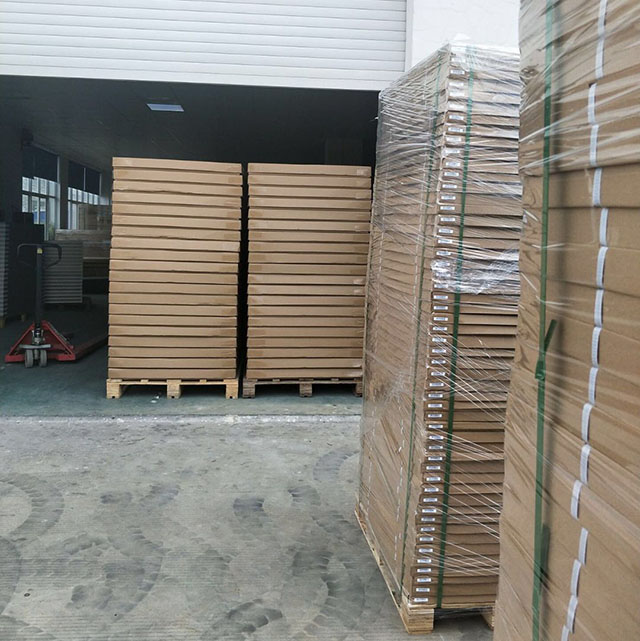

Package

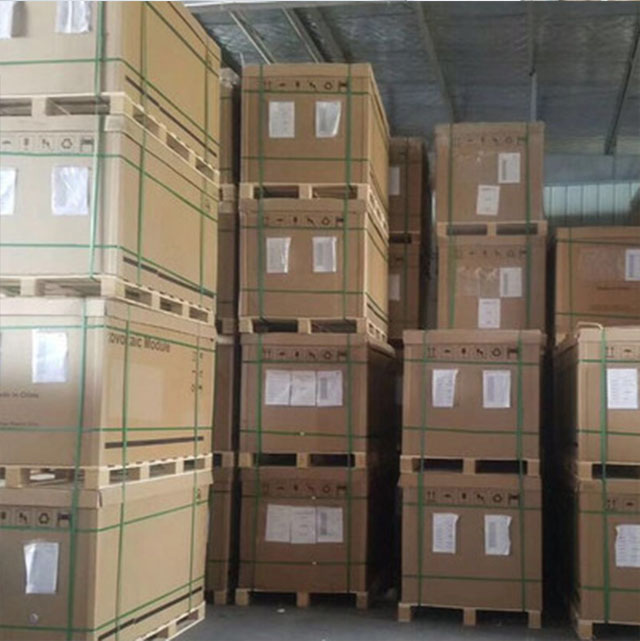

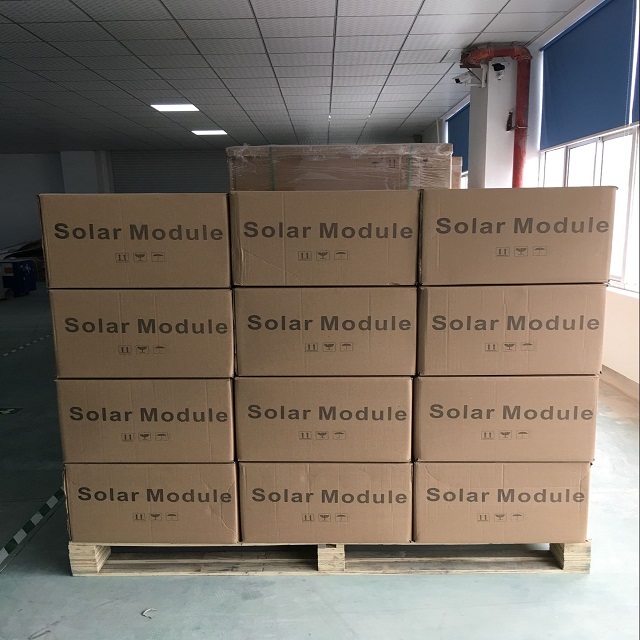

PACKAGE
Size 1719*1140*35mm
Number of panels per pallet 31
Number of pallets per 40’GP container 26
Number of modules per container 806







Projects

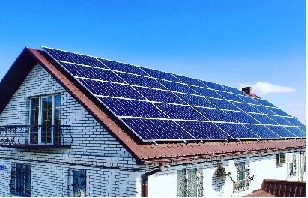

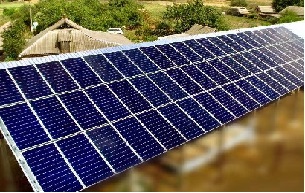

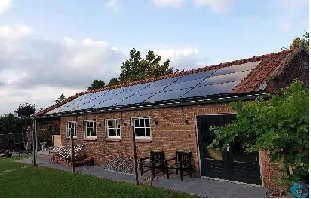

        15kw on-grid solar system in US       8kw off-grid solar system in Netherlands                            20 kw in UK


FAQ

Q1: Can I get samples before order?

A1: Sure, we would like to offer samples for your evaluating the quality first.


Q2: What about the lead time?

A2: Sample needs 10 days, mass production needs 2-3weeks.


Q3: What’s the warranty?

A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.


Q4: How can I pay the solar panels ?

A4: We could accept payment by T/T, Paypal, West union etc.


Q5: How can I contact you?

A5: Pls feel free to leave a message on our website, any question will be answered asap.


Product Tags Solar Shingled Modules          Monocrystalline Shingled Solar Panel          perc solar module          400w 24v Solar Panel          400W solar panel          Solar Panel All Black
