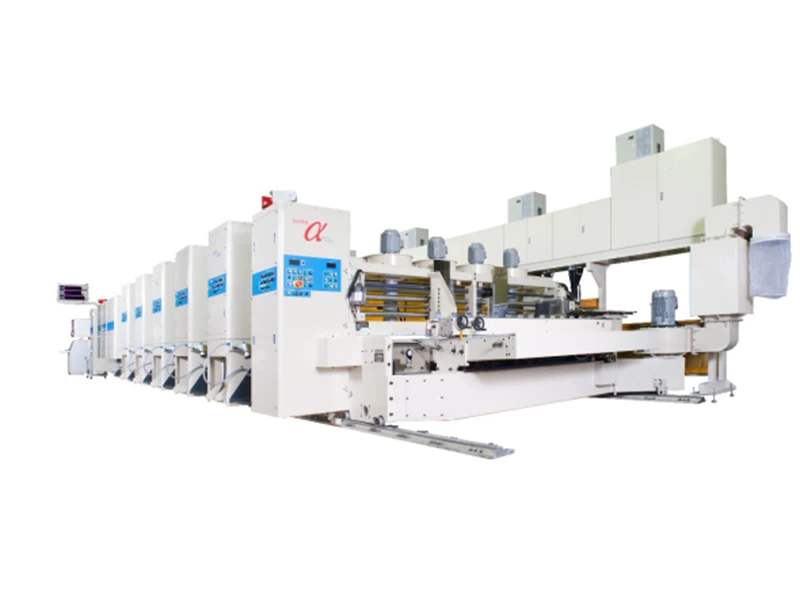

Shinko Japan High Speed Corrugated Carton Flexo Printing Machine

High speed corrugated carton cardboard flexo printing machine of Shinko Super Alpha answers the industry's desire for better feeding performance, tighter print registration, unmatched folding accuracy and the ability to do quick order changes for the ever-increasing small-lot business.



Shinko Japan High Speed Corrugated Carton Flexo Printing Machine


Carton Flexo Printing Machine Characteristic:

1.Fast cleaning up ink system within 3 minutes。

2.Low residual ink.

3.Fast hanging plate within 15 seconds

4.High productivity for small orders with setup times within 2 minutes.

5.Corrugated carton flexo printing machine running cost is reduced by energy conservation in electric power 170KVA

6.Each unit is individually driven by a servomotor.

7.High folding accuracy that meets every customer’s demands.


Corrugated Box Flexo Printing Machine Details:

Condition:New

Plate Type:Letterpress

Colors Unit:1~7 colors

Automatic Grade:Automatic

Certification:CE Certificate, ISO9001

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months


Feeding Unit:

Unit

Equipment

Feeding Unit

Lead edge feeder

Auto return to 0 position

Back guide auto

Lead edge auto set

Trial sheet running device

Paper dust remover (Shinkos original design)

Sheet jam detector

Batch counter

Side jogger

Lead edge table grating-less mechanism


CBS (Carrying Belt System):

Unit

Equipment

Carrying

Center belt suction

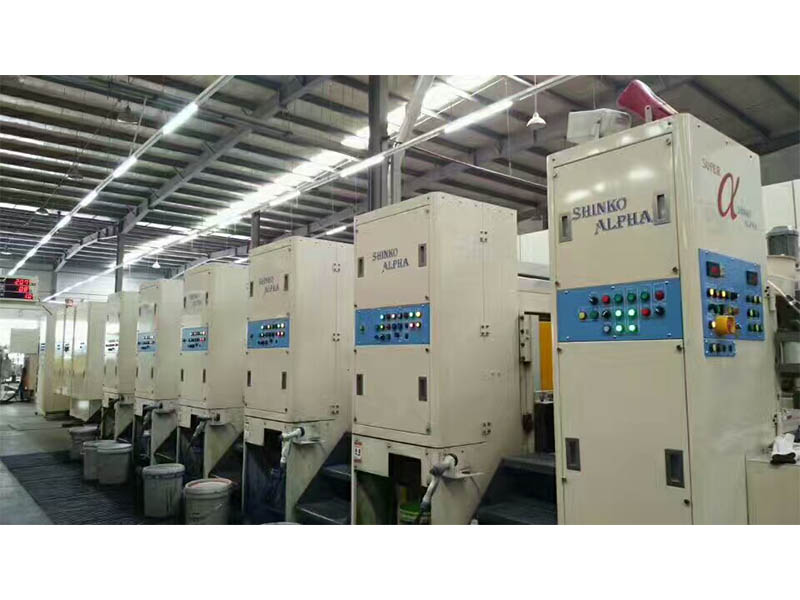

Printing Unit:

Unit

Equipment

Printer

Print cylinder lifting device

Print cylinder motorized lateral adjustment

Print cylinder auto return to  0  position

Shinko inking system

Ink flow monitoring buzzer

Ceramic anilox roll

Automatic ink touch

Automatic stereo film winder

Ink bath teflon coating

Chambered doctor blade system


Varnishing Unit:

1)Flexo printing machine for corrugated carton equipped with IR. Dryer system, the temperature is adjustable.

2)Adopt vacuum suction transfer system.

3)Prolong drying process and improve drying effect.

4)Adopt the efficient IR. Dryer device, accelerate the drying speed, improve the printing efficiency.

5)The operation of the machine is smoother.


Slotting Unit:

Unit

Equipment

Slotter Unit

Double slotter system

Crush rolls

1:1 creasing rolls

Automatic setting of yoke heads

Automatic RSC set up with a selection of regular glue flap or extended glue flap

Glue joint waste remover

(Glue joint waste is removed by a rotary brush and fan system, delivering clean product to the folding section.)


Die-cutting Unit:

Unit

Equipment

Die-cutting Unit

One touch hand hole cutter

Polyurethane anvil

Running register auto set


Forming Gluer

Unit

Equipment

Forming Unit

Forming rollers

Guide Bars

Upper suction belt

Underneath belt with suction function( with variable speed)

Select device to change clearance based on flutes

Double tanks

Glue roll


Counter Ejector

Unit

Equipment

Counter

One-stage counter

Squaring Unit

Squaring hopper

Holding fan


CNC

Unit

Equipment

CNC

Touch panel

Main control panel

Unversal power supply

Teaching function


Corrugated Box Flexo Printing Machine Specification:

Maximum machine speed:275 sheet/min

Maximum sheet size (RSC):1210×2700mm

Minimum sheet size (RSC):290×755mm

Minimum gluer bridge size:360mm

Maximum sheet size (no folding):1210×1600mm

Minimum sheet size (no folding):290×650mm

Maximum width of sheet not folded:2000mm

Maximum printing area:1100×2600mm

Maximum film length:1210mm

Guide joint width:35mm

Minimum box height:50mm

Required power:120KW

Approx. Weight: 82,000KG


Cardboard Flexo Printing Machine Advantages:

1.CNC control system. (Intelligent Control)

2.Independent Servo motor Drive in Each Unit. (High Speed and Energy Saving)

3.Fast Change Order within Two Minutes, Fast Change Printing Plate within 15 Seconds. Able to change 40-150 orders each day. (High Efficiency)

4.Fast Clean ink within three minutes, lower residual ink.
