With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
*Various color, size, shape can be customized;
*Environment protection, no light pollution;
* Engery saving: Low engery consumption;
* Safe: Low electric output.
Package including

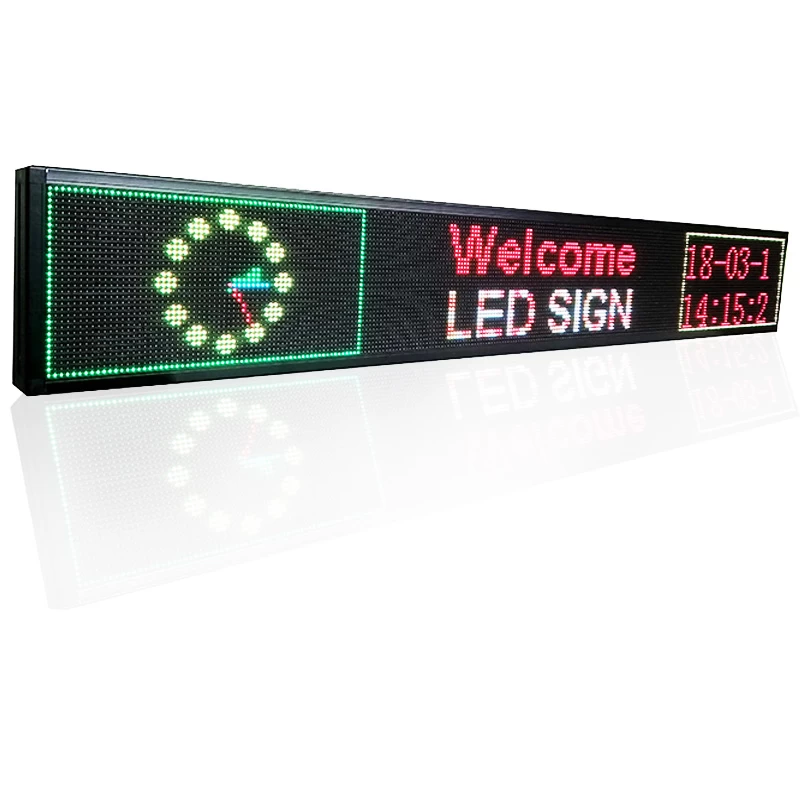

*LED sign 1 PCS (size 199x23cm / 78x 9 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P5 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W64 X H32
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/16 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
|
Cabinet Size (mm)
|
W1990 x H230 MM (78x9 Inch)
|
|
Power Consumption Max (w/set)
|
60 Watt
|
|
Brightness(CD/㎡)
|
≥1500
|
|
Net Weight (Kg)
|
3Kg
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
|
