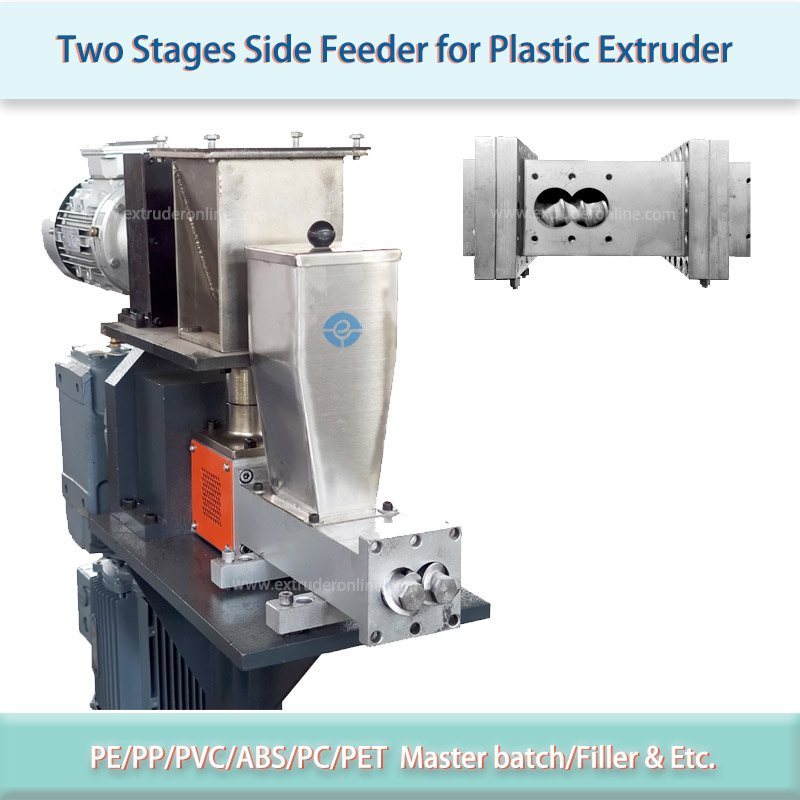

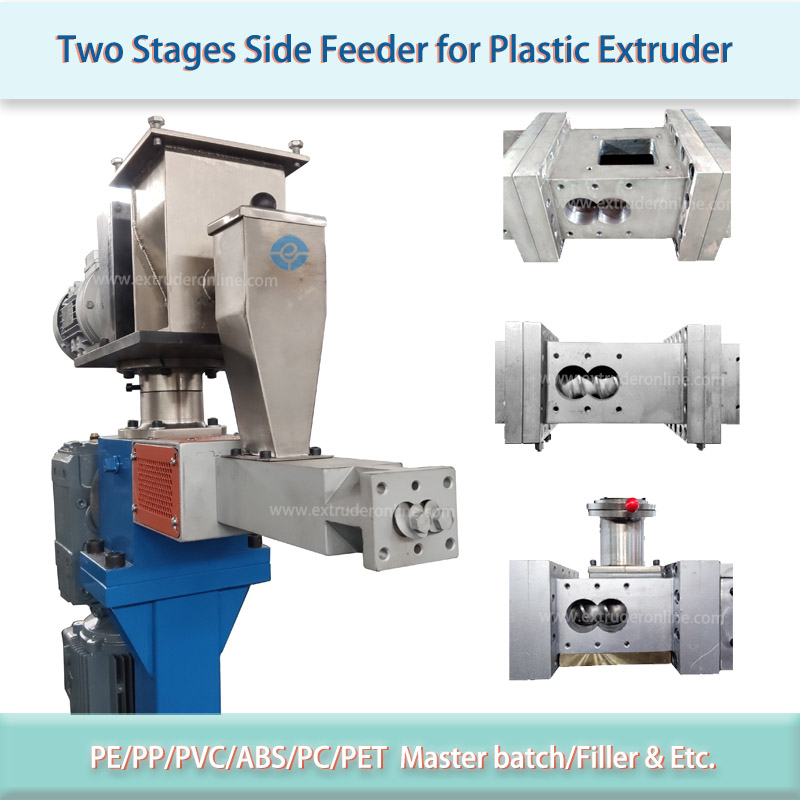

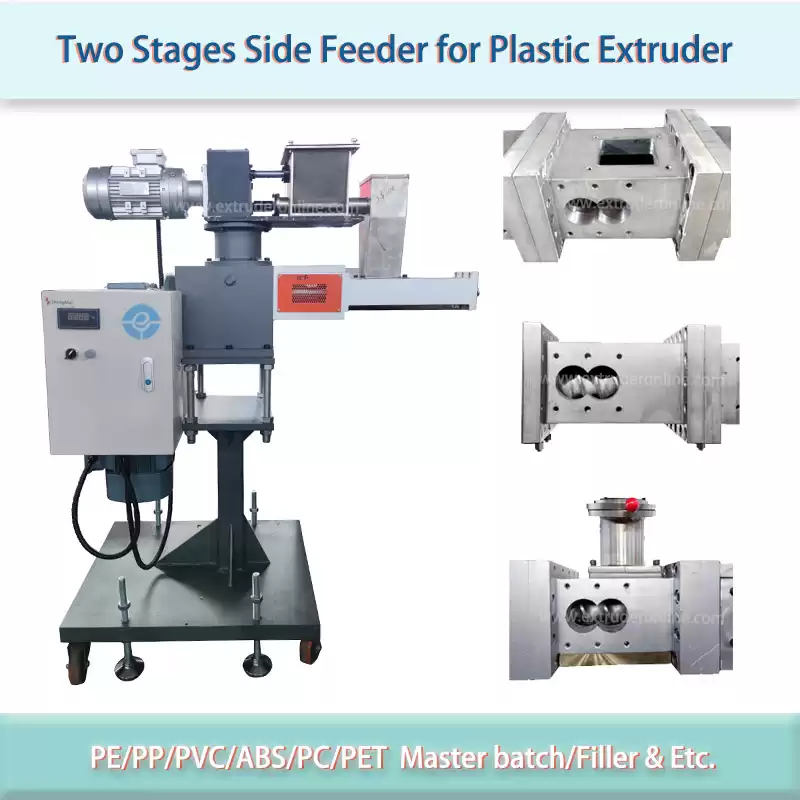

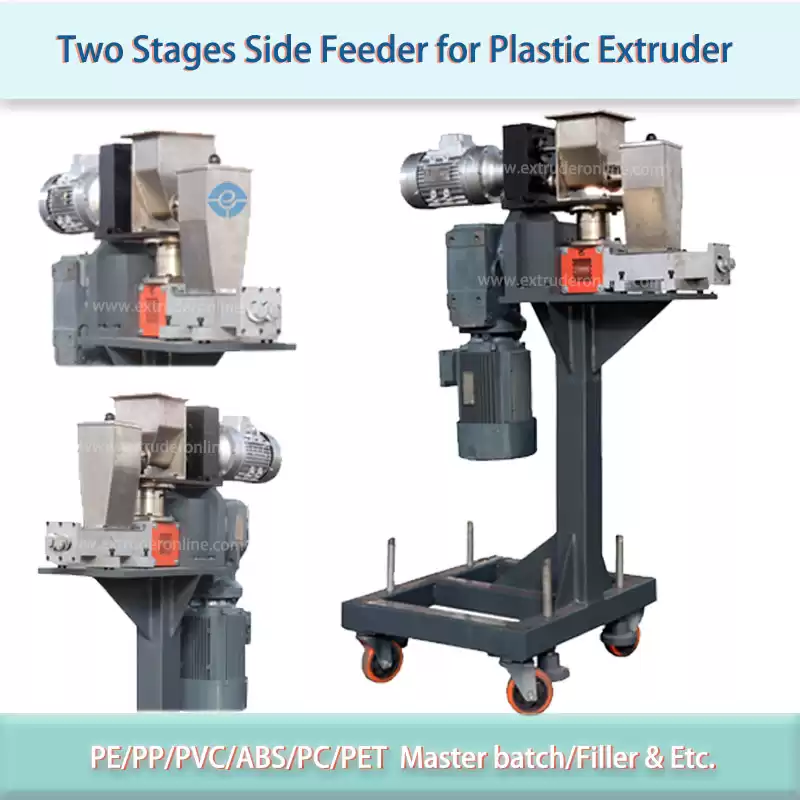

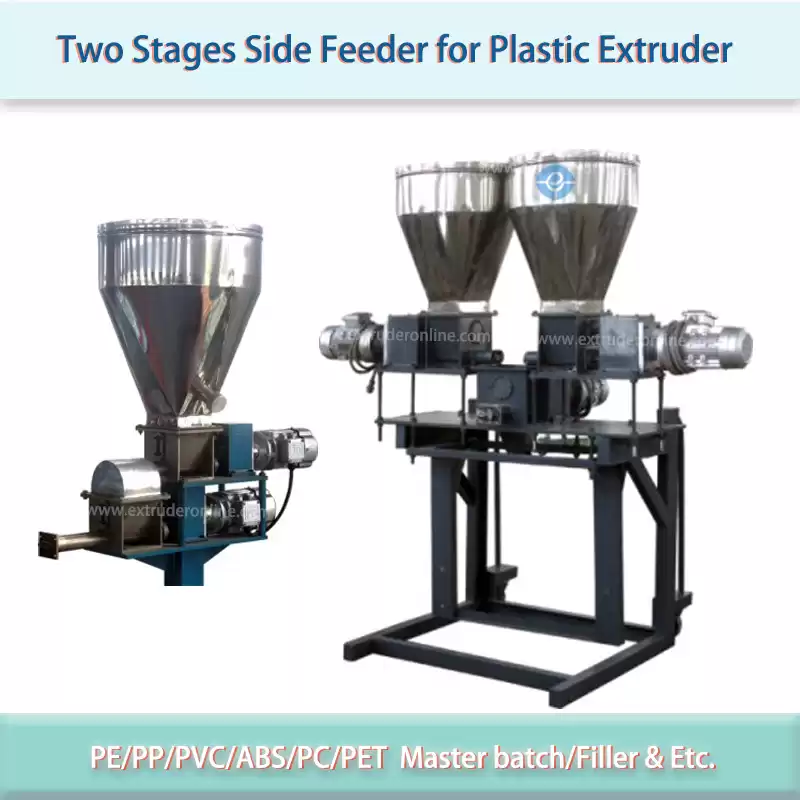

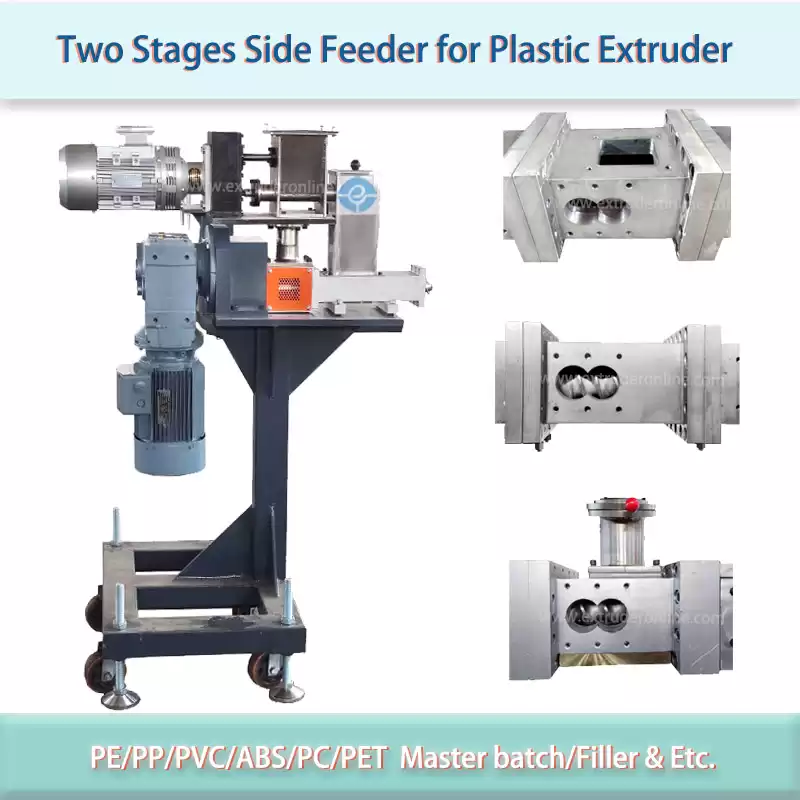

Side Feeder extruder for twin screw plastic extrusion machine
HS CODE: 8477.9000
Usage:This machine is an auxiliary device for twin screw plastic extruder
building block system screw segments designed, it's convenient to recombination the screw segments if you need to change the segments or need to adjust the screw elemets combination (regroup).
This device is used for high percentage of filling materail add into the products, like CaCo3 powder, corn starch powder, BaSO4 powder and so on.
Sometimes, the clients are not only will add filling materail from the main HOST's hopper, but also need add more powders or reinforce material (glass fibre and others) into the mixed melt material for further step filling. ( high percentage of filling material in the final products.)
We have different model for various of twin screw plastic extruders' model.
We have different model for various of twin screw plastic extruders' model.
| CWJ building block screw segments Side Feeder for Twin screw plastic extruder |
| SN. |
MODEL |
USED EXTRUDER |
SIDE FEEDER MODEL |
CENTER DIS. |
ID |
BARREL L |
BARREL H |
| 1 |
CWJ35 |
SHJ35 |
CW35-SHJ35-D-φ35-0 |
30 |
φ36 |
110 |
94 |
| 2 |
SHJ35 |
CW35-SHJ35-D-φ35-0 |
30 |
φ36 |
110 |
94 |
| 3 |
SHJ50 |
CW35-SHJ50-D-φ35-0 |
42 |
φ51 |
146 |
100 |
| 4 |
SHJ50 |
CW35-SHJ50-D-φ35-0 |
42 |
φ51 |
146 |
100 |
| 5 |
SHJ52 |
CW35-SHJ52-D-φ35-0 |
43 |
φ52 |
150 |
105 |
| 6 |
SHJ52 |
CW35-SHJ52-D-φ35-0 |
43 |
φ52 |
150 |
105 |
| 7 |
CWJ50 |
SHJ50 |
CW50-SHJ50-D-φ51-0 |
42 |
φ51 |
146 |
100 |
| 8 |
SHJ52 |
CW50-SHJ52-D-φ51-0 |
43 |
φ52 |
150 |
105 |
| 9 |
SHJ60 |
CW50-SHJ60-D-φ51-0 |
52 |
φ60 |
184 |
110 |
| 10 |
SHJ65 |
CW50-SHJ65-D-φ51-0 |
52 |
φ63 |
184 |
110 |
| 11 |
SHJ68 |
CW50-SHJ68-D-φ51-0 |
60 |
φ68.8 |
220 |
140 |
| 12 |
SHJ75 |
CW50-SHJ75-D-φ51-0 |
60 |
φ72.8 |
220 |
140 |
| 13 |
CWJ65(new) |
SHJ68 |
CW65-SHJ68-D-φ65-0 |
60 |
φ68.8 |
220 |
140 |
| 14 |
SHJ75 |
CW65-SHJ75-D-φ65-0 |
60 |
φ72.8 |
220 |
140 |
We also present other spare parts and auxiliary machines for plastic extrusion machine line.
Spare parts for three screw/three shafts plastic extruder
Barrels, Segments, Heaters and so on.
Barrels: is like a container to let the raw material melts and mixes by the segments(screw elements) and heaters, and convoys the materail go ahead into the die head for plastic extrusion.
Barrels & shafts: is for material compounding and convoying after the materail melt by the heaters heating.
Heaters: is for twin screw or three screws (three shafts) barrels using: such device is for materail's melt, after the material melt, the screw unit will mixing, compounding and convoying the material to the extrusion barrel and extrusion die head for the products extrusion.

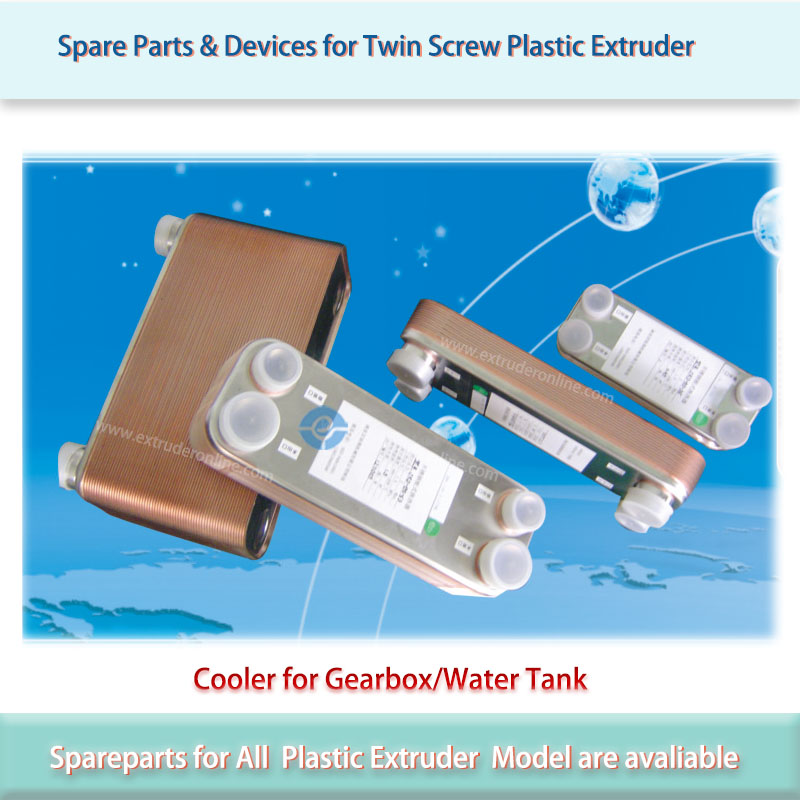

Cooler for gearbox/ water cooling system: this device is for gear box cooling, as the machine is running and the gear box will continues working, the gears temperature will be rised a lot by rub against each other and continues woking. The cooler needs cooling by the city running water.

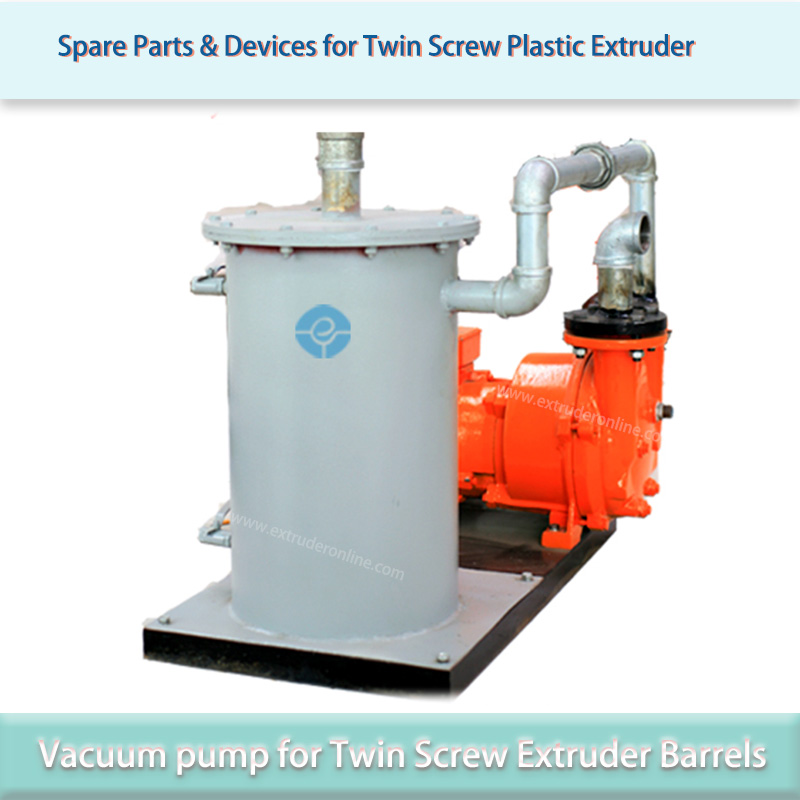

Vacuum system for barrels: this device is for barrels with vacuum, which could reduce the hudimity in further step, and improve on the granules density. it could avoide the granules have a hole in the middle of the particles.
Water cooling system for barrels: this device is for barrels' cooling, if the temperature is higher than setting, the valve will be opening and working, it will control the barrels' temperature by the clients' request or the materail demands.
High speed mixer: this device is a pretreatment for plastic granules or sheets making, all materail in the formula should be mixed engough, and let them covered each other, so that they could follows down to the next plastic extrusion step.
