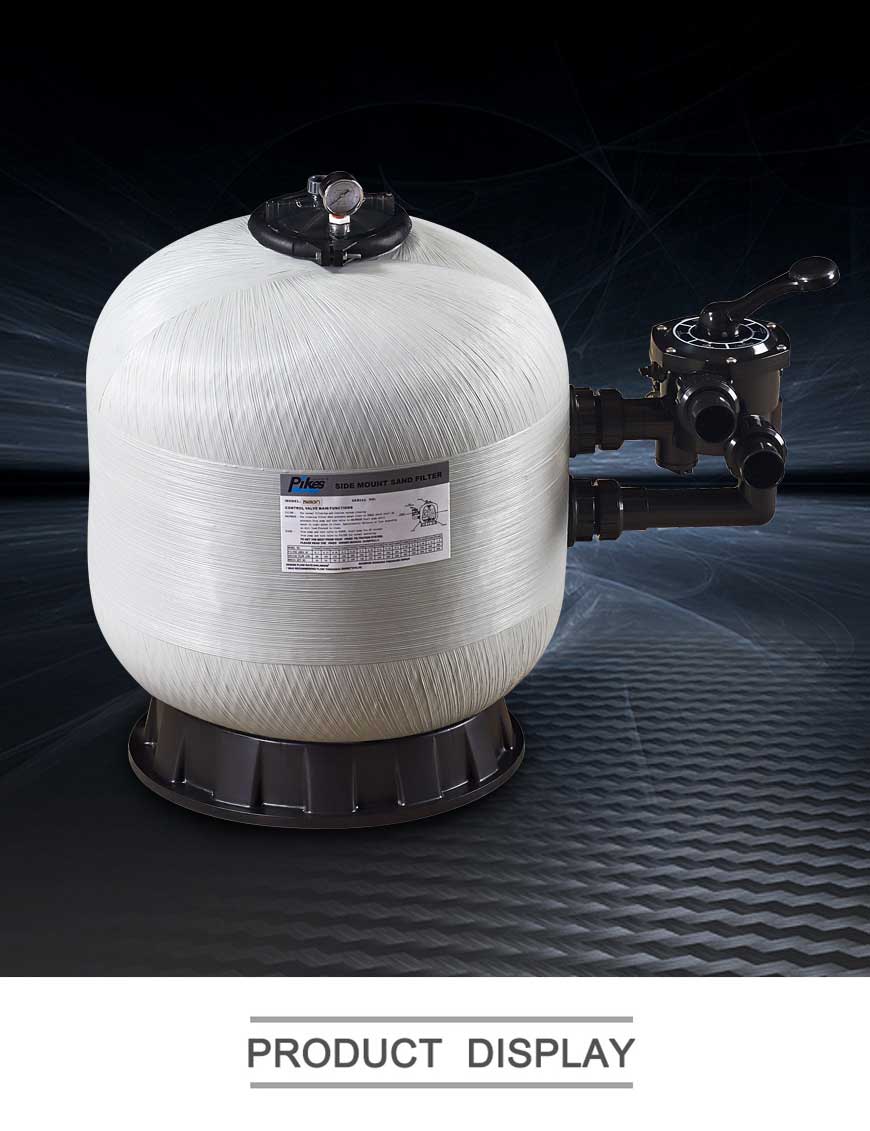

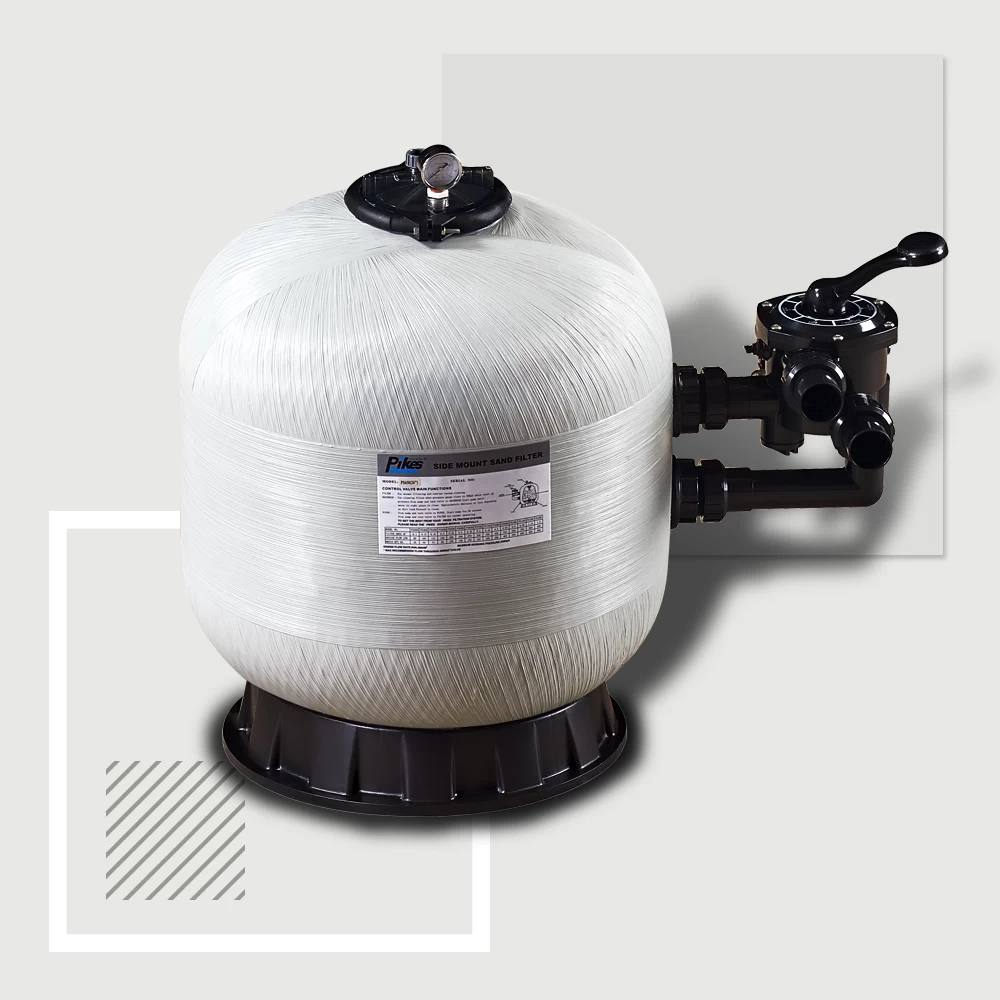

Side mount fiberglass sand filter PS350-700

Side mount fiberglass sand filter PS350-700,voluble molding of fiber glass reinforced plastics,corrosion resistant,good abrasion resistance ,deforming - proof.Uniquely designed distribution make a stable,easy to install.

Facebook Twitter Pinterest LinkedIn 分享
    Voluble molding of fiber glass reinforced plastics,corrosion resistant,The sand filter is a special equipment made of glass fiber wound, shaped, resistant to deformation, corrosion and wear. When water flows through the sand filter bed, dirt and organic matter in the water are trapped by the filter bed and the water is filtered.
    And even water flow to improve drainage system.easy to install ,maintain .Outlet turbiditv:<2FTU;
Model: PS450-PS750

fiberglass swimming pool sand filter

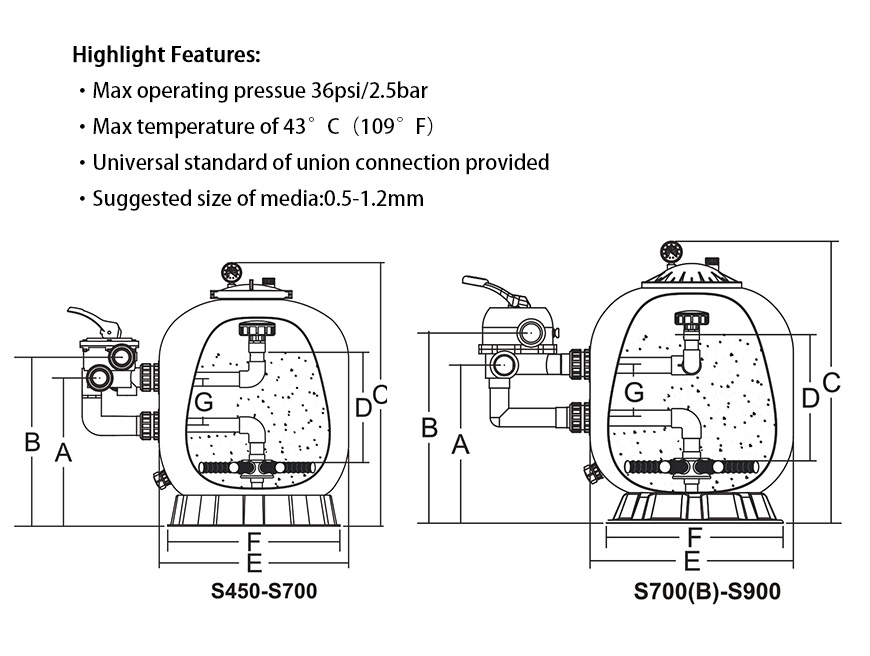

Technical Characteristics
Mode Filter Area (㎡) Vatve Connections
 Max Flow Rate Gravel (kg) A mm B mm
PS400 0.13 1.5inch   50mm 8m³/h 35 700 400
PS450 0.16 1.5inch   50mm
 10m³/h
 45 730 450
PS525 0.22
 1.5inch   50mm
 12m³/h
 85 780 525
PS625 0.30 1.5inch   50mm
 16m³/h
 150 880 625
PS700 0.40 1.5inch   50mm
 20m³/h
 210 945 700


fiberglass swimming pool sand filter

fiberglass swimming pool sand filter
