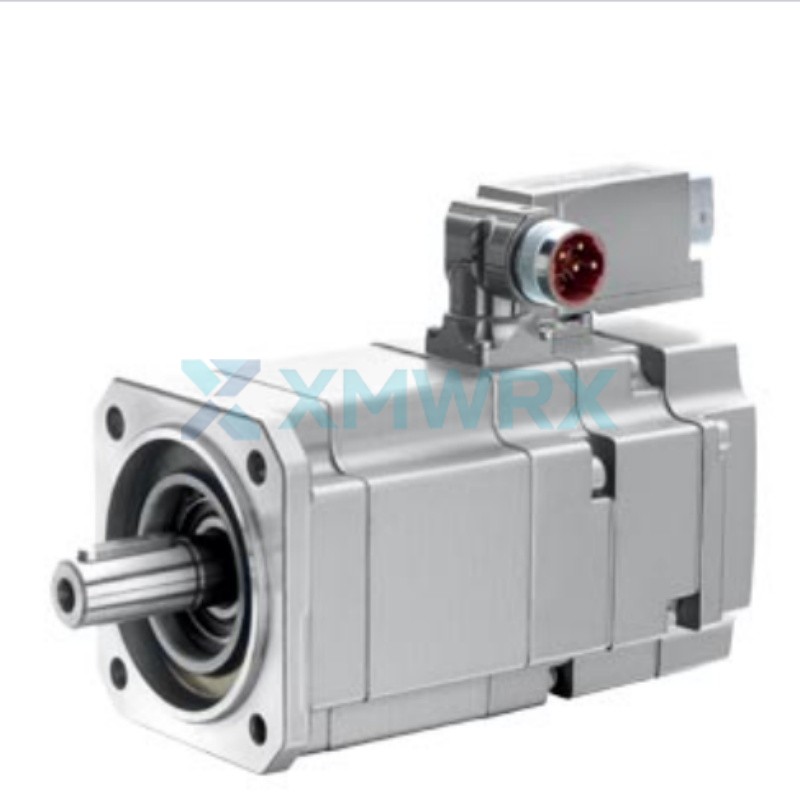

1FK7022-5AK71-1VB0 It is a SIMOTICS S-series synchronous servo motor manufactured by Siemens.
SIMOTICS S Synchronous servo motor 1FK7 Compact 0.85Nm, 100K, 6000rpm 0.38kW, Naturally cooled Power/signal connectors Connector can be rotated by 270° FRAME SIZE IMB 5 (IM V1, IM V3) FLANGE 1 BASIC ABSOLUTE ENCODER 16 P/REV (ENCODER A-16) WITH DRIVE-CLIQ INTERFACE; PERFORMANCE REDUCTION BY 10% DUE TO ABSOLUTE ENCODER; SHAFT WITH FITTED KEY, TOLERANCE N; WITH HOLDING BRAKE DEGREE OF PROTECTION IP64
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Frequently Asked Questions
Q: Does the 1FK7022-5AK71-1VB0 motor come with an encoder?
A: Yes, Simple absolute encoder (16 S/R, A-16) with Drive-CLiQ interface.
Q:What is the cooling method for motor1FK7022-5AK71-1VB0?
A: The motor relies on natural heat dissipation from the surface of the motor housing for cooling, without the need for an internal fan (i.e., non-forced air cooling).
Q: What is the protection level of the 1FK7022-5AK71-1VB0 motor?
A: The motor boasts the highest level of efficiency and falls under the protection category IP64. Such protection ensures it remains resistant to dust and water ingress.
