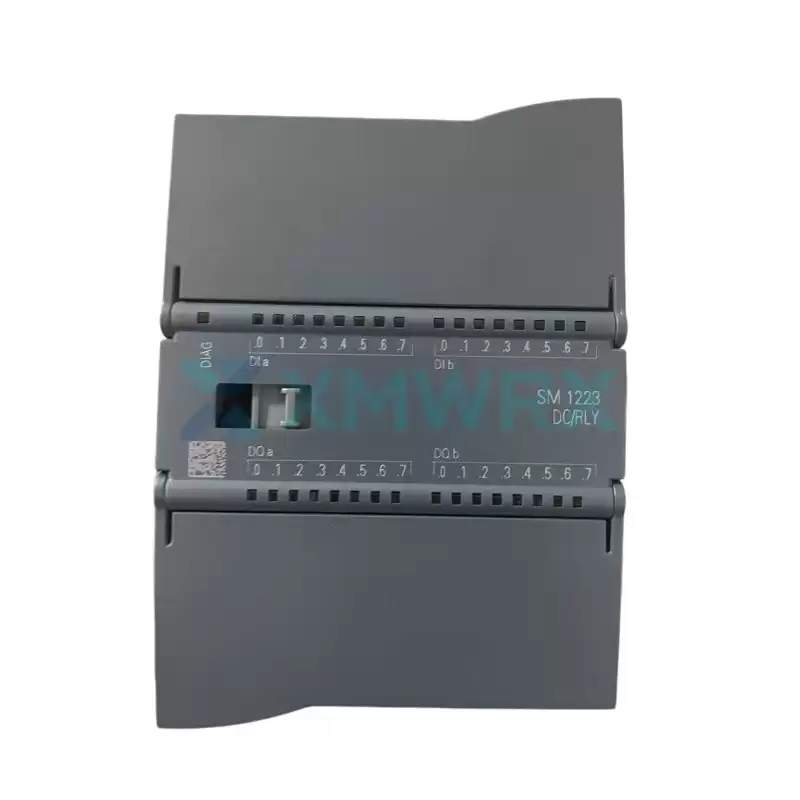

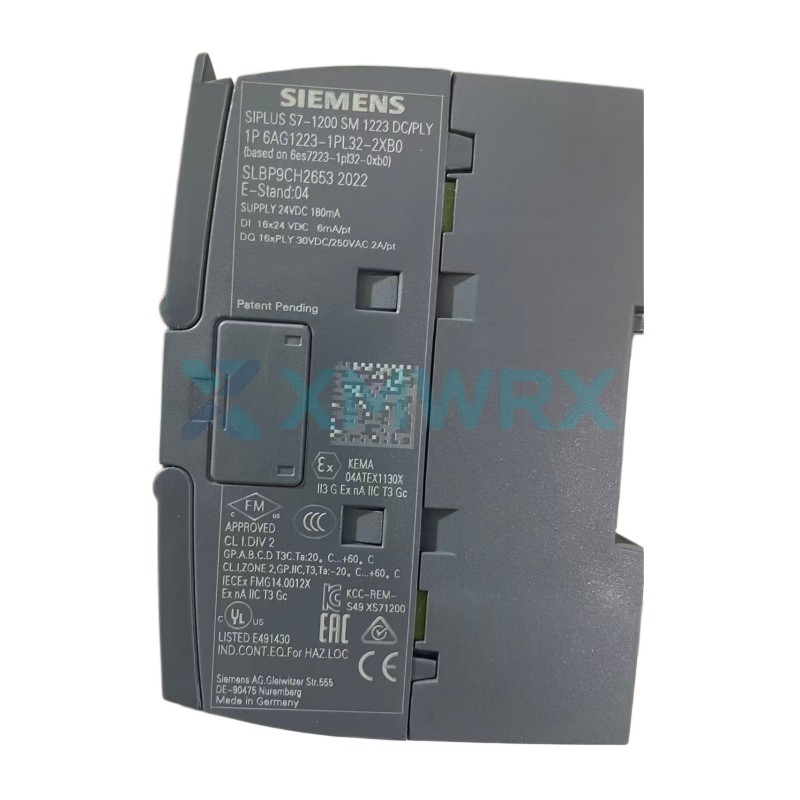

SIEMENS 6AG1223-1PL32-2XB0 SIPLUS S7-1200 SM 1223 16DI/16DQ RLY

Core Features

• ✓  Chemical Industry: Resistant to chemically active substances, suitable for production environments with corrosive gases or liquids.
• ✓  Marine and Shipbuilding Engineering: Resistant to salt spray, suitable for use in high-salinity, high-humidity environments such as ships or offshore platforms.
• ✓  Dust Environments: Resistant to sand and dust intrusion, suitable for dusty environments such as mining, cement, and food processing.
• ✓  High/Low Temperature Environments: Thanks to its wide temperature range design, it can operate stably in ambient temperatures from -25°C to +70°C, meeting the automation control requirements under extreme temperature conditions.
• ✓  High Humidity Environments: Suitable for applications with condensation or high humidity risks, such as outdoor equipment or certain specific processes.
• ✓  Environments with Biocontamination Risks: Resistant to bioactive substances such as molds and fungi, suitable for use in industrial equipment with complex environmental conditions.
•

Q: What are the installation requirements for this module?

A: When installing this module, "heat dissipation" and "protection" are the two most critical considerations. As long as it is housed in a well-protected cabinet and the load limits at high temperatures are observed, it can provide stable control signals even in extreme environments.

Q: How is heat management implemented in this module?

A: For the 6AG1223-1PL32-2XB0, "controlling the ambient temperature" is the best thermal management. Ensure that the control cabinet where it is installed is well-ventilated, and check the load during the hot season to avoid full-load operation at high temperatures.

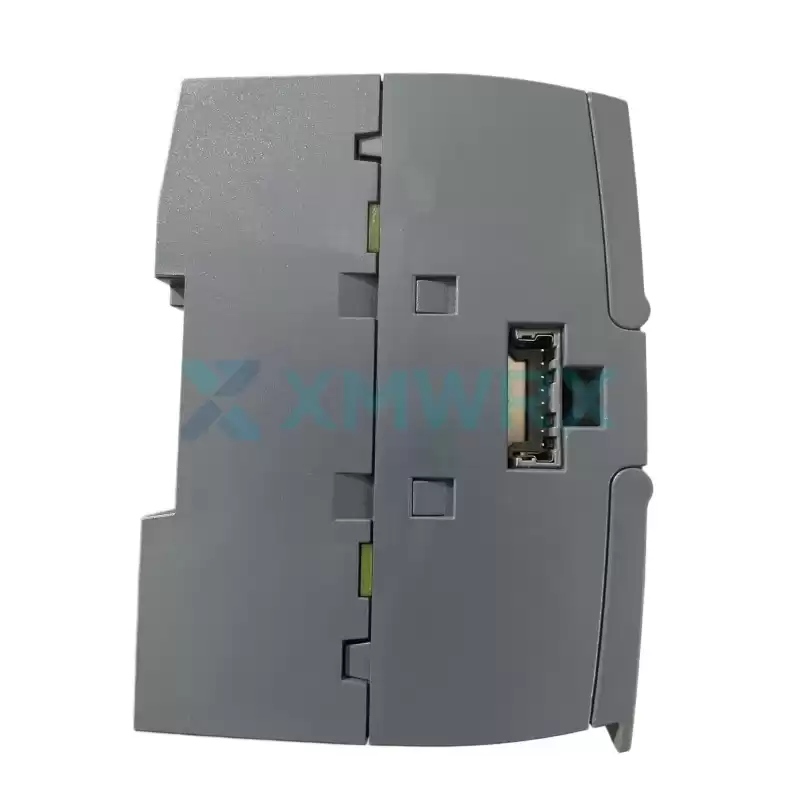

Q: What are the features of the heatsink design in this module?

A: This module has a flat, industrial-grade plastic casing without metal fins. If you are designing a server rack that requires handling the heat dissipation of a large number of these modules, the focus should be on the overall ventilation or air conditioning system of the rack, rather than relying on the module's own heat dissipation structure.
