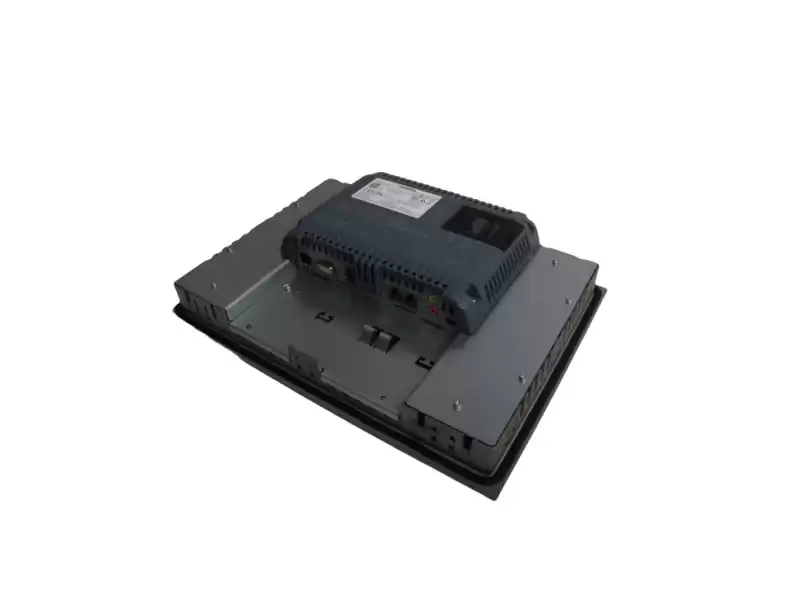

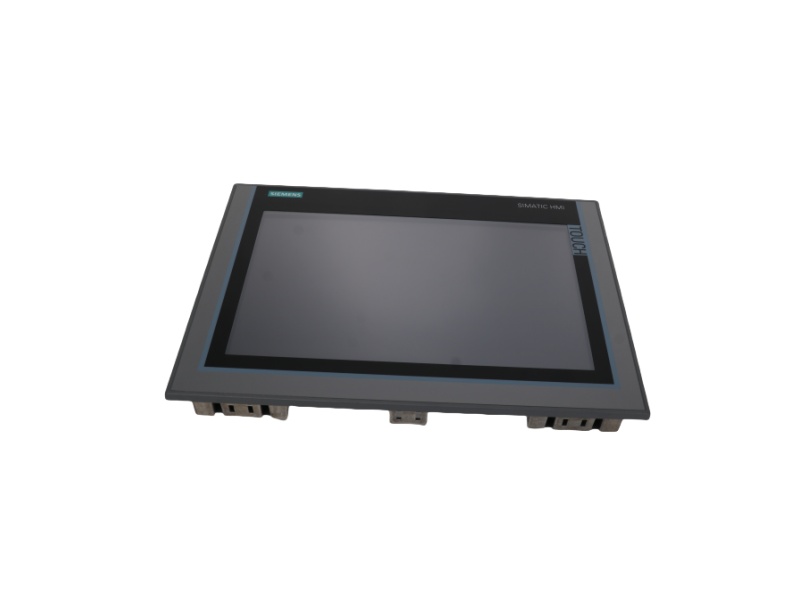

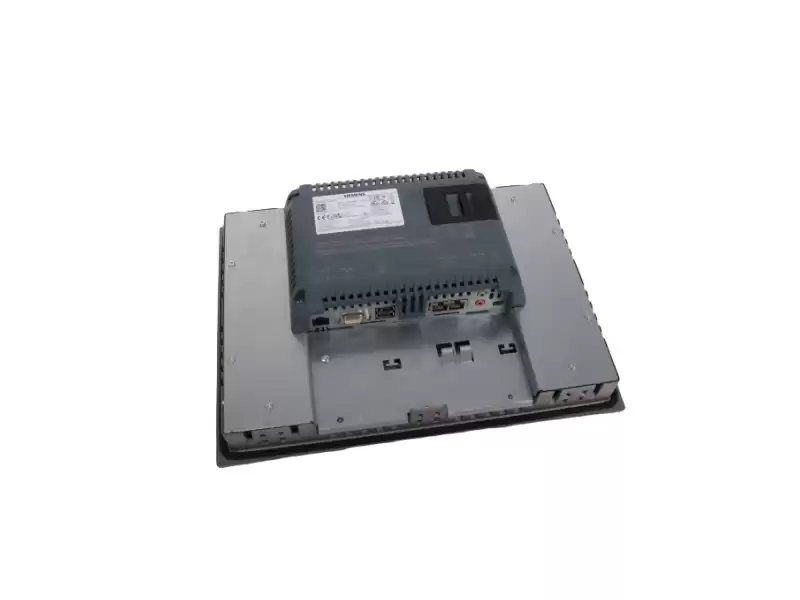

Data Sheet: SIEMENS 6AV2124-0MC01-0AX0 TP1200 Comfort Panel
Overview
6AV2124-0MC01-0AX0 is the 12-inch widescreen touch HMI in the SIMATIC TP1200 Comfort series.
It integrates high-resolution visualization with industrial-grade communications for S7-1200, S7-1500, and third-party PLCs.
Key Specifications
• Display: 12.1ʺ TFT, 1280 × 800 px, 16:9, 16.7 million colors
• Touch: Analog-resistive, 40 soft-keys assignable as I/O
• Memory: 12 MB user + 12 MB system (WinCC Comfort V11+)
• Processor: X86 with Windows CE 6.0 (real-time)
• Supply: 24 V dc (19.2–28.8 V), 0.85 A, 20 W typ
• Interface: 2× PROFINET (integrated switch), 1× PROFIBUS DP/MPI, 2× USB 2.0, 1× USB-Mini-B, 2× SD card slots
• Operating Temp: 0 … 50 °C (front IP65, rear IP20)
• Certifications: CE, UL, ATEX 2/22, marine approvals
Mounting & Mechanical
• Cut-out: 310 × 221 mm, depth 65 mm
• Housing: Cast-aluminium front, weight 2.8 kg (net)
• Orientations: Portrait or landscape, up to 35° tilt without external ventilation
Typical Applications
• SCADA for water treatment plants
• Batch recipe management in food & beverage
• Machine-tool operator interfaces on SINUMERIK systems
• Remote monitoring via VNC, Web server, or OPC UA
Related & Ordering Information
|
Part Number
|
Description
|
Lead time
|
|
6AV2124-0MC01-0AX0
|
TP1200 Comfort 12ʺ touch, 24 V dc
|
Ready stock
|
|
6AV2124-0MC24-0AX0
|
TP1200 Comfort Pro (support-arm mount)
|
Ready stock
|
|
6AV2124-1MC01-0AX0
|
KP1200 Comfort 12ʺ key panel
|
Ready stock
|
|
6AV2124-0JC01-0AX0
|
TP900 Comfort 9ʺ touch
|
Ready stock
|
|
6AV2124-0QC02-0AX1
|
TP1500 Comfort 15ʺ touch
|
Ready stock
|
|
6AV2181-8XP00-0AX0
|
Protective film kit for TP1200
|
Ready stock
|
|
6AV6671-8XA00-0AX0
|
SD card 2 GB with license key
|
Ready stock
|
|
6AV6671-8XB10-0AX1
|
USB extension cable 5 m
|
Ready stock
|
All units are factory-sealed, in stock for same-day dispatch, and carry full manufacturer warranty.
