Product Description:

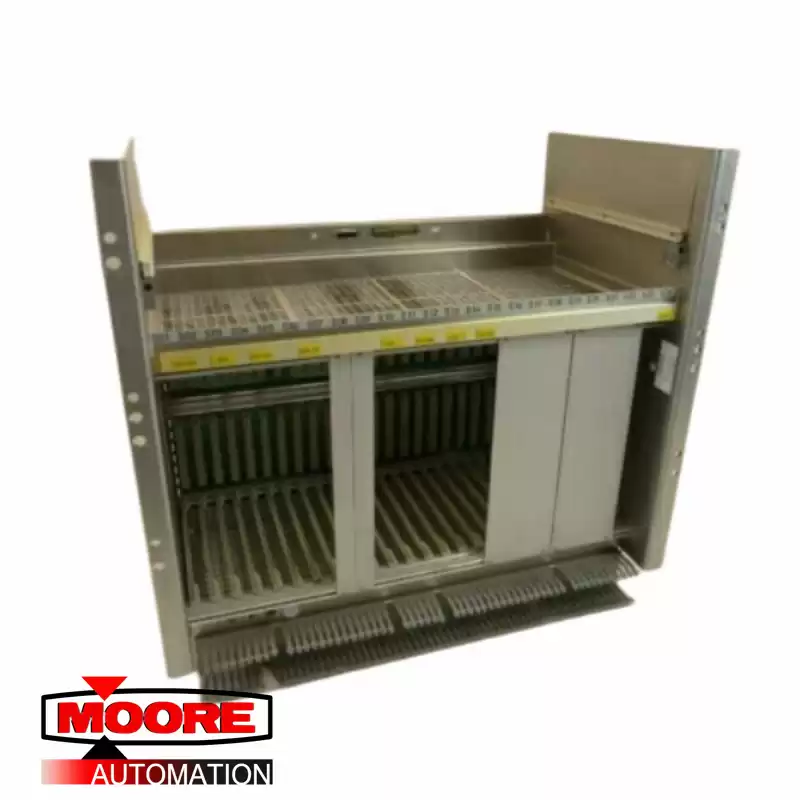

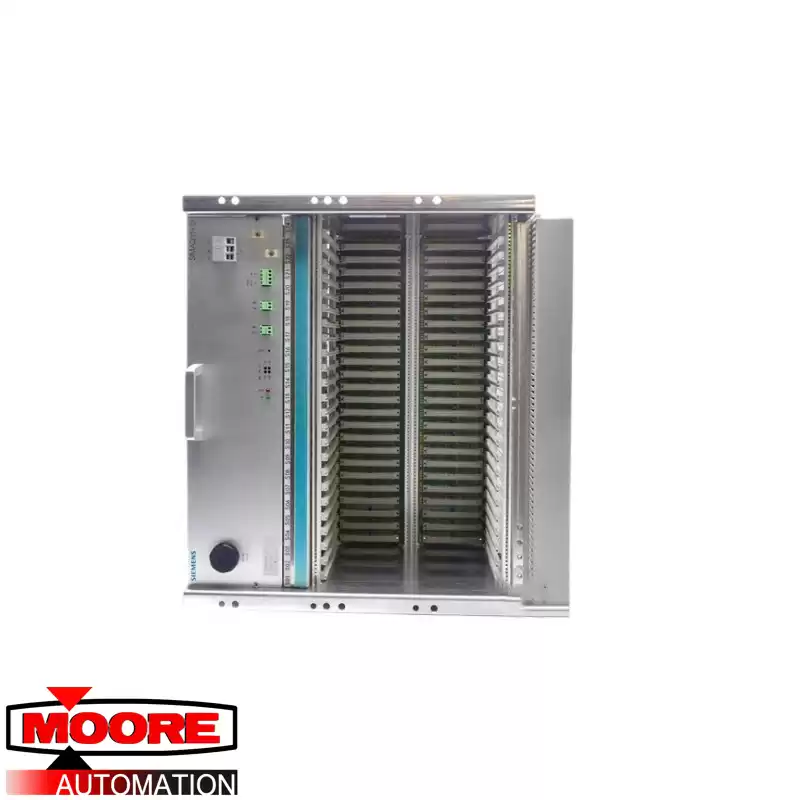

The subracks accommodate SIMADYN D modules with the format (HT)
233.4 220 mm².
An integrated power supply provides the necessary voltages for the modules
via 2 backplane buses (L bus, C bus) and permits data transfer between
them.
The power supply plugs into the SIMADYN D rack.
The power supply has a line filter which limits the radio interference voltage
to limit value class A in accordance with VDE 0871.
Green LED: Error-free operation
Red LED: Fault condition
Compartment for the back-up battery
Supply voltage connection (screw/plug-in terminal X1)
Connection for an external back-up battery via screw/plug-in terminal X3
(this is optional to a back-up battery which can be inserted in the subrack
itself)
