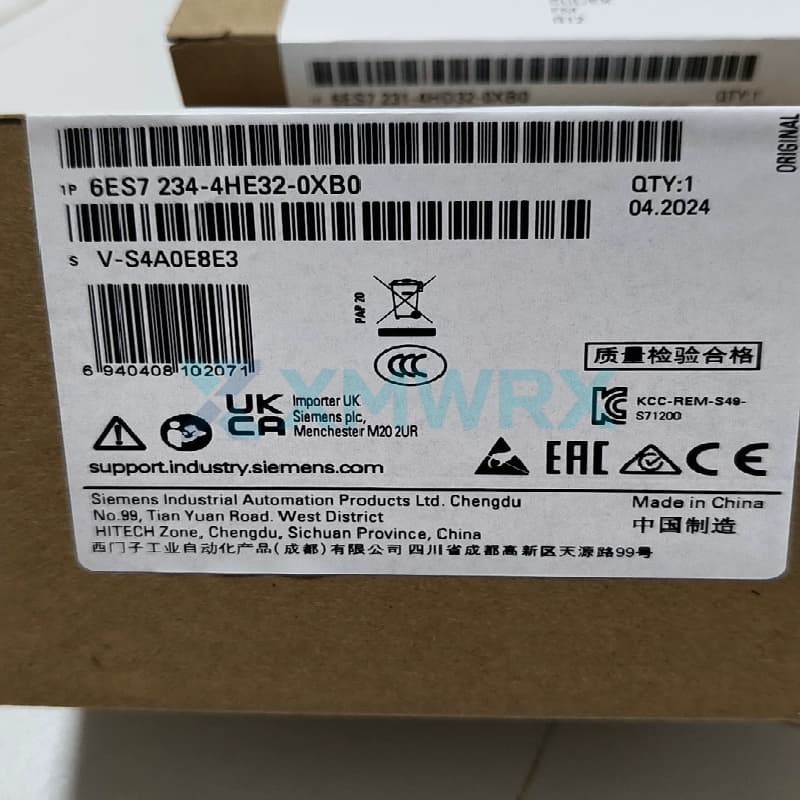

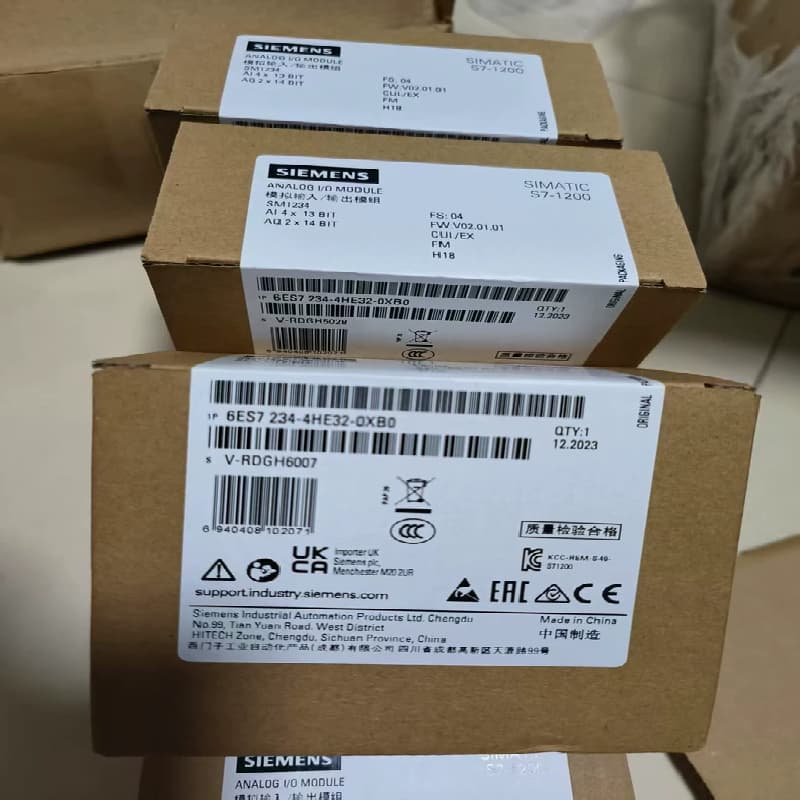

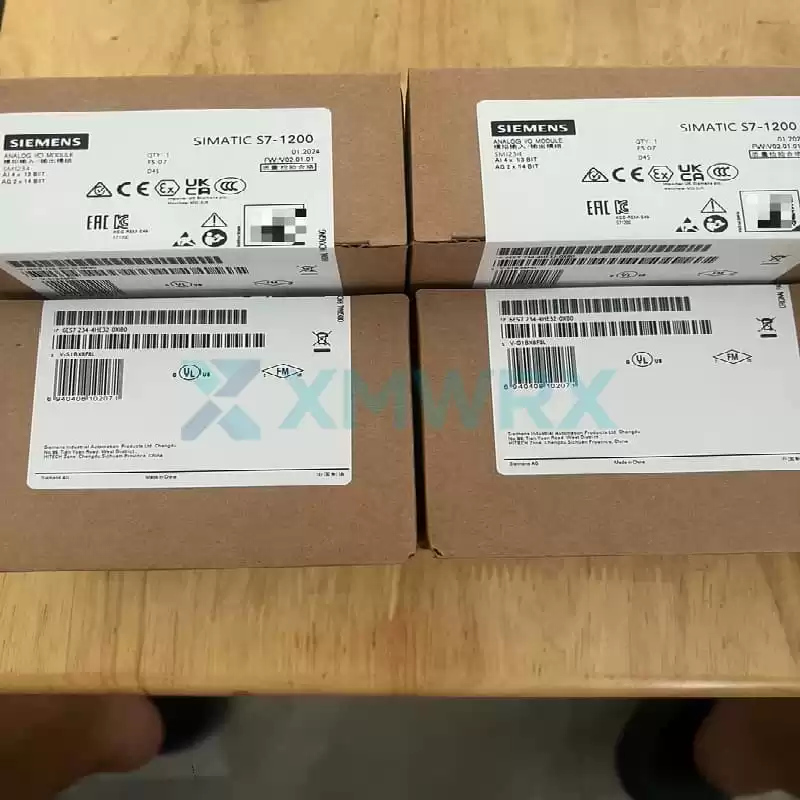

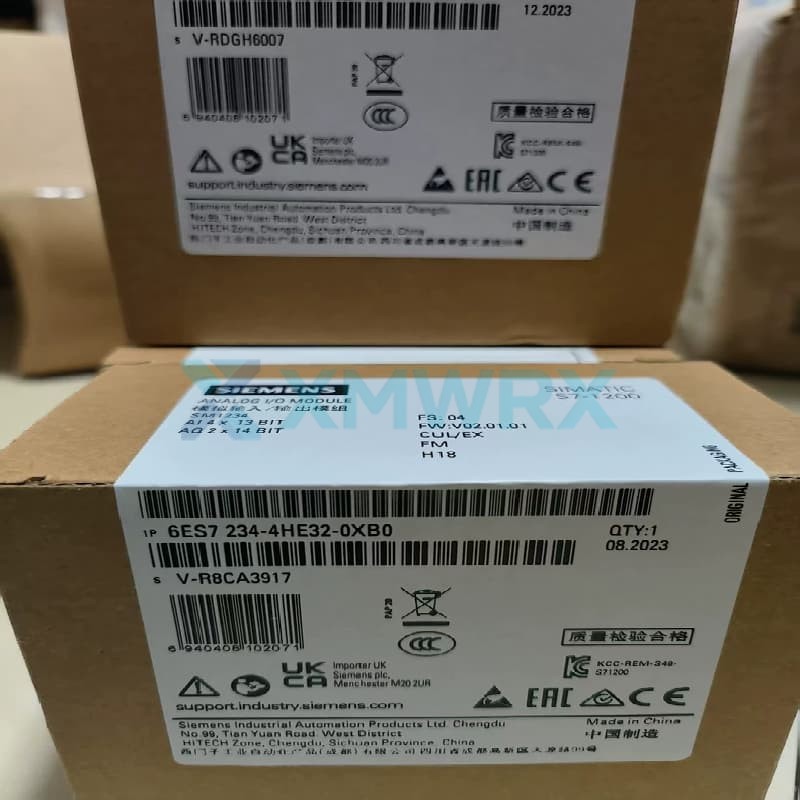

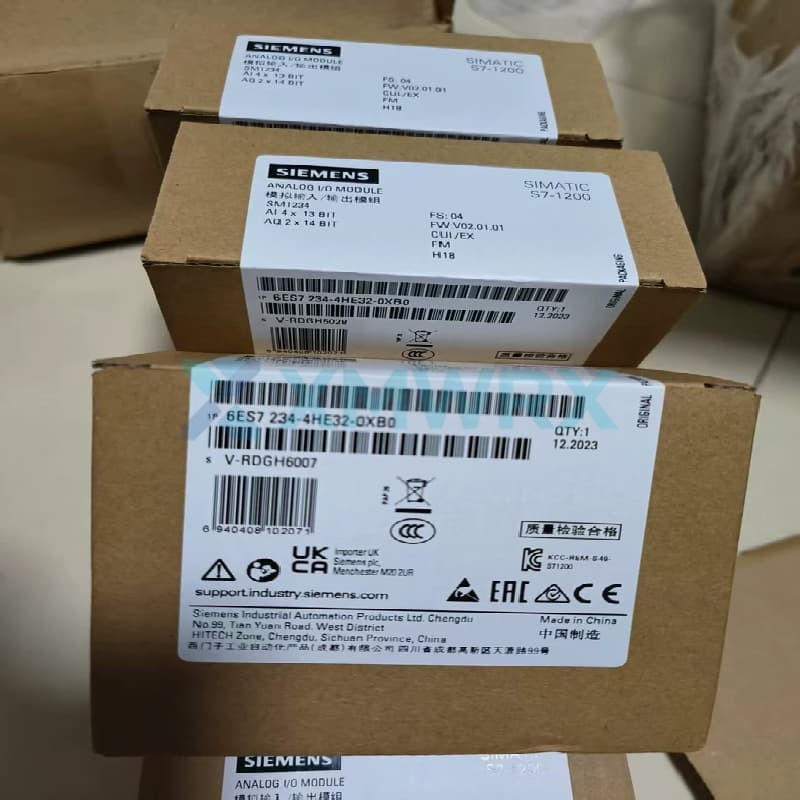

SIEMENS 6ES7234-4HE32-0XB0 SIMATIC S7-1200 series analog input/output signal modules

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original SIEMENS Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

6ES7234-4HE32-0XB0
Product Type Analog input/output signal module
Product Origin China
Shipping Port Xiamen
Weight

0.22 kg

Facebook Twitter Pinterest LinkedIn 分享

The 6ES7234-4HE32-0XB0 is an analog input/output signal module (SM 1234) from the Siemens SIMATIC S7-1200 series.

It features four analog inputs and two analog outputs, used to convert analog signals from sensors and other devices into digital signals that can be processed by the PLC, or to convert digital commands from the PLC into analog signals to control actuators. This module supports voltage (±10V) and current (0/4-20mA) signals, meeting the needs of various industrial automation scenarios. With an IP20 protection rating, it is suitable for installation in control cabinets and is an officially recognized Siemens product (PM300).

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  Signal Conversion: Converts analog signals (such as temperature and pressure) into digital signals for PLC processing; simultaneously converts digital signals into analog signals (such as 0-10V, 4-20mA) to control field devices.
  • ✓  High Precision and Stability: Voltage input resolution reaches 14 bits, current input resolution reaches 13 bits, and 40dB of power frequency interference suppression is provided to ensure signal stability.
  • ✓  Fast Response: The maximum cycle time for all channels is 625µs, enabling rapid response to control demands.
  • ✓  Diagnostics and Protection: Integrated diagnostic functions monitor faults such as open circuits, short circuits, and power supply voltage issues, and quickly display the status via LED indicators.

Technical Specifications

Brand

SIEMENS
Model / Part Number 6ES7234-4HE32-0XB0
Input Channels 4-channel analog input (differential), supporting ±10V, ±5V, ±2.5V, 0-20mA, 4-20mA
Output Channels 2-channel analog output, supporting -10V to +10V, 0-20mA, 4-20mA
Resolution 14-bit voltage input; 13-bit current input; 14-bit voltage output; 13-bit current output
Load Impedance Minimum 1kΩ for voltage output; maximum 600Ω for current output
Protection Rating IP20
Dimensions (H x W x D) 100 x 45 x 75 mm
Supply Voltage 24V DC
Power Consumption Typical 2W

Frequently Asked Questions

Q: Where is this module typically used?

A: It is mainly used in scenarios requiring the acquisition or output of continuously changing physical quantities, such as temperature, pressure, and flow monitoring in industrial automation. It can also be used in building automation (such as HVAC systems) and process control industries.

Q: Can it be directly connected to a resistance temperature detector (RTD) or thermocouple?

A: No. It does not directly support the signal types of RTDs or thermocouples. To connect these sensors, a dedicated RTD/thermocouple input module is required.

Q: Which PLC systems is it compatible with?

A: It is designed specifically for Siemens SIMATIC S7-1200 series PLCs, connected via a backplane bus, and mounted on the right side of the CPU.
