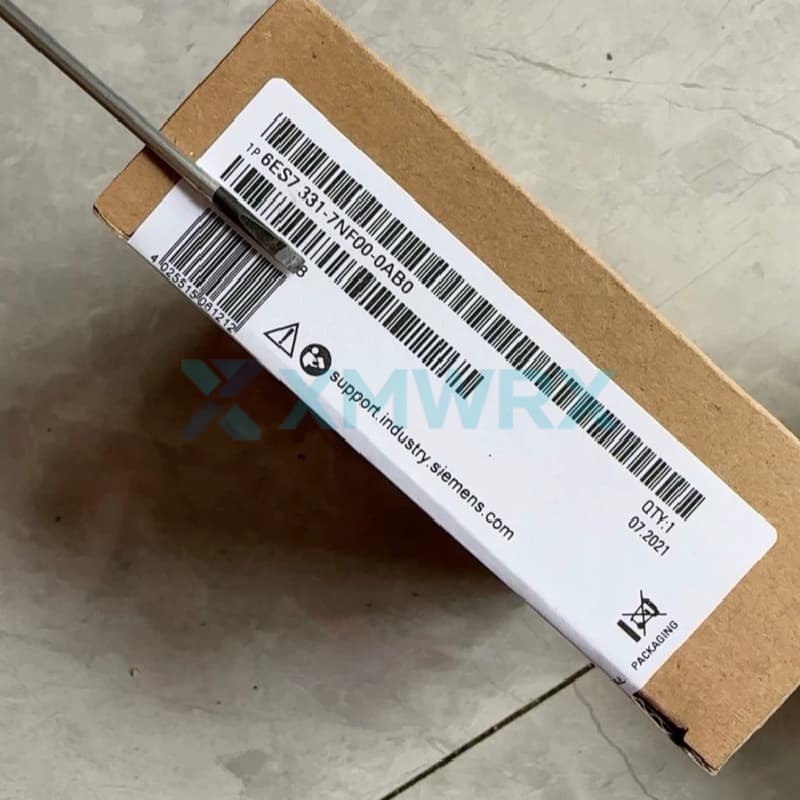

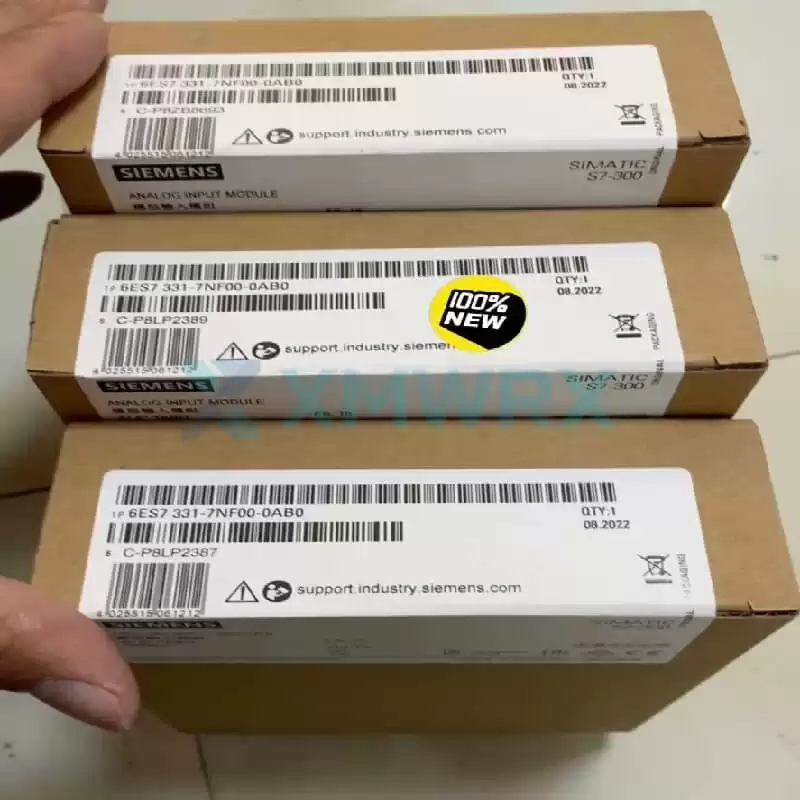

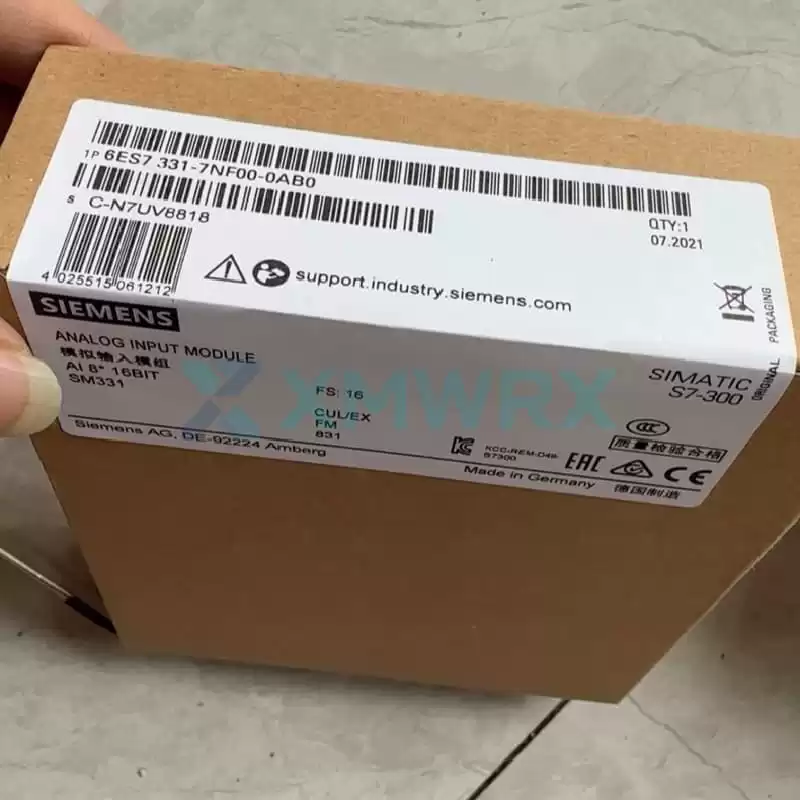

SIEMENS 6ES7331-7NF00-0AB0 SIMATIC S7-300 series SM331 analog input module

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original SIEMENS Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

6ES7331-7NF00-0AB0
Product Type SM331 Analog Input Module
Product Origin Germany
Shipping Port Xiamen
Weight 0.27 kg

Facebook Twitter Pinterest LinkedIn 分享

The 6ES7331-7NF00-0AB0 is the Siemens SIMATIC S7-300 series SM331 analog input module.

It features eight analog input channels, converting voltage or current signals from field devices (such as sensors and transmitters) into digital values ​​that can be processed by the PLC. This module boasts 16-bit high resolution, electrical isolation between channels and the backplane bus, and diagnostic alarm functions, making it suitable for industrial automation scenarios requiring high precision and reliability.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  High-precision acquisition: 16-bit resolution ensures accurate digitization of analog signals.
  • ✓  Multi-signal types: Supports ±10V, ±5V, and 1-5V voltage signals and 0/4-20mA and ±20mA current signal inputs, offering high flexibility.
  • ✓  Electrical isolation: Isolation is achieved between the channel and the backplane bus, effectively enhancing anti-interference capabilities and system security.
  • ✓  Intelligent diagnostics and alarms: Built-in parameterizable diagnostic and limit alarm functions facilitate fault diagnosis and maintenance.

Technical Specifications

Brand

SIEMENS
Model / Part Number 6ES7331-7NF00-0AB0
Number of Channels 8 analog inputs
Measurement Range Voltage (±5/10V, 1-5V), Current (±20mA, 0/4-20mA)
Resolution 16-bit
Conversion Time Approx. 55ms
Supply Voltage 24V DC
Power Consumption Typical 0.6W
Dimensions 40 x 125 x 117 mm
Operating Temperature -25°C to +60°C

Frequently Asked Questions

Q: Can this module connect to thermocouples or RTDs?

A: No. This module only supports voltage and current signals and does not support direct connection to thermocouples or RTDs.

Q: How do I set the signal type (e.g., voltage or current) for this module?

A: It does not have a physical range card. Measurement range and other parameters (such as diagnostics and filtering) need to be configured for each channel group in the hardware configuration using programming software (such as STEP 7).

Q: Can this module be used in an S7-1500 system?

A: It cannot be directly replaced. This module is specific to the S7-300 series. Although Siemens offers the S7-1500 series (such as 6ES7531-7NF10-0AB0) as migration options for system upgrades, they are not plug-and-play compatible replacements.
