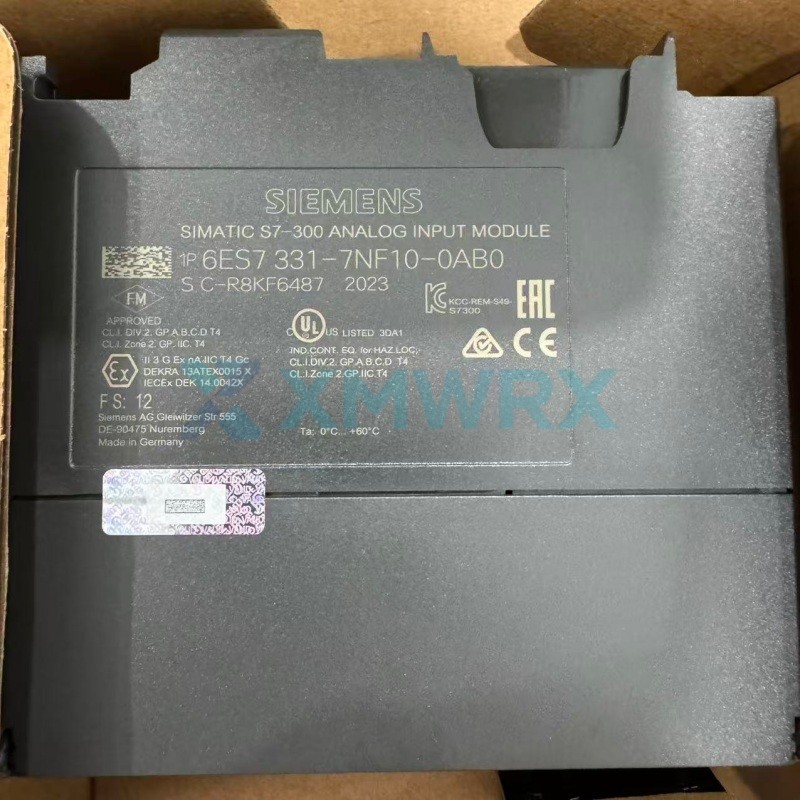

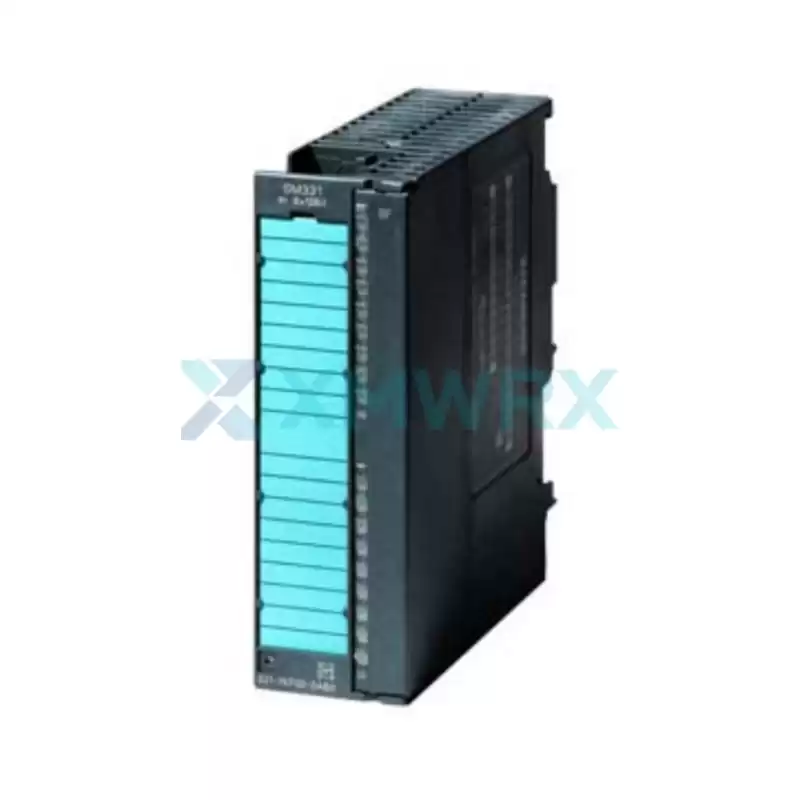

SIEMENS 6ES7331-7NF10-0AB0 Analog Input Module SM 331

Core Features

• ✓  High-Precision Measurement: This module features 16-bit conversion resolution, enabling precise capture of minute signal changes. This makes it ideal for measuring physical quantities requiring fine control, such as temperature, pressure, and flow.
• ✓  Flexible Signal Support: It supports multiple standard analog signal inputs. Users can configure the desired signal type for each channel individually in the software.
• ✓  Strong Anti-Interference Capability: The module employs opto-isolation technology, ensuring electrical isolation between the analog circuitry and the PLC backplane bus (insulation test voltage AC 500V). This effectively prevents damage to the CPU from strong electrical interference in the field, ensuring system stability.
• ✓  Diagnostic Functions: The module panel is equipped with SF (red) group fault indicator lights. These lights illuminate when open circuits, short circuits, or configuration errors occur, helping maintenance personnel quickly locate the fault.
• ✓  High-Speed ​​Mode: Although it is an 8-channel module, it supports a "4-channel mode." In this mode, the module's conversion speed can be increased to 10ms, suitable for applications with high real-time requirements.
•
•

Q: What is the specific measurement accuracy of this module?

A: The measurement accuracy of this module is mainly determined by two core indicators: the basic error limit and the resolution. Simply put, its standard accuracy is ±0.1%, but higher resolution or faster speed can be achieved through software settings.

Q: How effective is this module at resisting interference?

A: This module exhibits strong anti-interference capabilities in industrial automation environments. This is primarily due to its use of channel group isolation technology, combined with built-in hardware filtering and software algorithms, which effectively combats electromagnetic interference generated by equipment such as frequency converters and high-voltage motors.

Q: What details should be paid attention to when wiring to avoid interference?

A: Due to its unique channel group isolation design (no common MANA terminal), the core principle of wiring is to ensure that the reference potential of each channel group is independent and correctly connected. Improper wiring can easily lead to numerical fluctuations, over-range (7FFFH), or even damage to the module.
