SIEMENS 6SL3210-1PE23-3UL0 SINAMICS G120 series power modules (PM240-2)

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original SIEMENS Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

6SL3210-1PE23-3UL0
Product Type SINAMICS G120 Power Module PM240-2
Product Origin Germany
Shipping Port Xiamen
Weight 4.80 kg

Facebook Twitter Pinterest LinkedIn 分享

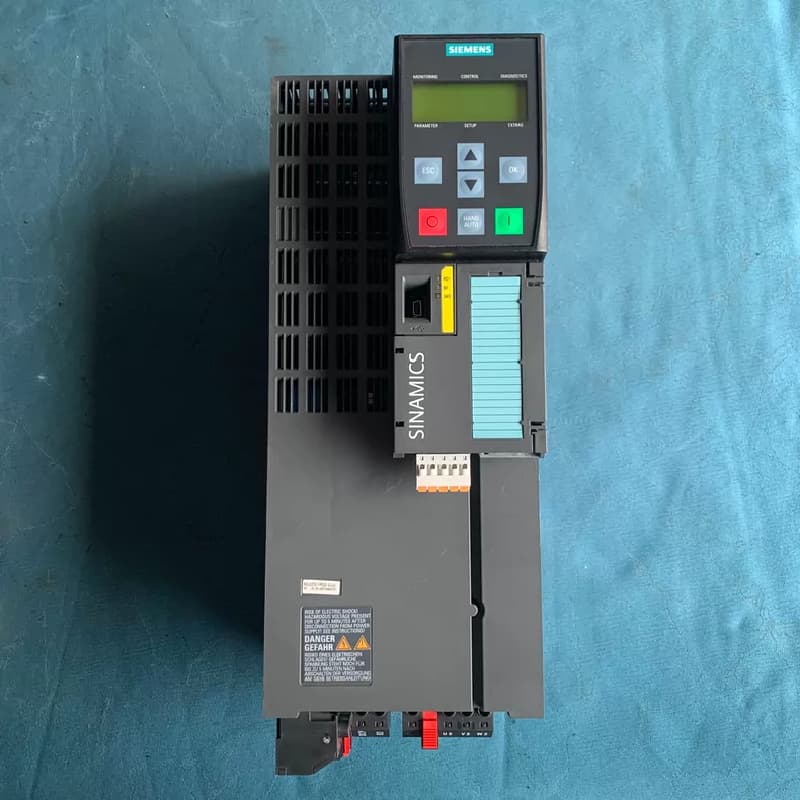

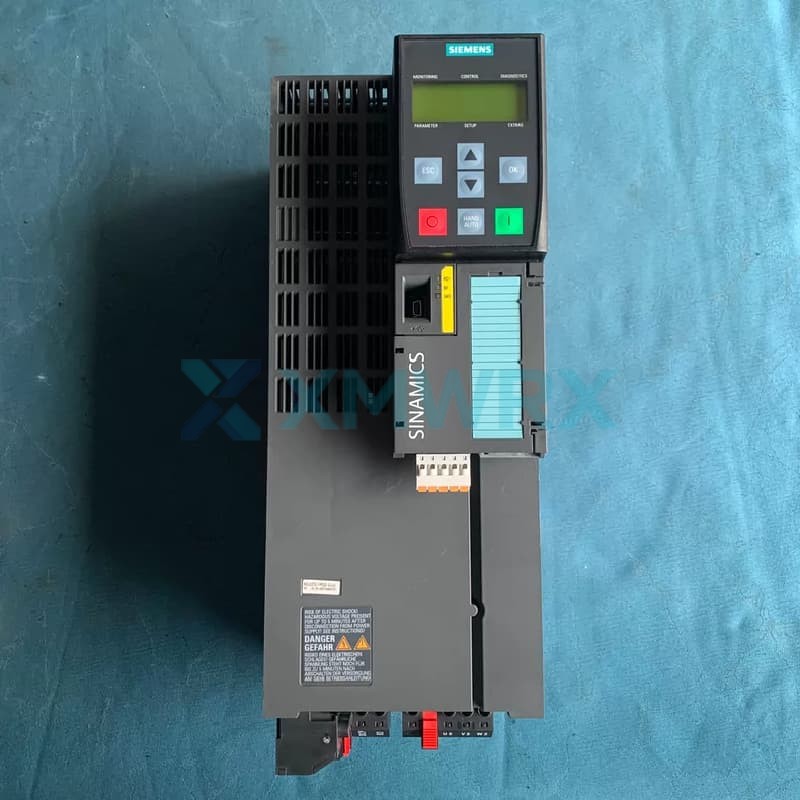

The 6SL3210-1PE23-3UL0 is a power module (PM240-2) from the Siemens SINAMICS G120 series.

As the core component of a modular frequency converter, it is responsible for converting the input AC power into the different frequencies and voltages required for motor operation, thereby achieving precise speed regulation and control. This model features a filterless design with an integrated braking chopper and is suitable for 380-480V power grids.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  Motor Speed ​​Control: Precise control of motor speed and torque adapts to diverse industrial application requirements.
  • ✓  Integrated Braking Capability: Built-in brake chopper supports rapid braking and four-quadrant operation; external braking resistor can be connected.
  • ✓  High Overload Capacity: Offers high and low overload modes to handle short-term impact loads. For example, in heavy overload (HO) mode, the 11kW power unit can withstand 200% overload for 3 seconds.
  • ✓  Modular Design and Flexibility: As a power unit in the G120 series, it can be flexibly combined with different control units (CUs) to adapt to application requirements ranging from simple to complex.

Technical Specifications

Brand

SIEMENS
Model / Part Number 6SL3210-1PE23-3UL0
Input Voltage 3AC 380-480V +10/-10%
Rated Power (Heavy Overload) 11 kW
Rated Power (Light Overload) 15 kW (15 HP)
Overload Capacity (Heavy Overload) 200% for 3 seconds
Protection Rating IP20
Dimensions (H x W x D) 355 mm x 140 mm x 165 mm

Frequently Asked Questions

Q: What scenarios is this module used in?

A: It is widely used in applications requiring speed regulation of medium-power motors, such as water pumps, fans, conveyor belts, and various general-purpose machinery. It is an ideal choice for achieving energy saving and precise control.

Q: Can it work directly?

A: No. It is only a power unit and must be combined with a control unit (CU) (such as CU240E-2 PN) and an operation panel (such as BOP-2) from the SINAMICS G120 series to form a complete frequency converter system.

Q: What is the difference between this model and 6SL3210-1PE22-7AL0?

A: They are modules from the same series but with different power ratings. The model you inquired about has a power rating of 11kW/15kW, while the latter is 2.2kW. The main difference lies in the rated output current and the applicable motor power.
