Q: In which industries or scenarios is this module commonly used?
A: This module is a high-power spare part, primarily used in heavy industrial environments requiring high-power drive and extremely short system uptime, such as large fans, water pumps, compressors, ship propulsion, rolling mills, and mining conveyor belts. When the original rectifier unit in the SINAMICS S120 drive system fails, this spare part allows for rapid replacement, minimizing losses due to production downtime.
Q: Why is this module marked as a "spare part" and labeled "no feedback function"? What should be considered when purchasing and using it?
A: The core positioning of this product is replacement and repair, not integration into new equipment. Furthermore, because it is a BLM (Basic Power Module), it cannot feed braking energy back to the grid like an ALM (Active Power Module). In applications requiring frequent rapid braking or potential energy loads (such as descending cranes), an additional braking resistor or energy feedback unit must be configured; otherwise, the DC bus voltage will rise, leading to overvoltage faults.

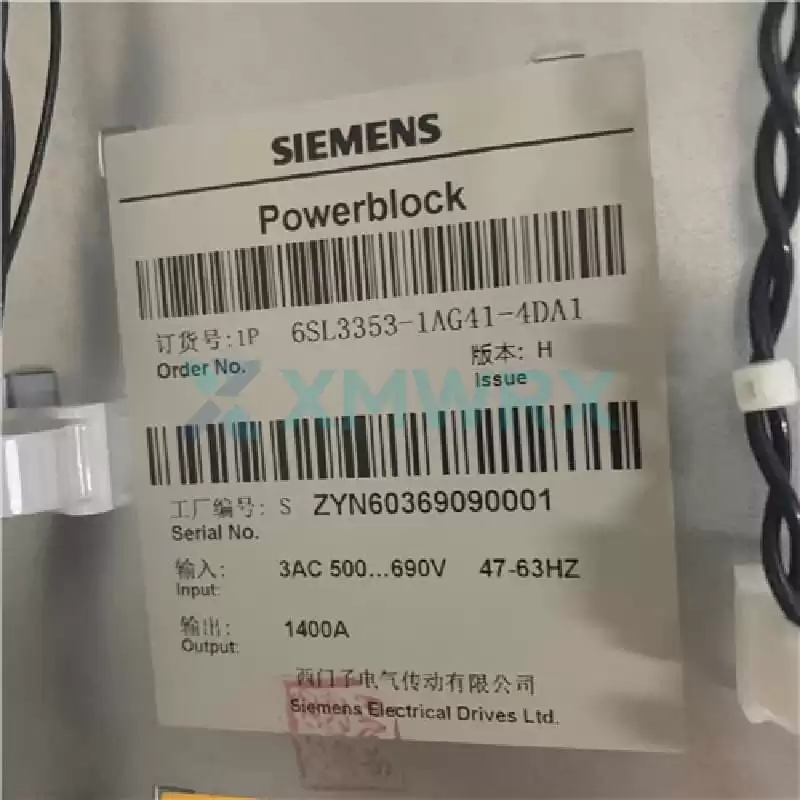

Q: Can the 6SL3353-1AG41-4DA1 be used with any SINAMICS S120 motor module?
A: Yes, but with strict electrical parameter matching requirements. This rectifier module outputs 1400A of DC current and can only be used with motor modules whose total DC bus current requirement does not exceed its rated value (usually derating is considered). For example, it can drive a single large 1300A motor module, or drive multiple small modules in parallel with a total current of less than 1400A. Precise current calculations must be performed when planning the drive system; mismatch will cause module overload or malfunction.
