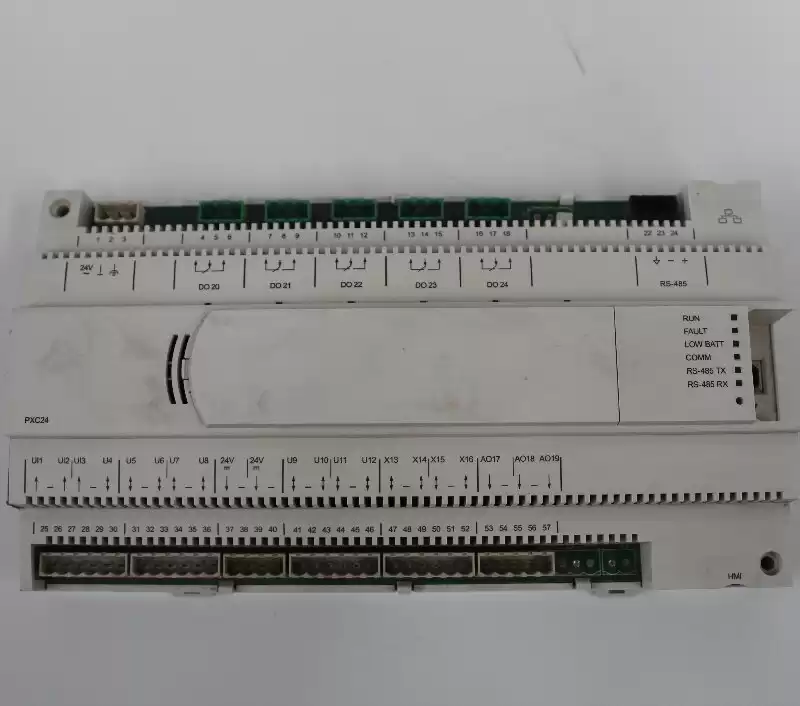

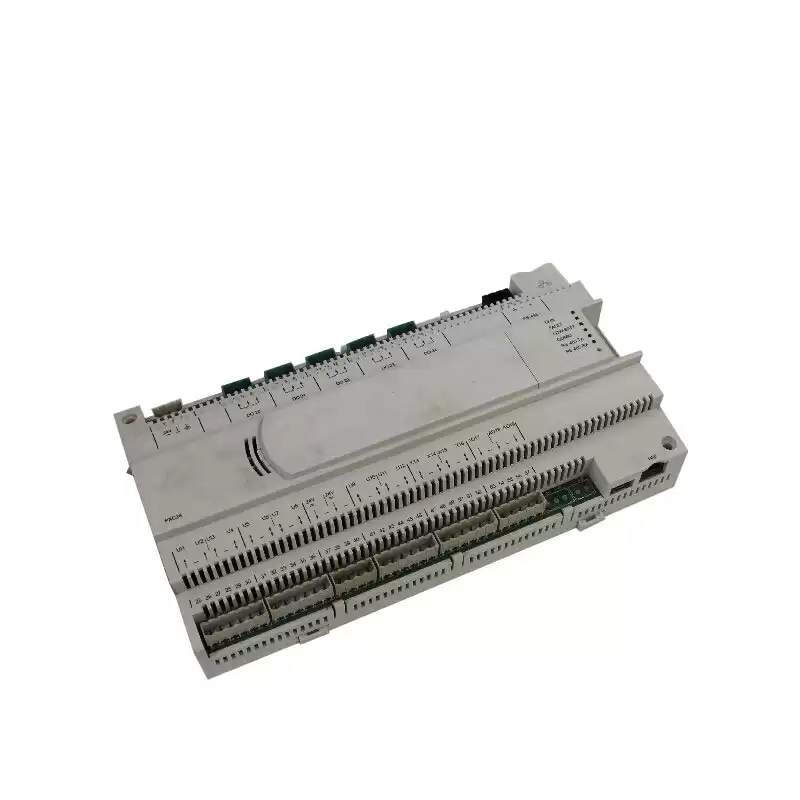

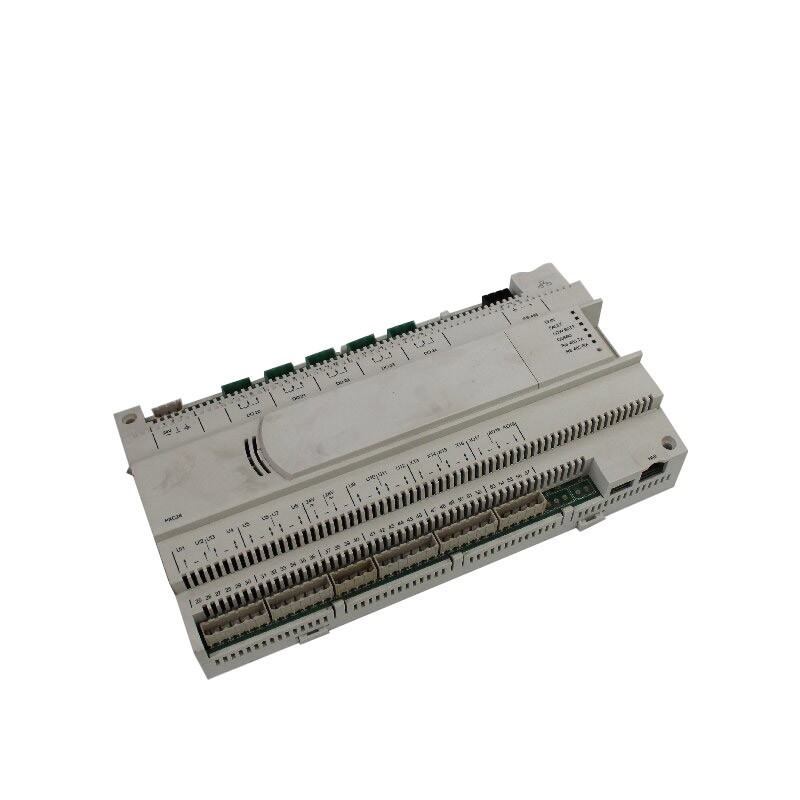

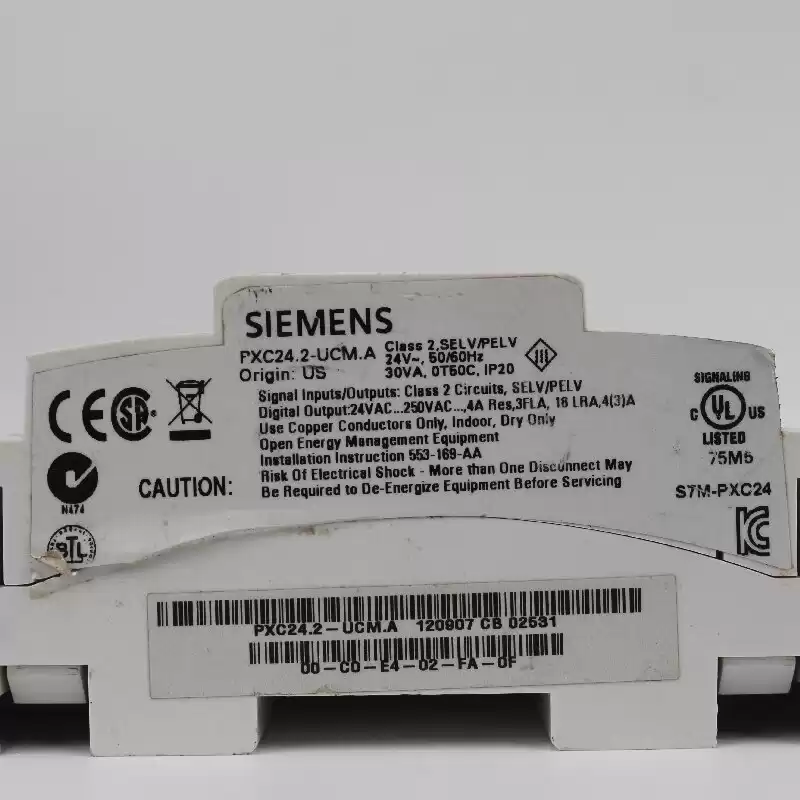

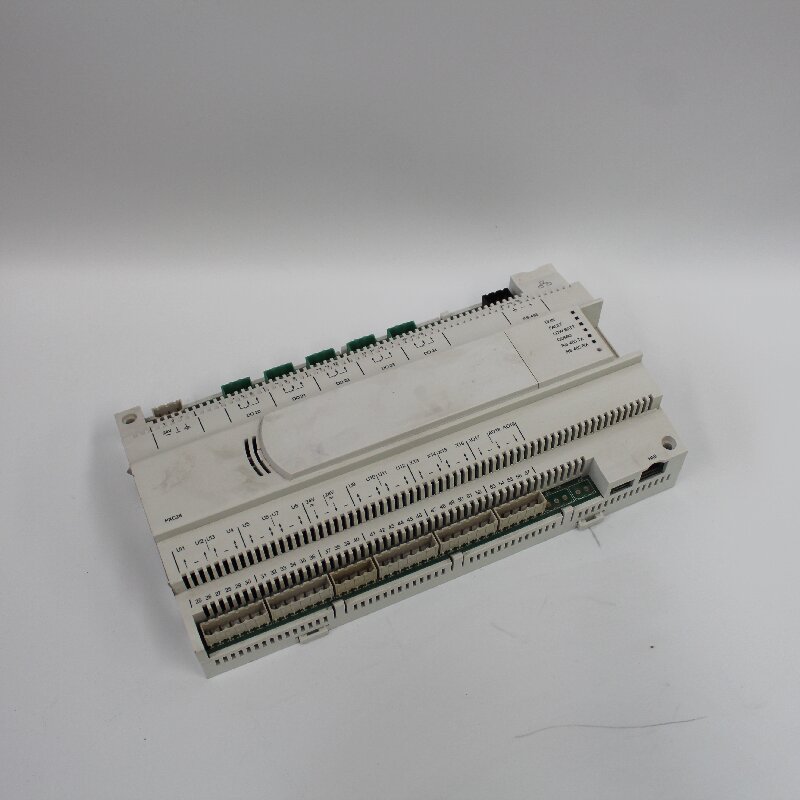

PXC24.2-UCM.A PLC Module Description:

　　The PXC Compact Series Unitary Equipment Controller (Programmable Controller–Compact) for BACnet networks is a high-performance Direct Digital Control (DDC) equipment controller, which is an integral part of the APOGEE Automation System. The controllers are classified as a BACnet Advanced Application Controller (B-AAC) with support for BACnet MS/TP protocol.

　　The PXC Compact UEC Series offers integrated I/O based on state-of-the-art TX-I/O™ Technology, which provides superior flexibility of point and signal types, and makes it an optimal solution for Air Handling Unit (AHU) control. The Unitary Equipment Controller communicates with other field panels or workstations on a peer-to-peer Automation Leve

　　Network (ALN), or on the Field Level Network (FLN), and supports the following communication options:Native BACnet MS/TP on RS-485

　　Features:

　　*BACnet Testing Laboratories (BTL) certified Classified as BACnet Advanced Application Controllers (B-AAC) using the BACnet MS/TP protocol for specific models.

　　*Sophisticated Adaptive Control, a closed loop control algorithm that auto adjusts to compensate for load/seasonal changes.Message control for terminals, printers, pagers, and workstations.

　　*HMI RS-232 and USB port, which provides laptop connectivity for local operation and engineering.

　　*Extended battery backup of Real Time Clock.Auto Save and persistent database backup and restore within the controller.

　　*PXM10T and PXM10S support: Optional LCDLocal user interface with HOA (Hand-off-auto) capability and point commanding and monitoring features.

　　* An extended temperature range for the control of rooftop devices.
