Main material ：

(0.4-0.75mm) high thermal conductivity silicone rubber fabric +(0.03-0.1mm)nichrome + (0.4-0.75mm) high thermal conductivity silicone rubber fabric

Physical and electrical characteristics ：

Specifications of the products：custom made

Color：Orange or custom made

Voltage range ：0-600VAC/DC

 Maximum operation temperature：220℃（Long term below 200℃ ）

Dielectric Strength ：≥1500VAC/MIN

Insulation Resistance：≥100MΩ

Thickness ：1.2mm/1.5mm or custom made

Recommended power density：0.15~0.6W/cm²

Mechanical compressive strength ：100KG/cm²

Density of maximum power：0-2W/cm²

Tension of guide line：≥80N

Working life：5-10yeas

Tension of welding point：≥20N

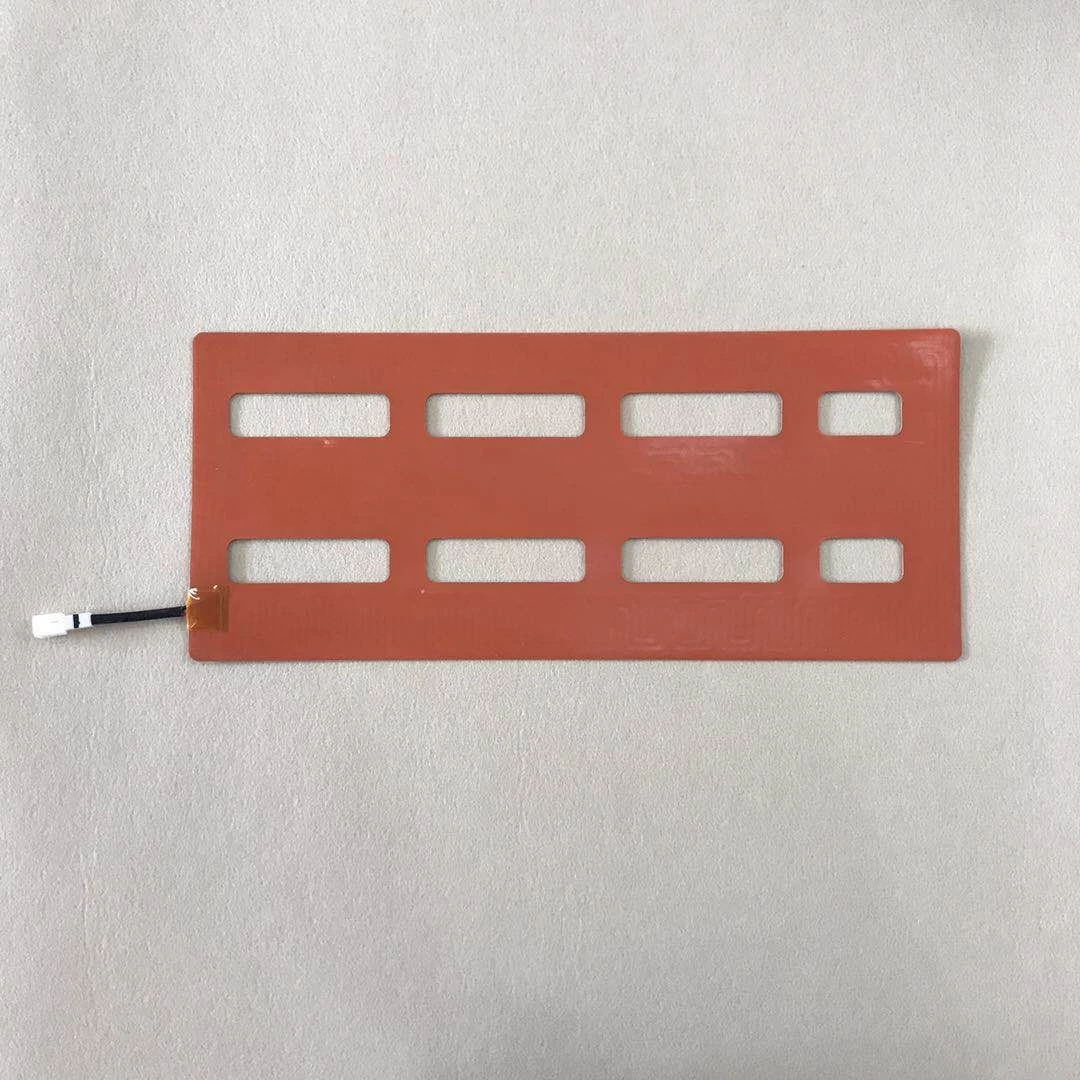

Silicone heaters is lightweight, thin,  and flexible, it can also easily be bonded to equipment at your facility by the use of adhesives, fasteners or RTV, Silica offers a wide range of options to ensure that the desired performance characteristics are met.  And Each slice is combined by two glass fibre  cloth and two silicone glass fibre  cloth. Swift heating, unit temperature, high heat efficiency, user-friendly, safe and long life silicone rubber heating slice is  the best choice.
