Main material :

(0.4-0.75mm) high thermal conductivity silicone rubber fabric +(0.03-0.1mm)nichrome + (0.4-0.75mm) high thermal conductivity silicone rubber fabric.


Physical and electrical characteristics :
Specifications of the products:custom made
Maximum operation temperature:220℃(Long term below 200℃ )
Color:Orange or custom made
Recommended power density:0.15~0.6W/cm2
Mechanical compressive strength :100KG/cm2
Density of maximum power:0-2W/cm2
Tension of guide line:≥80N
Dielectric Strength :≥1500VAC/MIN
Ambient temperature range:-52℃~250℃
Insulation Resistance:≥100MΩ
Thickness :1.5mm or custom made
Working life:5-10yeas

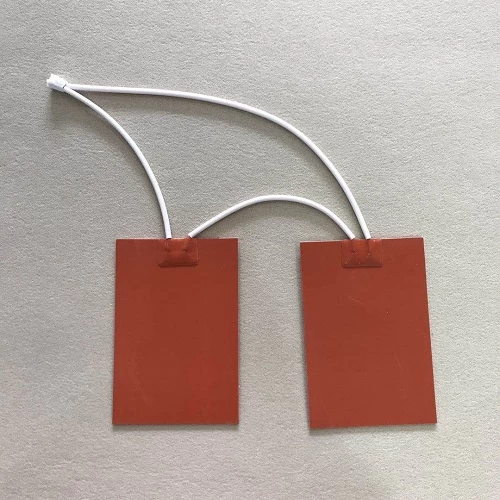

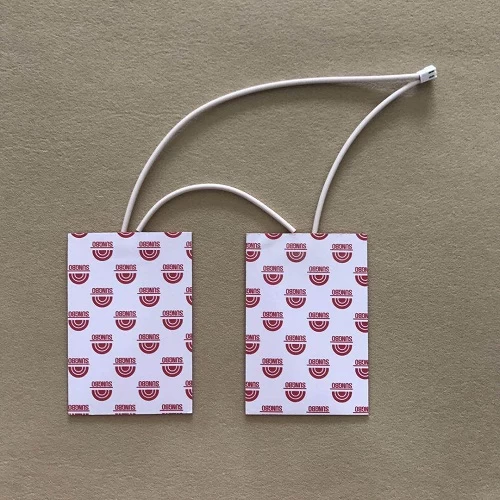

Silicone heaters is lightweight, thin,  and flexible, it can also easily be bonded to equipment at your facility by the use of adhesives, fasteners or RTV, Silica offers a wide range of options to ensure that the desired performance characteristics are met.  And Each slice is combined by two glass fibre  cloth and two silicone glass fibre  cloth. Swift heating, unit temperature, high heat efficiency, user-friendly, safe and long life silicone rubber heating slice is  the best choice.
