Main material :

(0.4-0.75mm) high thermal conductivity silicone rubber fabric +(0.03-0.1mm)nichrome + (0.4-0.75mm) high thermal conductivity silicone rubber fabric

Physical and electrical characteristics :

Voltage range :0-600VAC/DC

 Maximum operation temperature:220℃(Long term below 200℃ )

Dielectric Strength :≥1500VAC/MIN

Ambient temperature range:-52℃~250℃

Insulation Resistance:≥100MΩ

Thickness :1.2mm/1.5mm or custom made

Specifications of the products:custom made

Color:Orange or custom made

Recommended power density:0.15~0.6W/cm²

Mechanical compressive strength :100KG/cm²

Density of maximum power:0-2W/cm²

Tension of guide line:≥80N

Working life:5-10yeas

Tension of welding point:≥20N

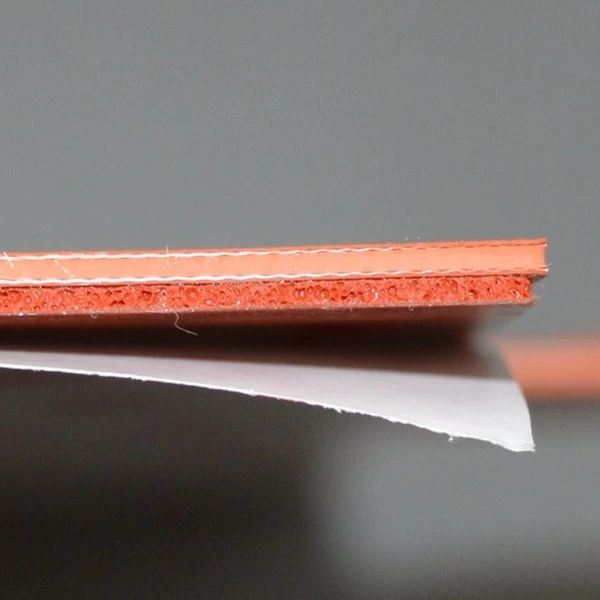

Silicone rubber heater is consist of high thermal conductivity silicone rubber fabric and nichrome. We adopt high temperature resistance, high thermal conductivity and high insulation and strength Silicone rubber, high temperature resistance fabric material as well as softness heating film made of metal heat wire. Each slice is combined by two glass fibre  cloth and two silicone glass fibre  cloth. Swift heating, unit temperature, high heat efficiency, user-friendly, safe and long life silicone rubber heating slice is  the best choice.



Main applications:



1) Thermal transfer equipment;

2) Prevent condensation in motors or instrument cabinets;

3) Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings

4) Composite bonding processes

5) Semiconductor process heating

6) Food processing equipment

7) Airplane engine heaters and aerospace industry

8) Drums and other vessels and viscosity control and asphalt storage

9) Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.

10) Curing of plastic laminates

11) Computer peripherals such as laser printers, duplicating machines

12)EV (electric vehicle) battery heating -our main products

NOTE: All heaters are customized according to customer voltage, size, power and so on.

If you have any other questions,please feel free contact us



As a trustworthy manufacturer, we can assure you for:

Consistent & Uniform quality of products throughout the Merchandise.

Shipments well within the time agreed between us.

Most competitive prices and assuring our products quality.



We can send the sample to you for free, and you can test it.

Pls advise below details when inquire

(1). Type of Heater

(2). Wattage and Voltage

(3). Dimension of the heater

(4). Drawing required for special configuration

(5). Working environment

(6) More information please refer to our company news
