Description

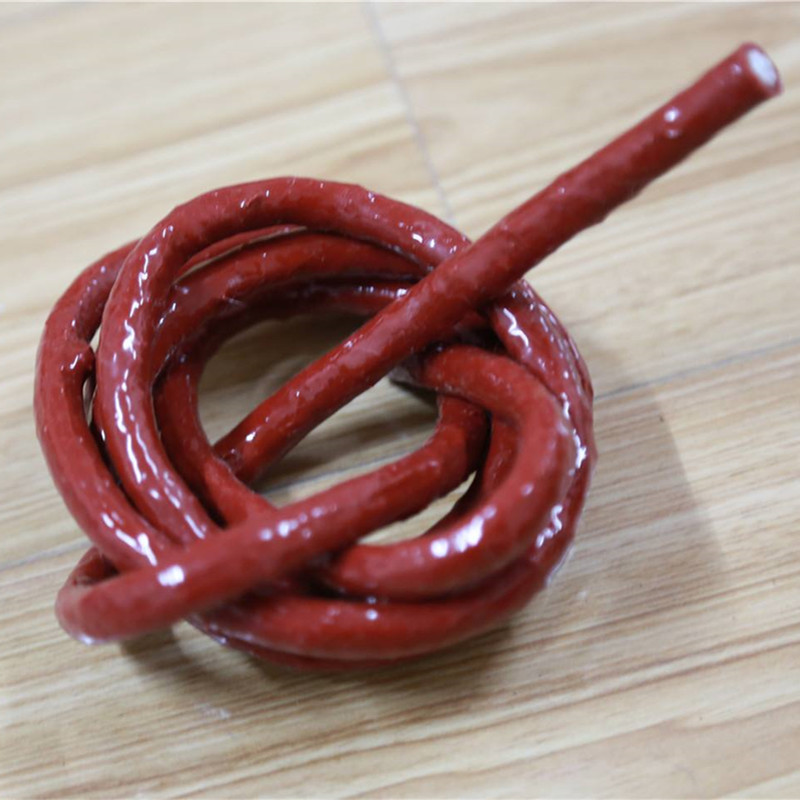

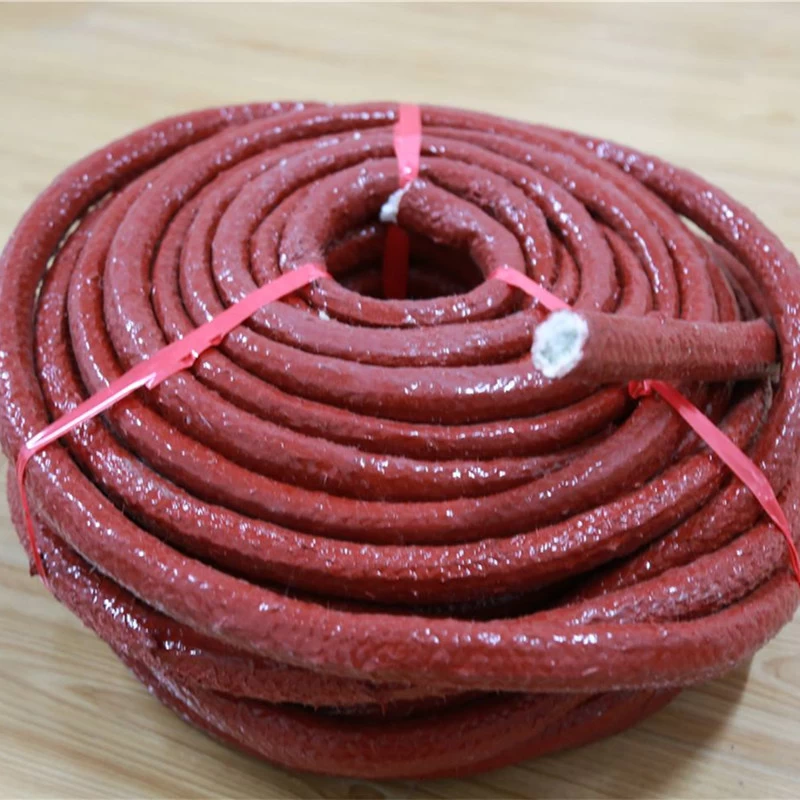

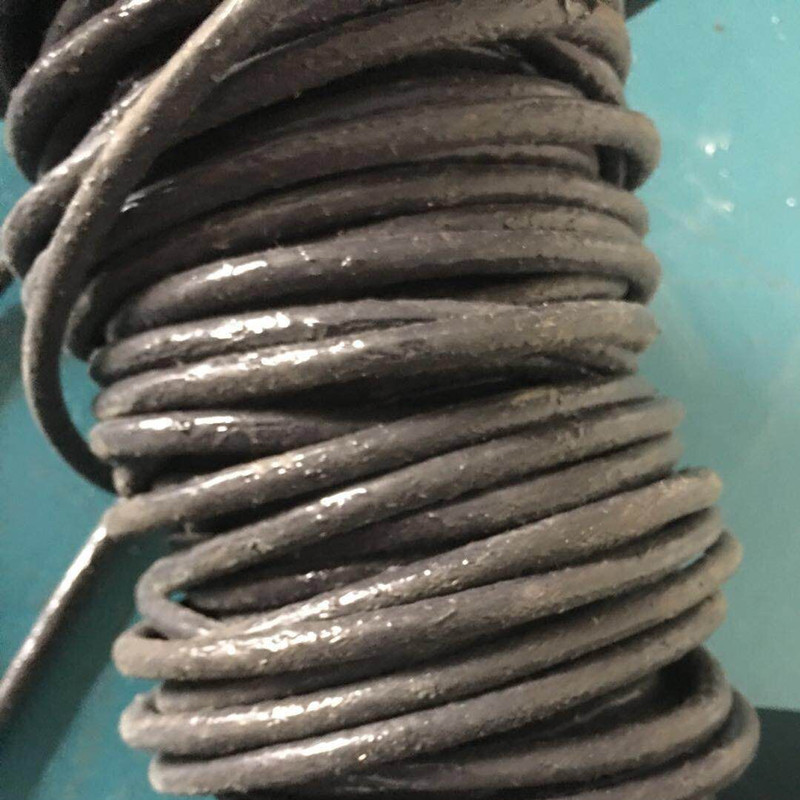

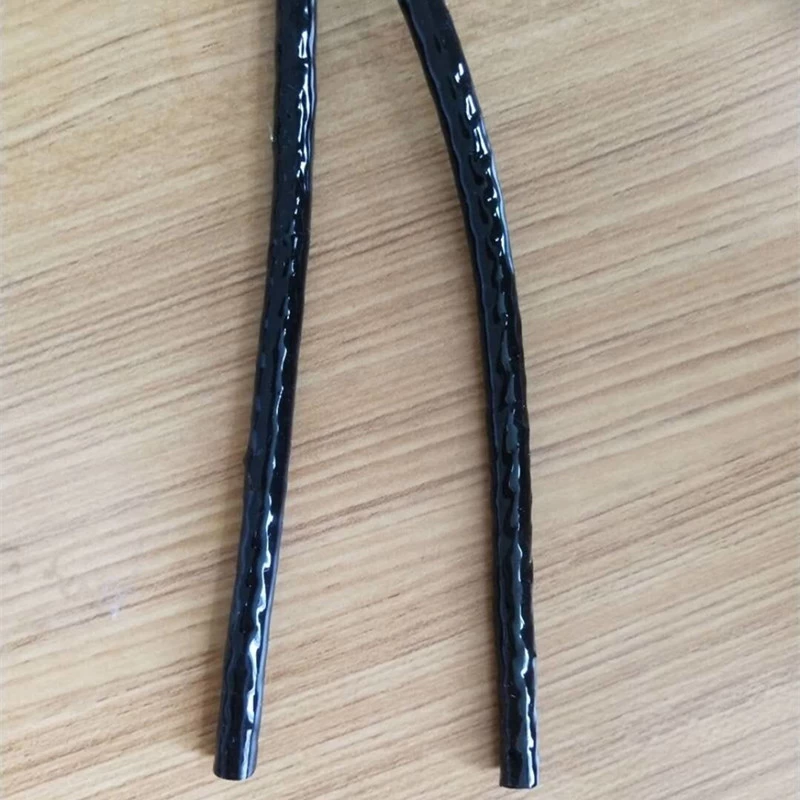

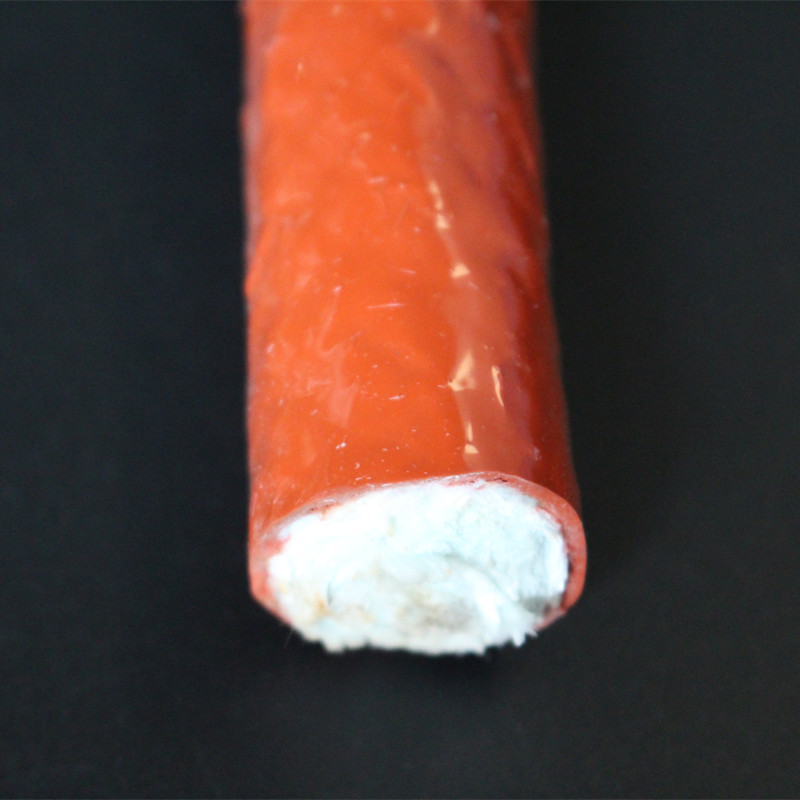

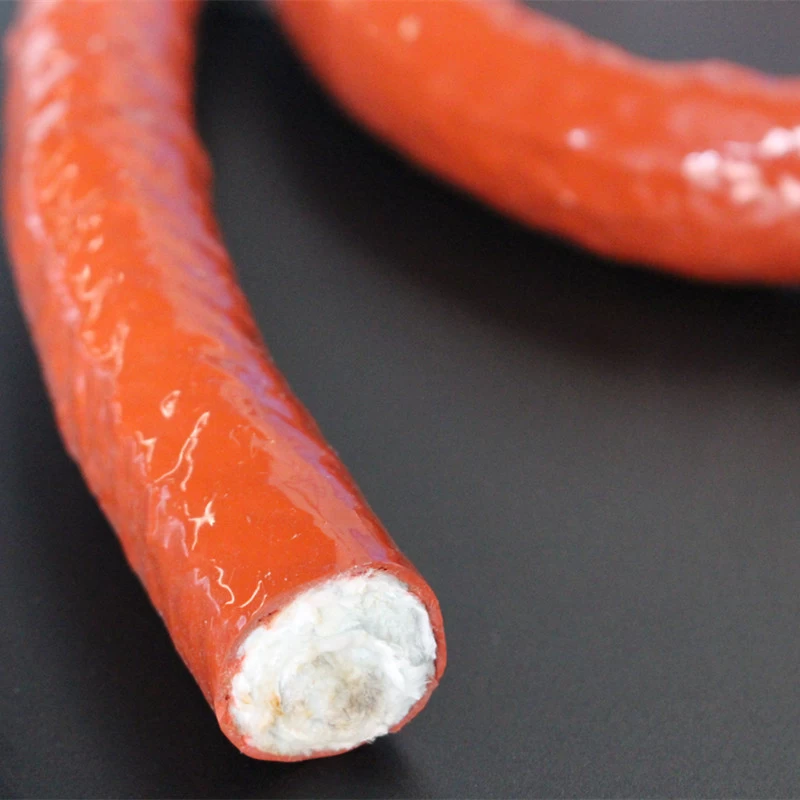

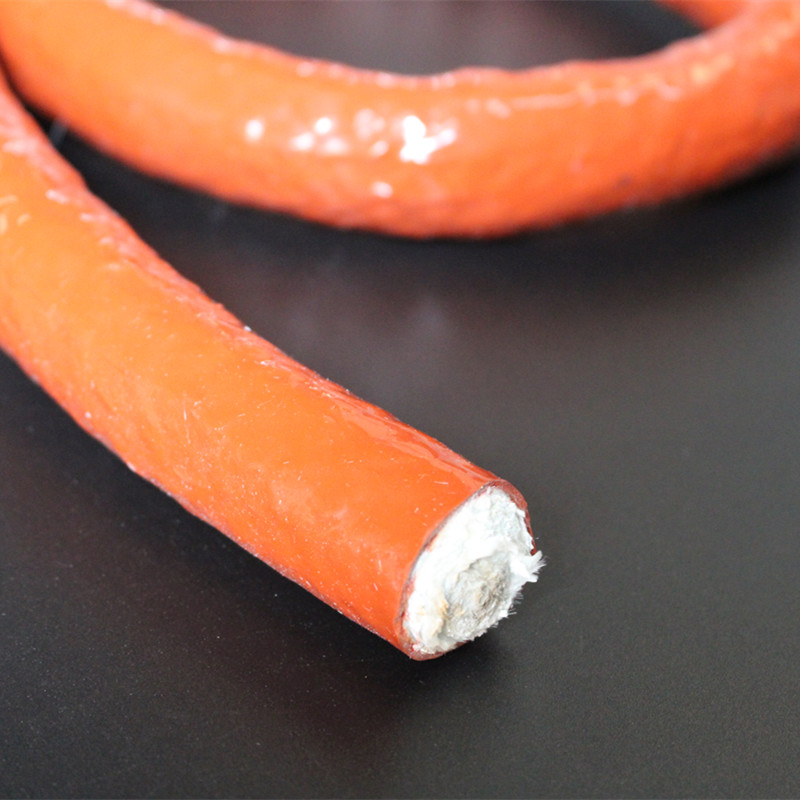

This Silicone Rubber Coated Fiberglass Rope is fabricated from knitted type or braided type E fiberglass and then coated with a high grade high-temperature silicone rubber.This high-temperature rope is most often used as a seal where a high degree of air,gas orliquid tightness is required.In orderto identify the difference,we usually sued red silicone for braided type and black silicone for knitted type,both square and round shapes are available.
Features
Withstands Molten Splash & Welding Splatter.
Withstands 500°F / 260°C continuous exposure;
2200°F / 1205°C for periods up to 15 minutes
short flash excursions to 3000°F / 1650°C.
Application
Seals for boilers, ovens, and stoves as well as high-temperature industrial packing and expansion joints. This high-temperature rope is most often used as a seal where a high degree of air or gas or liquid tightness is required.
Specifications
|
DATASHEET
|
|
Part Number
|
Diameter
|
Weight
|
Meter for spool
|
|
mm
|
g/m
|
Meter
|
|
BFGR-SC-6
|
6
|
35
|
100
|
|
BFGR-SC-8
|
8
|
80
|
100
|
|
BFGR-SC-10
|
10
|
105
|
100
|
|
BFGR-SC-12
|
12
|
140
|
50
|
|
BFGR-SC-15
|
15
|
200
|
50
|
|
BFGR-SC-18
|
18
|
290
|
50
|
|
BFGR-SC-20
|
20
|
340
|
50
|
|
BFGR-SC-25
|
25
|
500
|
30
|
|
BFGR-SC-30
|
30
|
720
|
30
|
|
BFGR-SC-32
|
32
|
820
|
20
|
|
BFGR-SC-35
|
35
|
980
|
20
|
|
BFGR-SC-38
|
38
|
1100
|
15
|
|
BFGR-SC-40
|
40
|
1230
|
15
|
|
BFGR-SC-45
|
45
|
1540
|
10
|
|
BFGR-SC-50
|
50
|
1995
|
10
|
|
Technical Datasheet
|
|
Material
|
Fiberglass, silicone
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+1650℃
|
|
Standard Color
|
Red
|
|
MOQ
|
300 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special size upon request
Special length or packing upon request.
