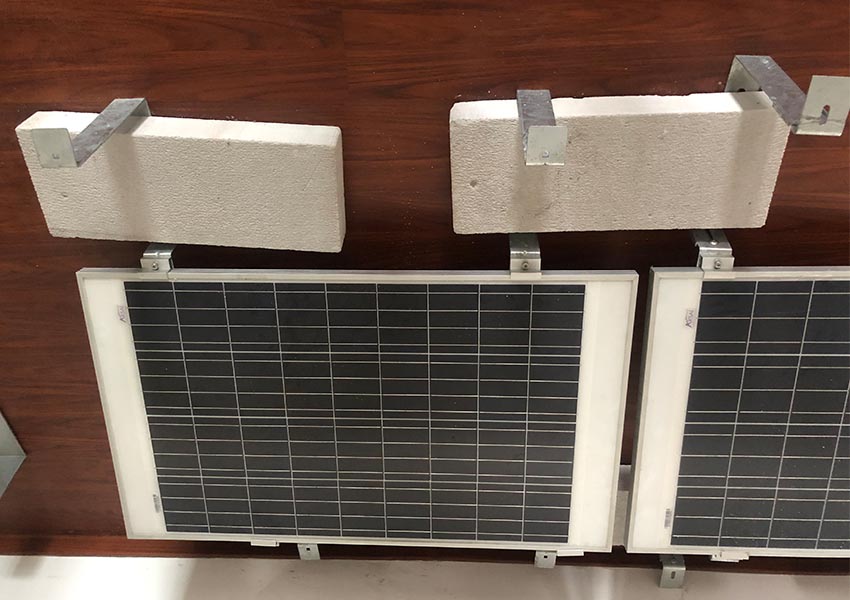

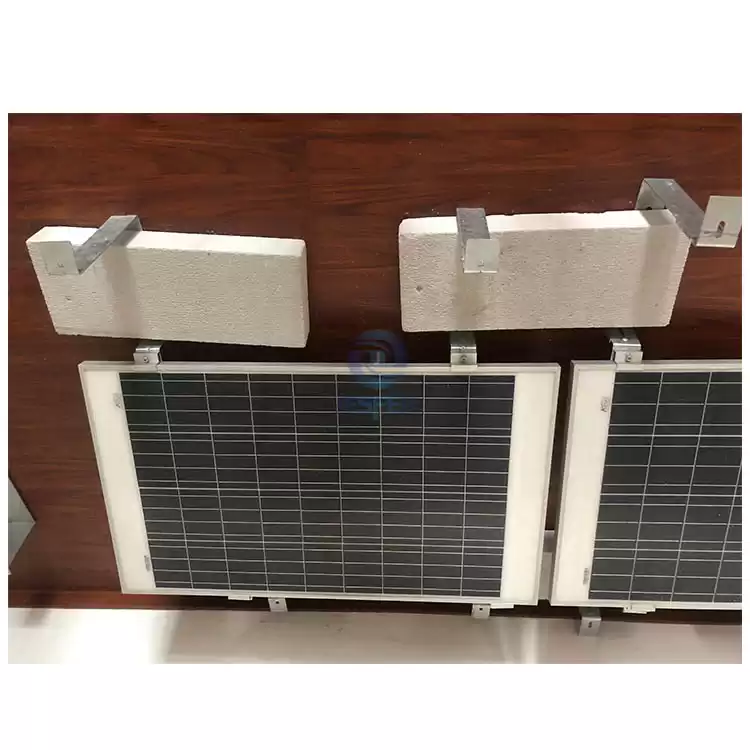

Simple Fixed Cement Solar Ballast Bracket System

Jesfer ballast brackets installation system is widely used in cement flat roofs. We can greatly reduce the installation parts and Can be customized Angle and distance ,in order to ensure no penetration into the roof and no damage to the roof.



PV Structure Roof Solar Ballast Mounting System

The solar roof support ballast bracket system is mainly fixed by cement ballast to achieve strong wind resistancesuitable for both framed and framless module installation.it also can be use for crystalline silicon components of any specification and some thin film components.According to the load condition, flexibly increase or decrease the load frame.


Main Components

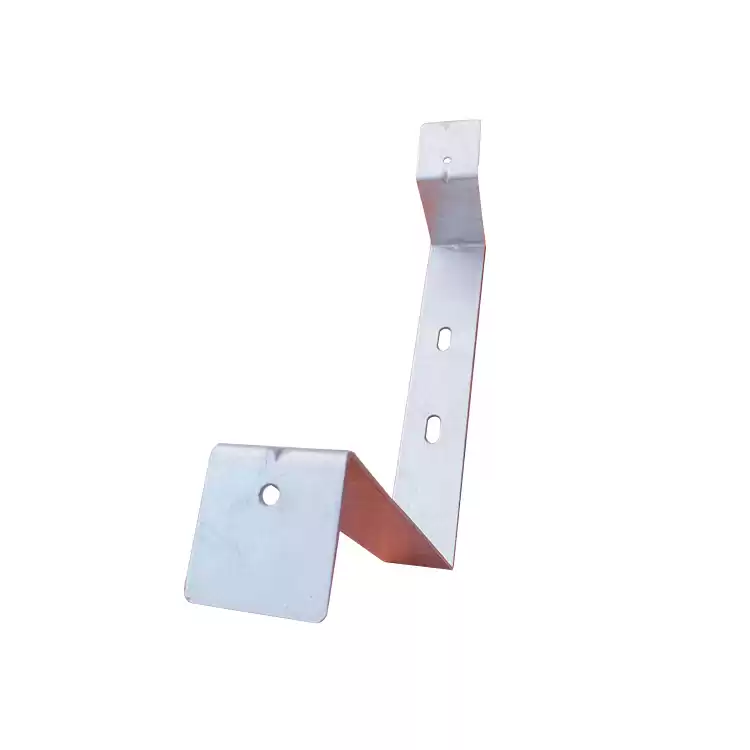

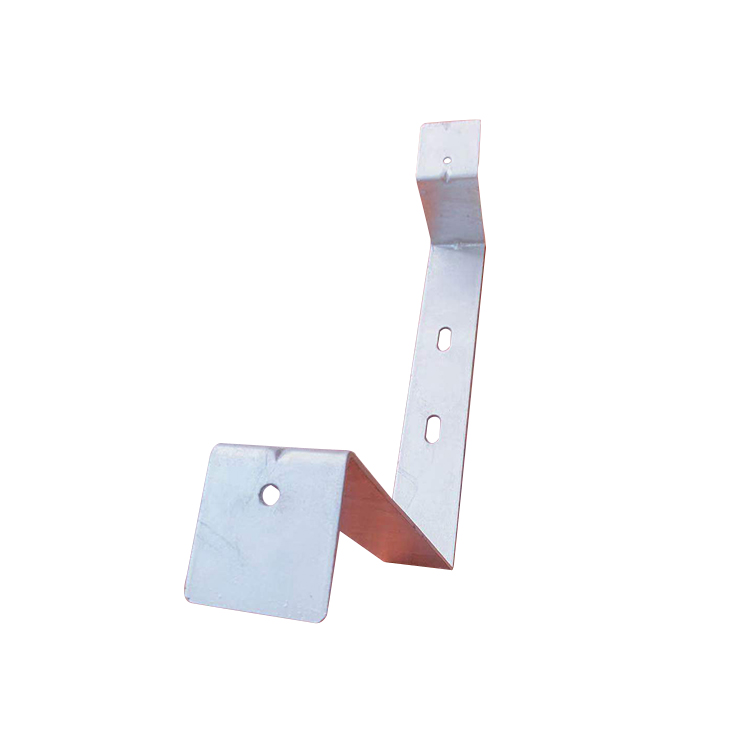

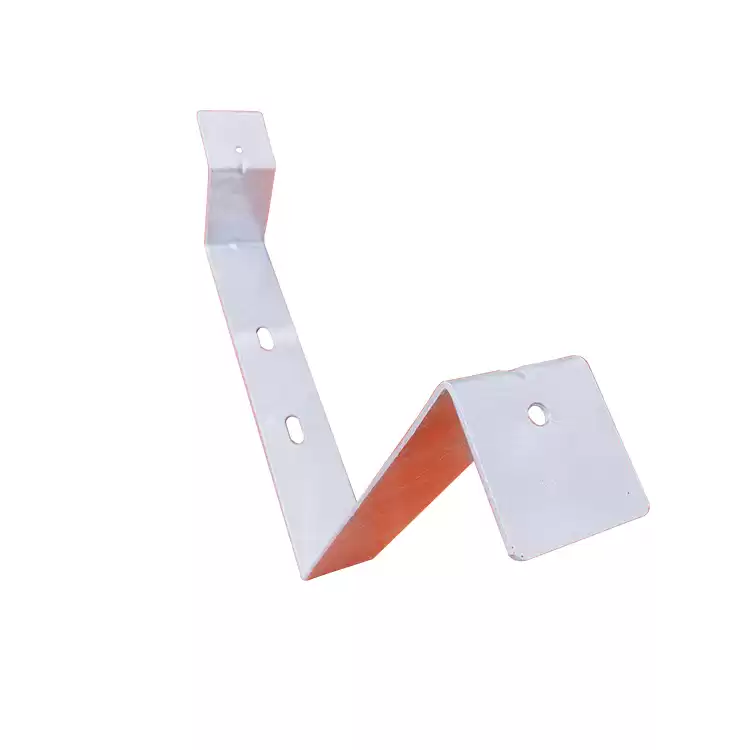

Ballaste Plate

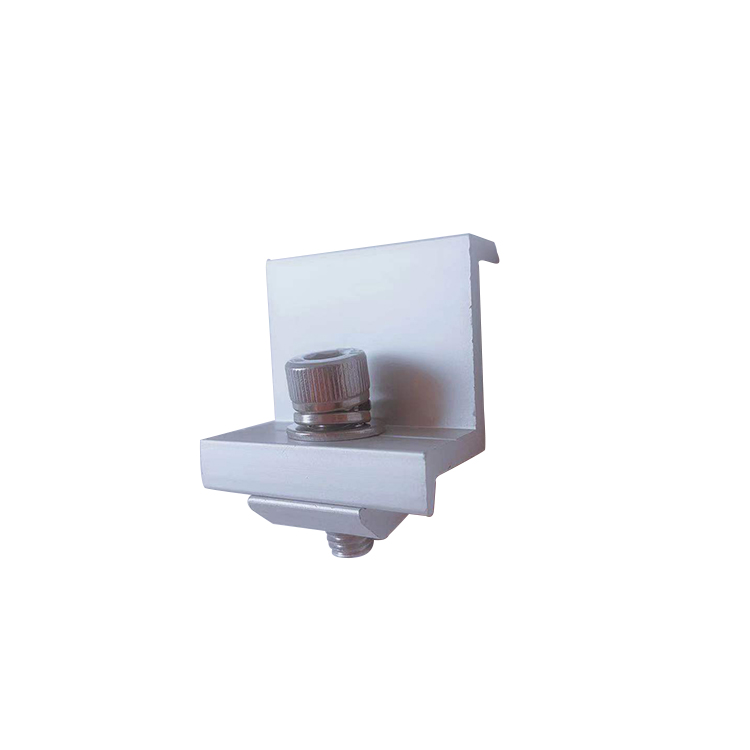

End Clamps Kits

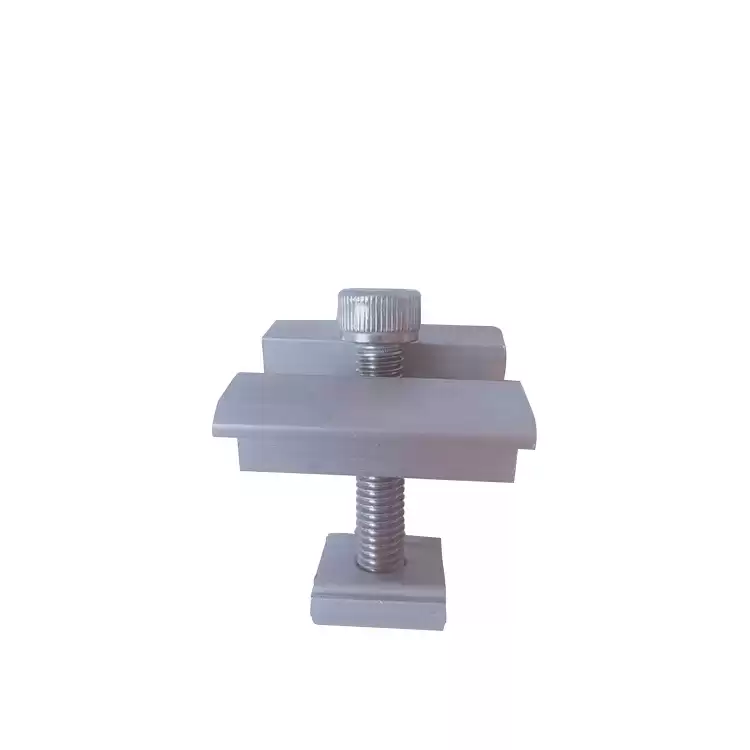

Inter Clamps Kits


Technical Parameters

  System Name
 Solar Ballast Bracket System
 Panel Layout
 Landscape
  Foundation
 Concrete Roof
 Material
 Anodized AL6005-T5
 Tilt Angle
5degree ,10degree
 Fastener
 SUS304 &Zinc-Nickel Alloy Electroplated Steel
 Snow Load
 1.6KN/㎡
 Color
 Customized or Silver
 Wind Load  60m/s  Design Standard
 AN/NZS1170,DIN1055,JIS C8955,etc.
 Applicable Solar Module
 Framed
 Warranty
 10 Years
 Installation Site  Flat Roof ,Ground  Small Components  Anodized AL6005-T5
